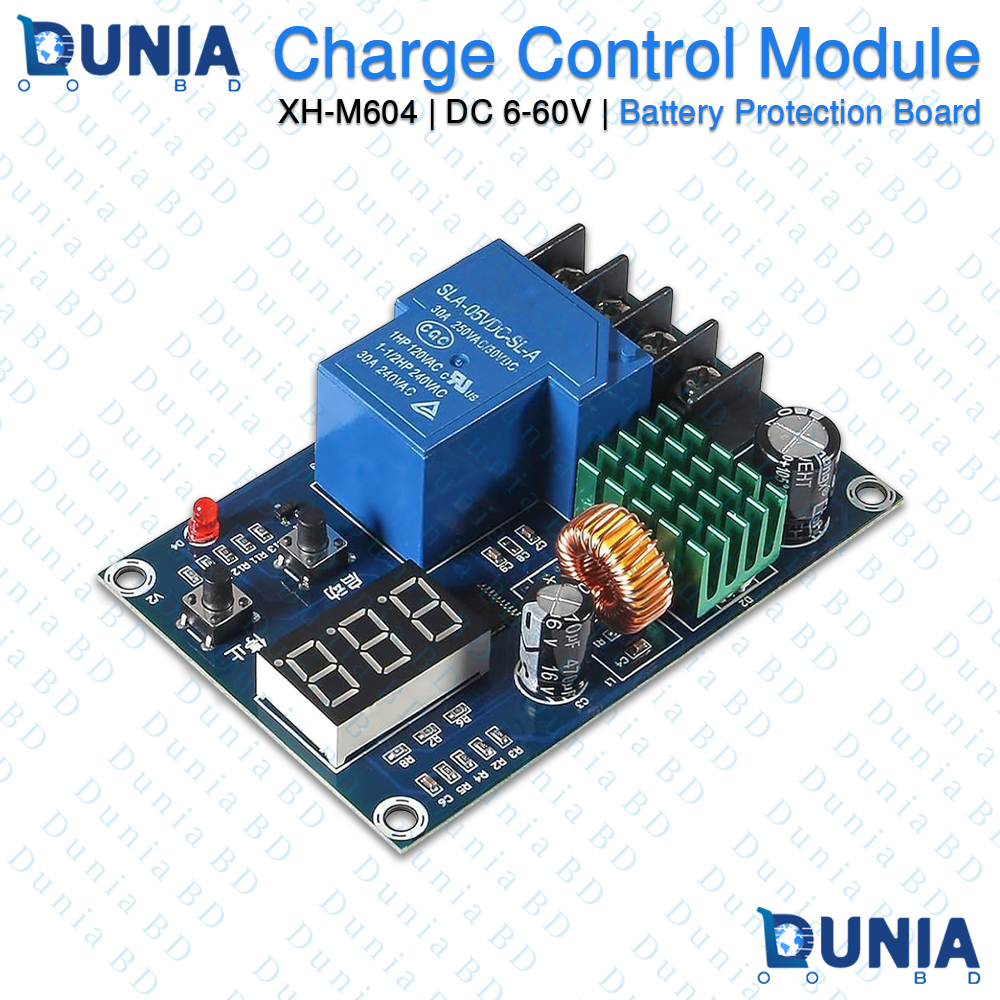

XH-M604 DC 6-60V Battery Storage Charge Control Module

Specifications

• XH-M604 DC 6-60V Battery Storage Charge Control Module
• Model: XH-M604
• Input Voltage Range: DC 6V to 60V
• Display Accuracy: 0.1V
• Control Accuracy: 0.1V
• Output Type: Direct Output (Relay Switch Control)
• Voltage Tolerance: +/- 0.1V
• Relay Specification: SONGLE SLA-05VDC-SL-A (30A 250VAC / 30VDC)
• Application Range: 6V to 60V Storage Batteries / Lithium Batteries
• Display Screen: 3-Digit Red LED Digital Tube
• Control Interface: Tactile Buttons (Start Voltage and Stop Voltage Setting)
• Dimensions: 81mm x 54mm x 18mm

Features

• High-power 30A onboard relay for heavy-duty battery charging control.
• Integrated bright 3-digit LED display for real-time voltage monitoring.
• Precise microcomputer control for customizable start and stop voltage thresholds.
• High-power barrier screw terminal block for secure wire connections.
• Automatic disconnection when battery reaches full charge to prevent overcharging.
• The XH-M604 DC 6-60V Battery Storage Charge Control Module is an intelligent protection board designed to automate battery charging cycles and prevent overcharging damage.
• Equipped with a high-capacity 30A SONGLE relay, single-chip microcomputer control, and a clear 3-digit digital LED voltage display, this module monitors real-time battery voltage continuously.
• Users can easily set specific starting and stopping charge voltage limits using tactile buttons.

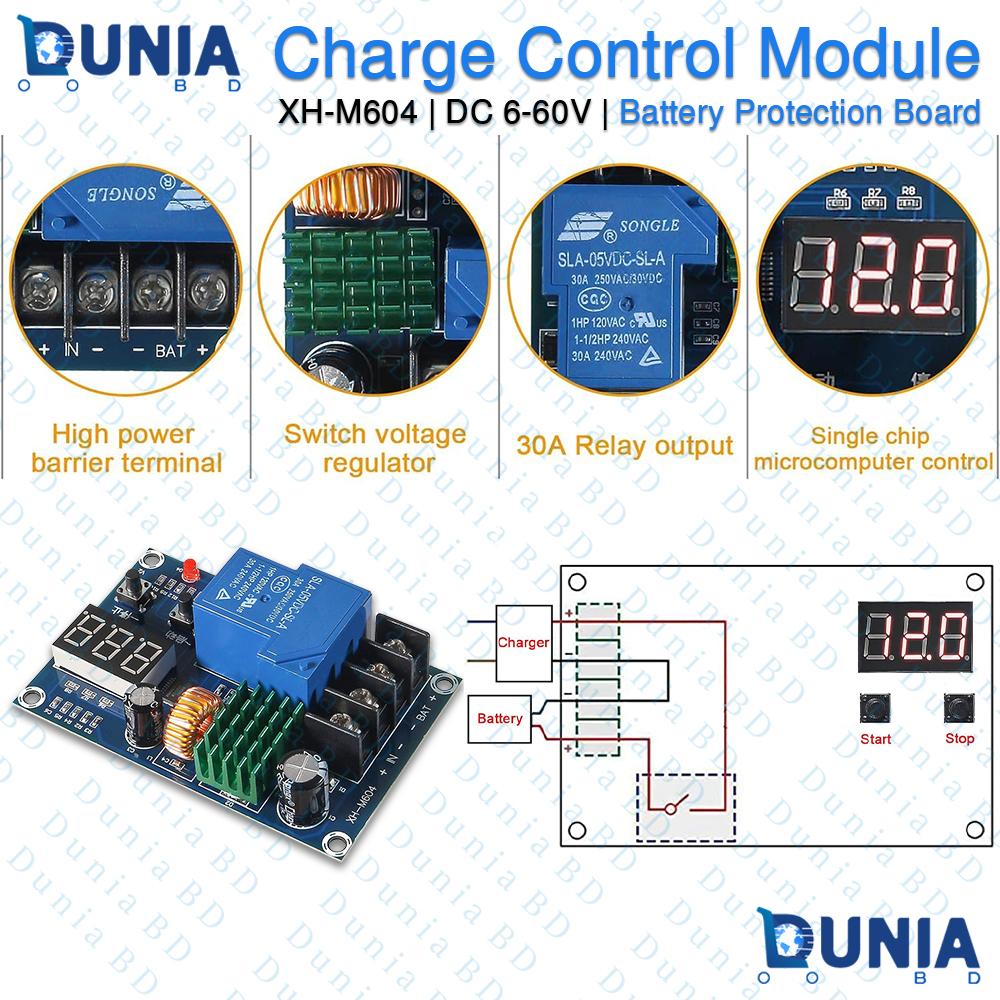

• Once the battery voltage drops to the set minimum threshold, the module triggers the charger ON; when the battery reaches the full upper voltage limit, it automatically switches OFF the charging circuit.
• Compatible with 12V, 24V, 36V, and 48V Lead-Acid, GEL, AGM, Lithium, and LiFePO4 battery packs, it is ideal for solar power setups, inverter systems, and DIY power backup projects.

What is the price of XH-M604 DC 6-60V Battery Storage Charge Control Module in Bangladesh?

The latest price of XH-M604 DC 6-60V Battery Storage Charge Control Module in Bangladesh is Price: ৳380.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy XH-M604 DC 6-60V Battery Storage Charge Control Module in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original XH-M604 DC 6-60V Battery Storage Charge Control Module From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the operating voltage range of the XH-M604 module?
   The operating voltage range of XH-M604 module is DC 6V to 60V.
2. What current capacity can the onboard relay handle safely?
   The high-power relay handles continuous current loads up to 30A.

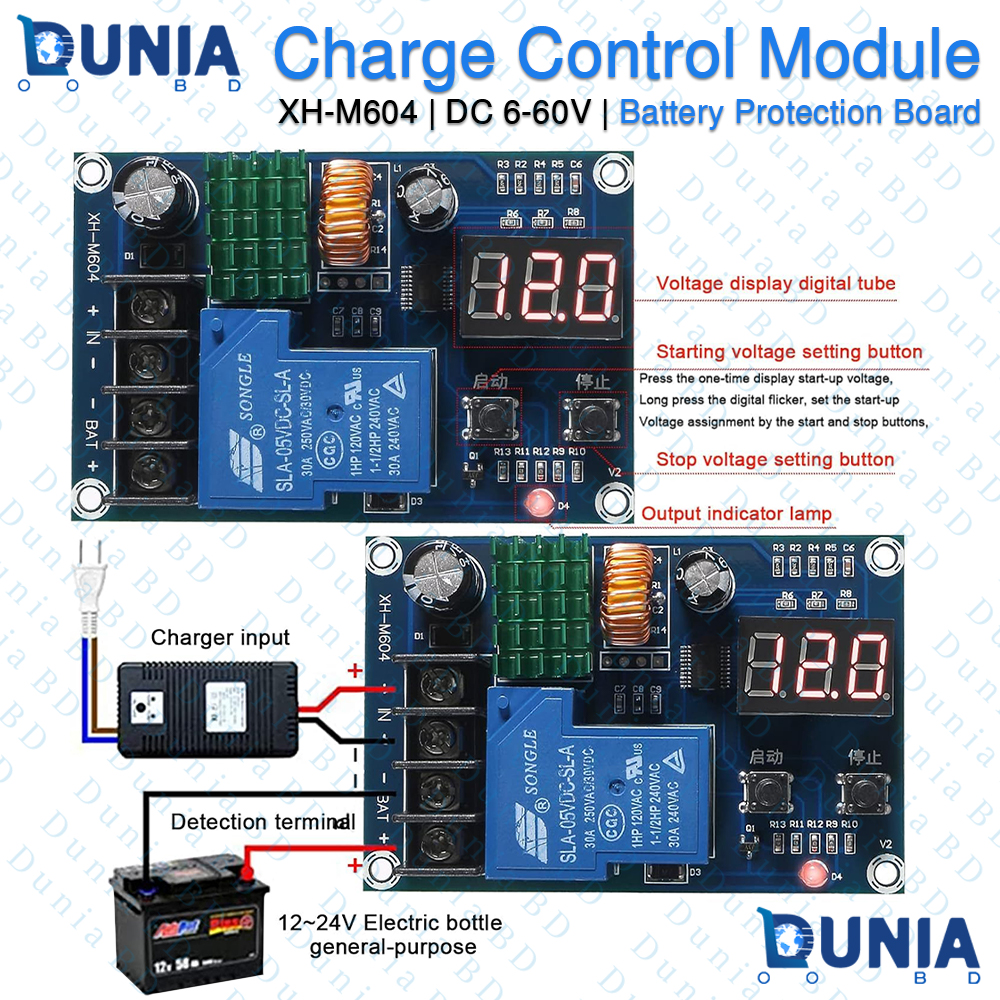

3. How do I set the charging start voltage on this module?
   Long-press the start button until digits flash, then set voltage.
4. How do I set the charging stop voltage on this module?
   Long-press the stop button until digits flash, then adjust voltage value.
5. Can this module protect lithium battery packs from overcharging?
   Yes, it effectively protects both lithium and lead-acid battery packs.
6. Does the module display the live battery voltage during operation?
   Yes, the 3-digit LED tube displays real-time battery voltage levels.
7. What happens when the battery reaches full charge voltage setting?
   The relay opens automatically and disconnects the battery charger input.
8. Is external power needed to run this charge controller board?
   No, it powers itself directly from the connected battery terminals.
9. Does the board feature terminal blocks for heavy wire connections?
   Yes, it features high-power barrier screw terminal connector blocks.
10. Can this control module be used in solar battery chargers?
    Yes, it is ideal for solar power systems and DIY battery setups.
