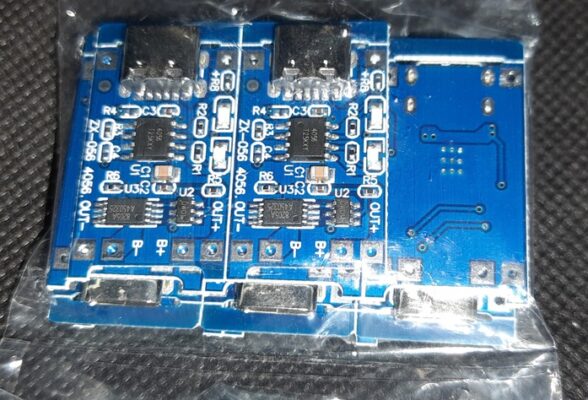

TP4056 Micro USB Type C 5V 1A 18650 Lithium Battery Charger With Protection

100% brand new and high quality
Charge module- Linear charging.
Current- 1A adjustable.
Charge precision- 1.5%.
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.

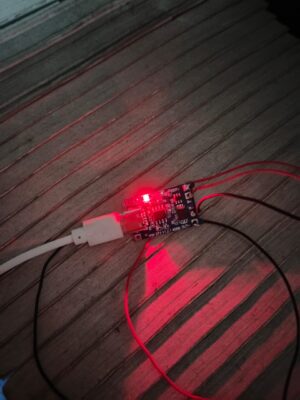

Led indicator- red is charging Green is full charged.
Input interface- micro USB.
Work temperature- -10° to +85°.
Inversed polarity- NO.
Size- small to 25X19X10mm.

The charge should disconnect the load OUT terminal on the positive and negative can not be wrong, please according to specifications, otherwise it will damage directly.

The first time you access the battery, it may no voltage between the output OUT + and OUT-, then access 5V voltage charge your energy can activate the protection circuit, and the battery from the B + B-, then draw a line on the short open also need recharged to activate the protection circuit. Note that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge

+ MICRO USB female and next – pads for the power input, access 5V. B + positive then the lithium battery, B- then negative lithium batteries. OUT + and OUT- connected to the load, such as positive and negative electrodes connected mobile booster plate or other load.

Connect the battery to the B + B-, inserted into the USB female mobile phone charger, the red light is being charged, the green light to full.

NOTE:

1. Ampere meter can only be connected to 5v input end of themodule.

2. It is better that the charging current is 37% of thebattery capacity. If you charge to the battery of 1000mAH, current of 400 isenough.

3. The connection wire should not be too thick.

4. Make sure the connect point is good.

5. If the input voltage is too high, like 5.2v, the currentwill be less than 1000mA, it is normal. It is protection function, auto-substractthe charging current to avoid burn damage to chip.

6. NO Reveral polarity.
