Type-C Fan Control Board 5V 7V 9V 3 Speed Boost Module with Cable

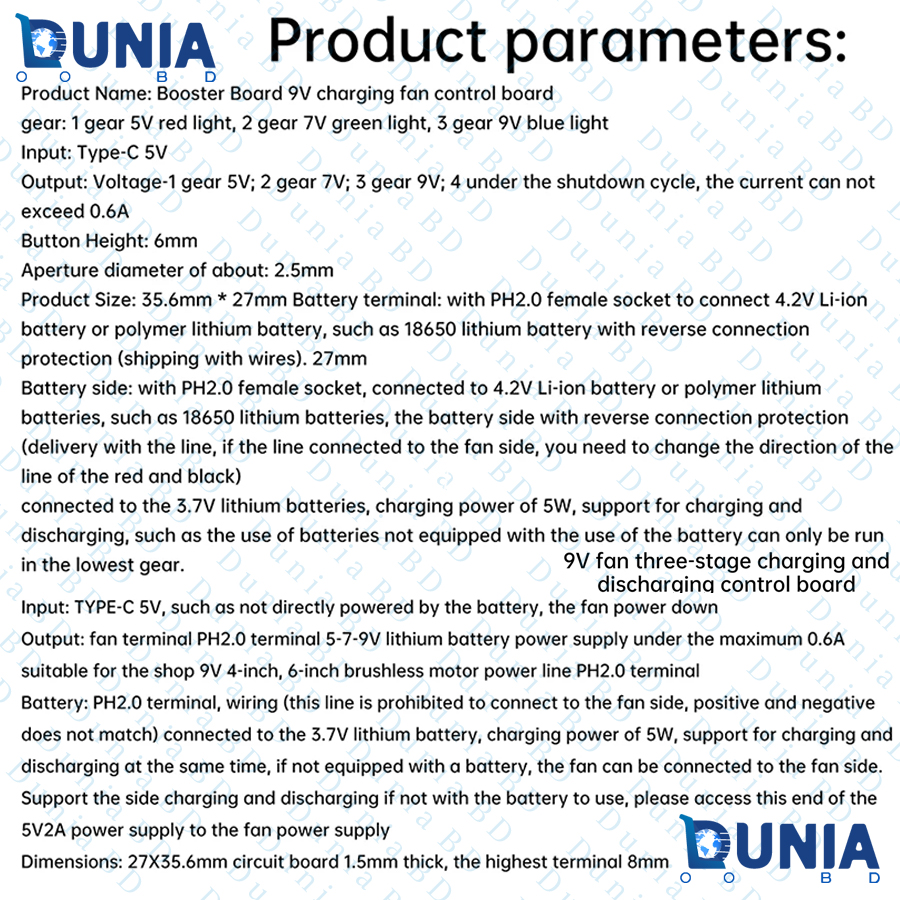

Specifications

• Type-C Fan Control Board is the main speed controller unit of this setup.
• Product Name: Type-C Fan Control Board / 3 Speed Boost Module

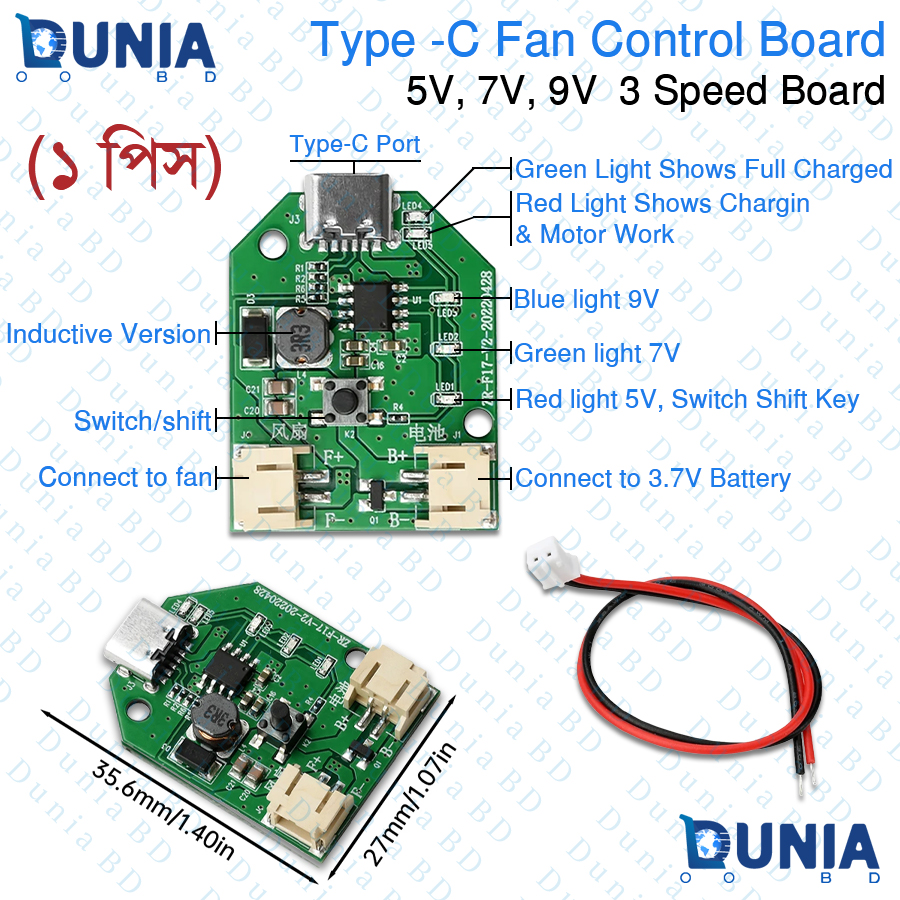

• PCB Model Number: ZR-F17-V2-20220428
• Input Interface Port: Type-C USB Port
• Compatible Battery Supply: 3.7V Lithium Battery (Connected via B+ and B- terminals)
• Speed Voltage Levels: 3 Speed Levels (Red Light = 5V, Green Light = 7V, Blue Light = 9V)
• Status Indicator LEDs: LED4 (Green = Fully Charged), LED5 (Red = Charging & Motor Work)
• Hardware Circuit Version: Inductive Boost Version
• Control Interface Type: Integrated Single Key Switch/Shift Key
• PCB Module Width: 35.6mm (1.40 Inches)
• PCB Module Height: 27mm (1.07 Inches)

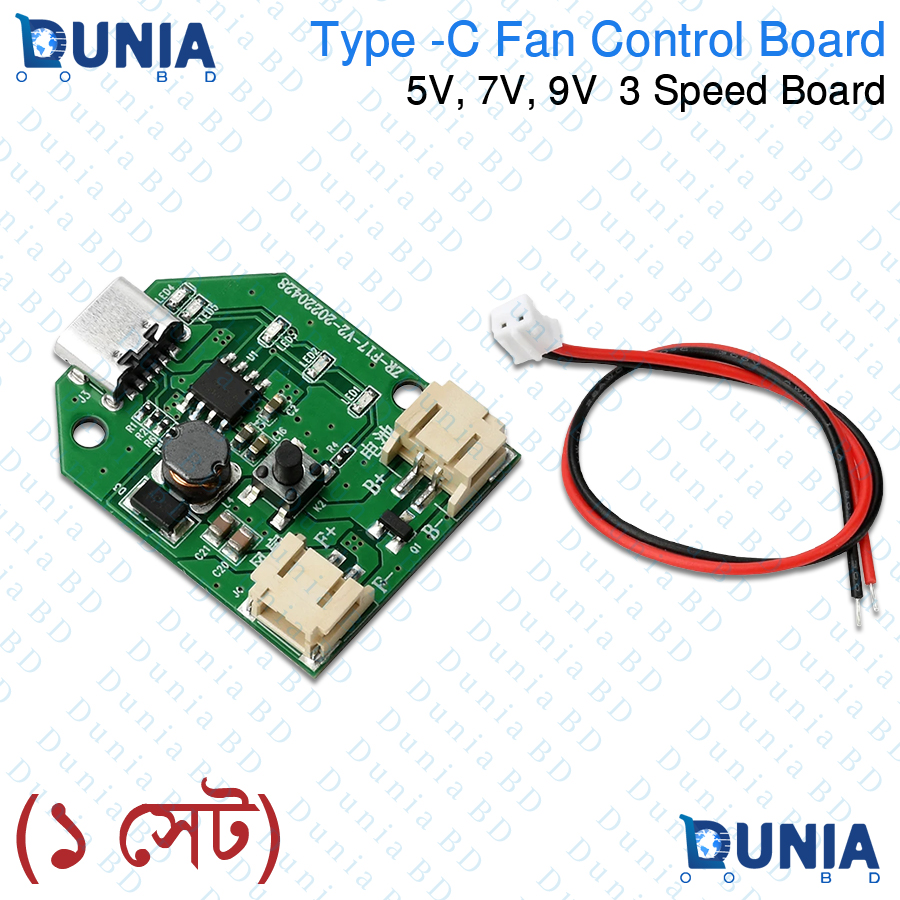

• Package Included Accessories: 1 Piece Speed Controller Board + 1 Piece Connecting Terminal Cable Wire Set
• Quantity: 1 Set

Features

• Efficient step-up inductive boost converter ensures stable multi-stage voltage delivery.
• Universal Type-C interface provides fast connection compatibility with modern power bricks.
• Multi-color LED channels display battery charging status and selected speed thresholds clearly.
• Compact lightweight board architecture accommodates small DIY portable mini handheld cooling cases.
• Single-button tactile arrangement makes manual system toggling and gear switching seamless.
• The Type-C Fan Control Board 5V 7V 9V 3 Speed Boost Module with Cable is an advanced, high-efficiency electronic step-up regulator solution designed specifically for managing multi-stage handheld cooling devices, DIY battery-operated projects, and smart portable equipment.
• Built on a robust inductive boost architecture, this miniature circuit module safely converts a standard 3.7V Lithium battery input into three highly distinct, user-selectable speed voltage outputs: 5V (indicated by a red light), 7V (green light), and 9V (blue light).
• Equipped with a modern, high-durability Type-C USB interface port, the board provides seamless charging capabilities alongside visual tracking LEDs that denote active charging states and completion thresholds.
• Measuring just 35.6mm by 27mm, it packs dedicated dual-port physical sockets for both direct fan wire output and battery cell integration.
• Ideal for technicians renewing worn-out pocket fans or hobbyists developing rechargeable backup accessories, this premium module guarantees long-lasting thermal protection, stable continuous current drive, and optimal operational efficiency.

What is the price of Type-C Fan Control Board 5V 7V 9V 3 Speed Boost Module with Cable 1Set in Bangladesh?

The latest price of Type-C Fan Control Board 5V 7V 9V 3 Speed Boost Module in Bangladesh is Price: ৳125.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Type-C Fan Control Board 5V 7V 9V 3 Speed Boost Module with Cable 1Set in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original Type-C Fan Control Board 5V 7V 9V 3 Speed Boost Module From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What input port type is used on this multi-stage speed booster circuit?
   This modern handheld controller utilizes a high-durability Type-C USB port for modern power cable integration.
2. What voltage outputs correspond to the three speed adjustment steps?
    The board changes gear cycles systematically through 5V, 7V, and 9V output levels.
3. How does a user track the current speed gear selection visually?
   Built-in LEDs identify gears easily: Red represents 5V, Green marks 7V, and Blue represents 9V.
4. What style of power battery is compatible with these circuit terminals?
   The board structure connects smoothly with any standard rechargeable 3.7V Lithium-ion cell battery.
5. What do the charging indicator lights signify during power delivery?
   A solid Red LED signals current active charging or motor work, while Green signals a full capacity charge.
6. What are the absolute physical dimensions of this controller PCB card?
   The space-saving miniature controller board has a width profile of 35.6mm and a height profile of 27mm.
7. Does this package supply any attachment wires along with the controller?
   Yes, each ordered set delivers one circuit board alongside a separate two-wire terminal connection cable.
8. How is the speed changing command executed on this module?
   Adjustments are managed through a single integrated tactile onboard switch/shift key.
9. Is this an inductive conversion version or a traditional linear drop circuit?
   This board features an inductive version architecture that provides high step-up conversion performance.
10. Is it possible to deploy this board to control other 5V to 9V micro DC hardware?
    Yes, it works well with a variety of low-draw micro DC electronics needing multi-step voltage boosts.
