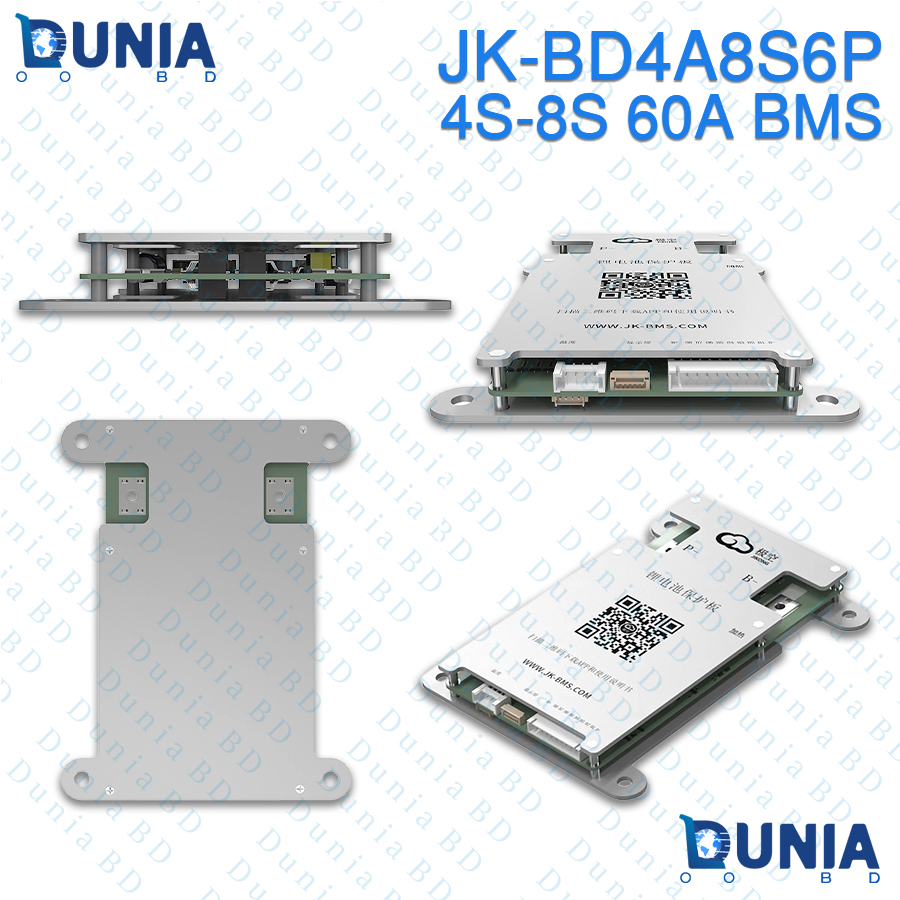

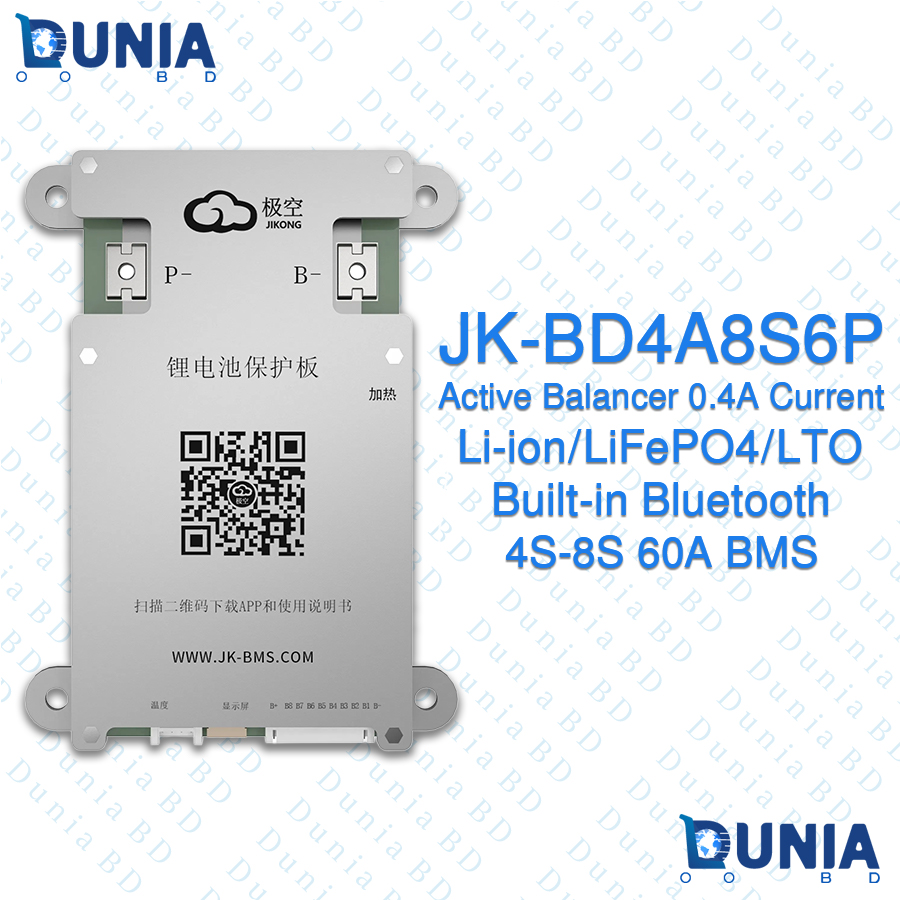

JK-BD4A8S6P 4S-8S 60A Smart Active Balancer BMS with Bluetooth

Specifications

• JK-BD4A8S6P 4S-8S 60A Smart Active Balancer BMS with Bluetooth
• Product Model: JK-BD4A8S6P
• Supported Series: 4S to 8S (LiFePO4), 3S to 8S (Li-ion), 6S to 8S (LTO)
• Continuous Charge/Discharge Current: 60A
• Peak Discharge Current: 100A (up to 2 minutes)
• Active Balancing Current: 0.4A
• Balancing Method: Active Energy Transfer Balance (Full State On)
• Single Cell Voltage Range: 1V to 5V
• Voltage Acquisition Accuracy: ±5mV
• Main Circuit Conductive Resistance: 0.5mΩ
• Overcharge Protection Voltage: 1.2V to 4.35V (Adjustable)
• Overdischarge Protection Voltage: 1.2V to 4.35V (Adjustable)
• Overcurrent Protection Delay: 2s to 120s (Adjustable)
• Communication Interfaces: Built-in Bluetooth, RS485, CAN, Heating Interface
• App Compatibility: Android, iOS, HarmonyOS via JIKONG Smart BMS App
• Wiring Port Type: Common Port for Charging and Discharging
• Coulomb Counter: Integrated high-precision SOC calculation
• Temperature Sensors: 1 x External NTC Temperature Sensor
• Dimensions: 153.9mm x 87mm x 17.6mm
• Shell Construction: Heavy-duty Aluminum Alloy Enclosure

Features

• Active Energy Transfer Balancer: Equipped with an active 0.4A balancing circuit that actively transfers power between cells to equalize voltage levels without heat loss.
• Smart Wireless Monitoring: Built-in Bluetooth functionality enables easy pairing with the JIKONG smartphone application for live cell voltage readings, status checks, and parameter adjustments.
• Multi-Chemistry Compatibility: Broad support for 4S to 8S LiFePO4, 3S to 8S Li-ion, and 6S to 8S LTO battery bank configurations.
• Continuous 60A Power Handling: Supports sustained 60A charge and discharge currents with peak surge capability up to 100A for heavy-duty power demands.
• Configurable Safety Protections: Full protection against overcharging, overdischarging, overcurrent, short circuits, and thermal risks with customizable thresholds.
• Durable Heat-Sink Enclosure: Built into an aluminum alloy protective shell that ensures structural strength and optimal thermal management.
• The JK-BD4A8S6P 4S-8S 60A Smart Active Balancer BMS with Bluetooth is a high-performance battery management system designed for solar power storage, electric vehicles, and custom lithium battery banks.
• Featuring active energy-transfer balancing technology, it continuously equalizes battery cells with a 0.4A balance current to preserve battery capacity and extend overall operational life.
• With its integrated Bluetooth module, users can real-time track individual cell voltages, monitor SOC with the accurate Coulomb counter, and customize protection settings directly from a smartphone.
• Housed in a sturdy aluminum heat-sink casing with 60A continuous output support, it offers complete safety for LiFePO4, Li-ion, and LTO lithium setups.

What is the price of JK-BD4A8S6P 4S-8S 60A Smart Active Balancer BMS with Bluetooth in Bangladesh?

The latest price of JK-BD4A8S6P 4S-8S 60A Smart Active Balancer BMS with Bluetooth in Bangladesh is Price: ৳3,905.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy JK-BD4A8S6P 4S-8S 60A Smart Active Balancer BMS with Bluetooth in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original JK-BD4A8S6P 4S-8S 60A Smart Active Balancer BMS with Bluetooth From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is JK-BD4A8S6P continuous current output capacity?
   It supports 60A continuous charge and discharge current with 100A peak discharge surge capacity.
2. How does the active balancer function in this model?
   It actively transfers energy between battery cells at 0.4A current to balance cell voltages smoothly.
3. Does JK-BD4A8S6P include built-in Bluetooth communication?
   Yes, it features integrated Bluetooth for wireless monitoring and setting updates via smartphone application.
4. Which battery chemistries can be used with JK-BD4A8S6P?
   It is fully compatible with LiFePO4, Lithium-ion, and Lithium Titanate (LTO) battery chemistry types.
5. What cell series configuration range does it support?
   It supports 4S to 8S LiFePO4, 3S to 8S Li-ion, and 6S to 8S LTO battery configurations.
6. Are protection parameters customizable by the user?
   Yes, all voltage, current, and delay settings can be manually adjusted via app software.
7. Is thermal protection included in this BMS?
   Yes, it comes with an external NTC sensor for accurate battery temperature tracking.
8. Is this BMS compatible with 12V and 24V solar battery systems?
   Yes, it works perfectly with 4S 12.8V and 8S 25.6V solar energy storage systems.
9. What type of wiring port configuration does it feature?
   It utilizes a single common port for both charging and discharging connections.
10. What items are included in the original packaging?
    The package includes BMS board, voltage sampling wiring harness, NTC temperature sensor, and switch wire.
