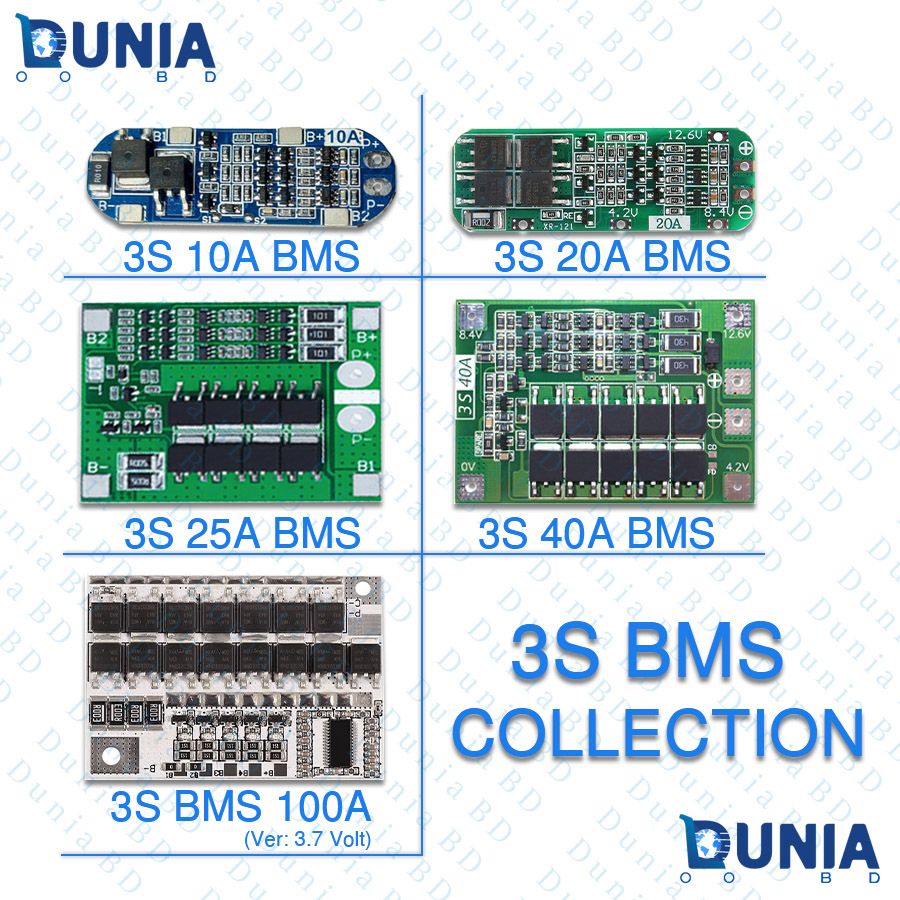

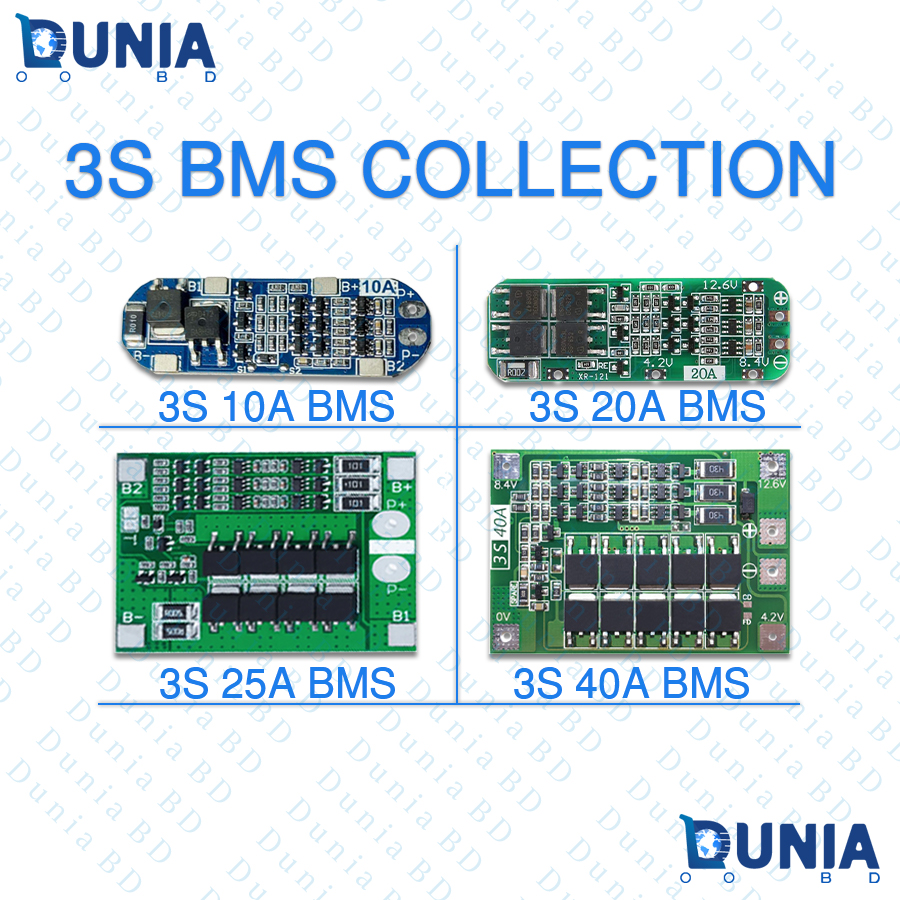

BMS 3S 10A 20A 25A 40A 11.1-12.6V 18650 Lithium Battery Charging Protection Board Module

৳71.00 – ৳148.00

3S 10A BMS (Balanced)
3S 20A BMS (Auto Recovery)
3S 25A BMS (Balanced)
3S 40A BMS (Balanced)

Ampere

SKU: N/A Category: Controller Module Tags: 3S BMS, BMS

3S 10A BMS (Balanced)	3S 20A BMS (Auto Recovery)	3S 25A BMS (Balanced)	3S 40A BMS (Balanced)
Color: ‎Multicolor Number of Memory Sticks: ‎1 Product Dimensions: 25x20x5cm Item model number: ‎BMS 3S 10A Item Height: 5 Centimeters Item Width: ‎20 Centimeters Weight: 3g	Charging Voltage: 12.6V-13V Overcharge Voltage Range: 4.25V-4.35V # 0.05V Overpressure Voltage Range: 2.3V-3.0V # 0.05V Upper Limit Operating Current: 5A-6A Upper Limit Instantaneous Current: 10A Quiescent Current: less than 30uA Internal Resistance: less than 45m ohm Effective Life: more than 50.000 hours Operating Temperature: -40- +50 degrees Storage Conditions: -40- +80 degrees 3S 11.1V 12.6V 6A 18650 lithium battery protection board (comes with recovery function-AUTO	Overcharge voltage range: 4.25-4.35v±0.05v Size: 56454.0mm Over Discharge voltage range: 2.3-3.0v±0.05v Upper working current: 20-25A (pay attention to heat dissipation) Operating temperature: -40—+50°C Upper limit instant current: 35-40A Storage condition: -40– +80°C Static current: less than 30uA Effective life: more than 30,000 hours Internal resistance: less than 100mQ Short circuit protection: can be protected, delaying self-recovery. Balance current: 45 MA Charging voltage: 12.6V-13V Description of test point: P+ P- will output voltage if S1 and S2 are short-circuited, indicating that all MOS protection is normal. Adding a normally open temperature detection can expand the temperature protection effect.	3S 12.6V 40A lithium battery protection board Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650, 26650, polymer lithium battery) Product Size: 42 * 55 * 3.4mm (Enhanced Version), 42 * 60 * 3.4mm (Balanced version) Product weight: 8.8g (enhanced version), 9.8g (balanced version) Charging voltage: 12.6V – 13.6V Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use) Continuous charge current (upper limit): 20A
