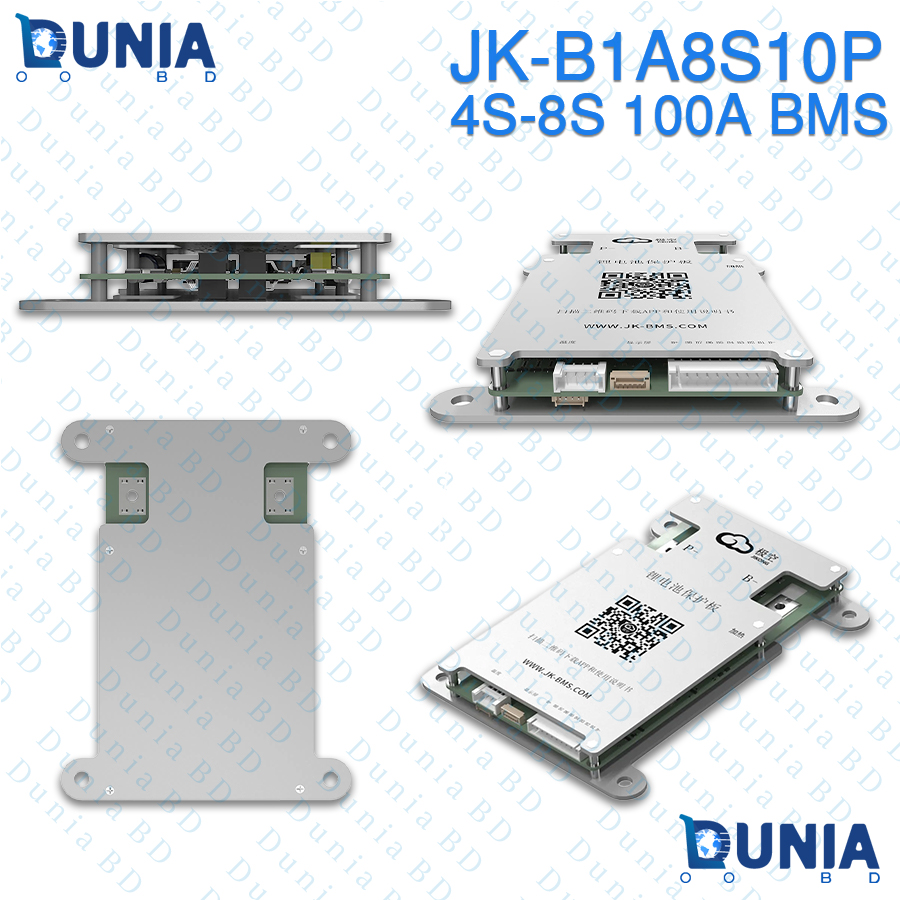

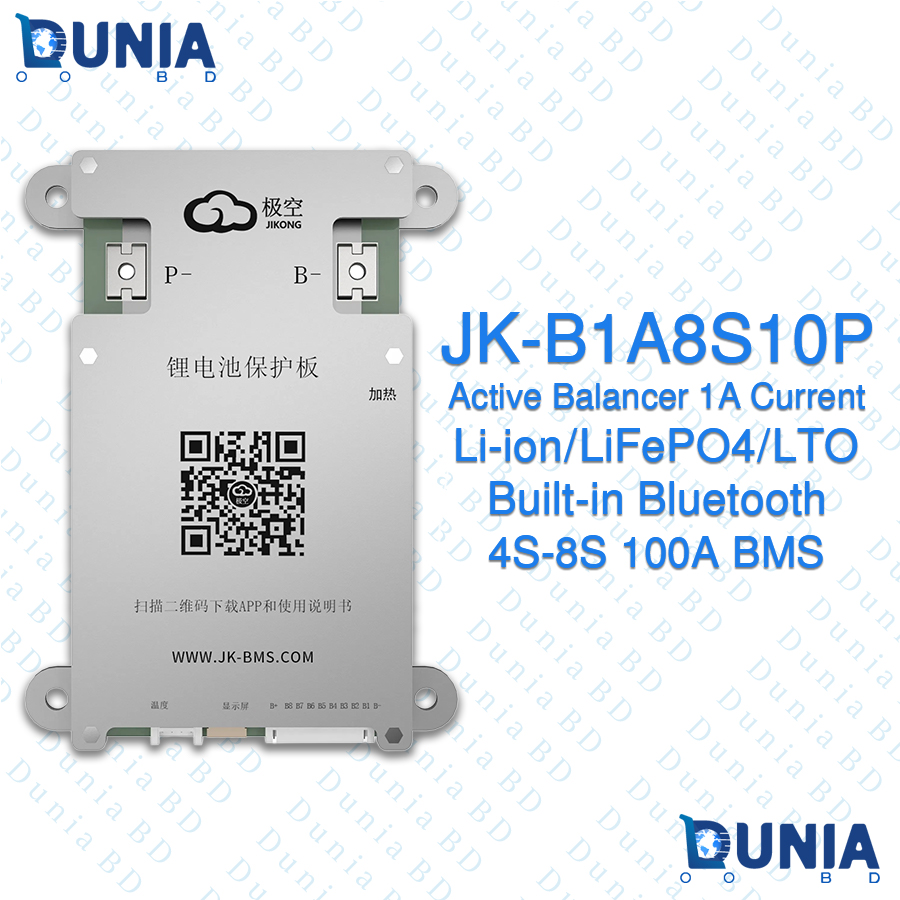

JK-B1A8S10P 4S-8S 100A Smart Active Balancer BMS with Bluetooth

Specifications

• JK-B1A8S10P 4S-8S 100A Smart Active Balancer BMS with Bluetooth
• Product Model: JK-B1A8S10P
• Supported Series: 4S to 8S (LiFePO4), 3S to 8S (Li-ion), 6S to 8S (LTO)
• Continuous Charge/Discharge Current: 100A
• Peak Discharge Current: 200A (up to 2 minutes)
• Active Balancing Current: 1A
• Balancing Method: Active Energy Transfer Balance (Full State On)
• Single Cell Voltage Range: 1V to 5V
• Voltage Acquisition Accuracy: ±5mV
• Main Circuit Conductive Resistance: 0.3mΩ
• Overcharge Protection Voltage: 1.2V to 4.35V (Adjustable)
• Overdischarge Protection Voltage: 1.2V to 4.35V (Adjustable)
• Overcurrent Protection Delay: 2s to 120s (Adjustable)
• Communication Interfaces: Built-in Bluetooth, RS485, CAN, Heating Interface
• App Compatibility: Android, iOS, HarmonyOS via JIKONG Smart BMS App
• Wiring Port Type: Common Port for Charging and Discharging
• Coulomb Counter: Integrated high-precision SOC calculation
• Temperature Sensors: 1 x External NTC Temperature Sensor
• Dimensions: 153.9mm x 87mm x 17.6mm
• Shell Construction: Heavy-duty Aluminum Alloy Enclosure

Features

• Active Energy Transfer Balancer: Unlike traditional passive balancers that waste energy as heat, the JK-B1A8S10P features active 1A balancing that transfers charge between high and low voltage cells continuously to maximize pack efficiency.
• Smart Wireless Monitoring: Built-in Bluetooth module connects seamlessly to the JIKONG app on Android and iOS devices, enabling real-time voltage monitoring, individual cell state tracking, parameter adjustments, and firmware updates.
• Universal Battery Compatibility: Supports versatile 4S to 8S lithium pack configurations across multiple battery chemistries including LiFePO4, Lithium-ion, and LTO.
• High Current Handling: Built to handle continuous working currents of up to 100A with peak surge capacity reaching 200A for demanding high-drain applications.
• Robust Multi-Layer Safety Protections: Fully integrated protection suite featuring adjustable overcharge, overdischarge, overcurrent, short circuit, and high/low temperature cut-off parameters.
• Durable Thermal Design: Encapsulated in a robust aluminum alloy heat-sink shell designed for effective heat dissipation and mechanical shock protection.
• The JK-B1A8S10P 4S-8S 100A Smart Active Balancer BMS with Bluetooth is an advanced battery management solution engineered for high-performance solar energy storage, electric vehicles, and custom DIY lithium battery builds.
• Operating on active energy-transfer balancing technology, this unit actively shifts power from higher-voltage cells to lower-voltage cells with up to 1A continuous balance current, ensuring uniform cell capacities without excessive heat generation.
• Equipped with high-precision voltage sensing and integrated Bluetooth connectivity, users can easily monitor real-time cell parameters, system status, temperature readings, and Coulomb counter SOC levels through a smartphone app.
• Designed with a durable aluminum shell and supporting up to 100A continuous load with 200A surge capability, it guarantees total protection and prolonged lifespan for your LiFePO4, Li-ion, and LTO battery systems.

What is the price of JK-B1A8S10P 4S-8S 100A Smart Active Balancer BMS with Bluetooth in Bangladesh?

The latest price of JK-B1A8S10P 4S-8S 100A Smart Active Balancer BMS with Bluetooth in Bangladesh is Price: ৳4,035.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy JK-B1A8S10P 4S-8S 100A Smart Active Balancer BMS with Bluetooth in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original JK-B1A8S10P 4S-8S 100A Smart Active Balancer BMS with Bluetooth From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is JK-B1A8S10P continuous discharge current capability?
   It provides 100A continuous discharge current with peak surge capacity reaching up to 200A.
2. How does the active balancer function on this BMS?
   It actively transfers energy between battery cells at 1A to equalize voltage levels efficiently.
3. Does JK-B1A8S10P support Bluetooth smartphone control?
   Yes, it features integrated Bluetooth to configure and monitor parameters via smartphone app.
4. Which battery chemistries are compatible with JK-B1A8S10P?
   It is compatible with LiFePO4, Lithium-ion, and Lithium Titanate (LTO) battery packs.
5. What cell series count does this BMS support?
   It supports 4S to 8S LiFePO4, 3S to 8S Li-ion, and 6S to 8S LTO configurations.
6. Can parameter protection limits be modified manually?
   Yes, users can freely adjust voltage and current thresholds using the mobile software.
7. Does it include built-in thermal protection sensors?
   Yes, it includes an external NTC sensor for continuous battery temperature monitoring.
8. Is this BMS suitable for 12V and 24V solar battery packs?
   Yes, it perfectly supports 4S 12.8V and 8S 25.6V solar battery configurations.
9. What port configuration does this smart BMS use?
   It utilizes a common port design for both charge and discharge operations.
10. What comes included inside the standard package box?
    The package includes BMS unit, voltage sampling wire harness, temperature sensor, and switch cable.
