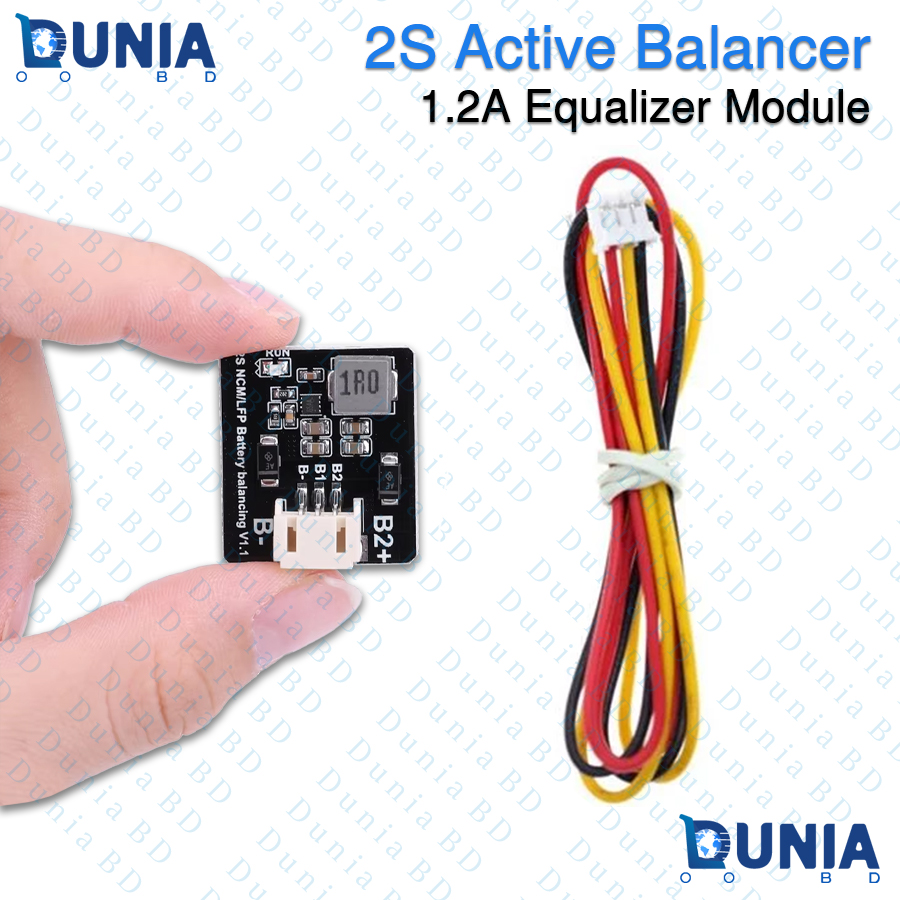

2S 1.2A Active Balancer Equalizer Board Module NCM LFP Battery Balancing V1.1

Specifications

• 2S 1.2A Active Balancer Equalizer Board Module NCM LFP Battery Balancing V1.1
• Product Type: Active Battery Equalizer Module
• Board Model: 2S NCM/LFP Battery Balancing V1.1
• Compatible Battery Types: Li-ion, NCM, LiFePO4 (LFP)
• Number of Series Cells: 2S
• Maximum Balancing Current: 1.2A
• Balancing Principle: Inductive energy transfer active balance

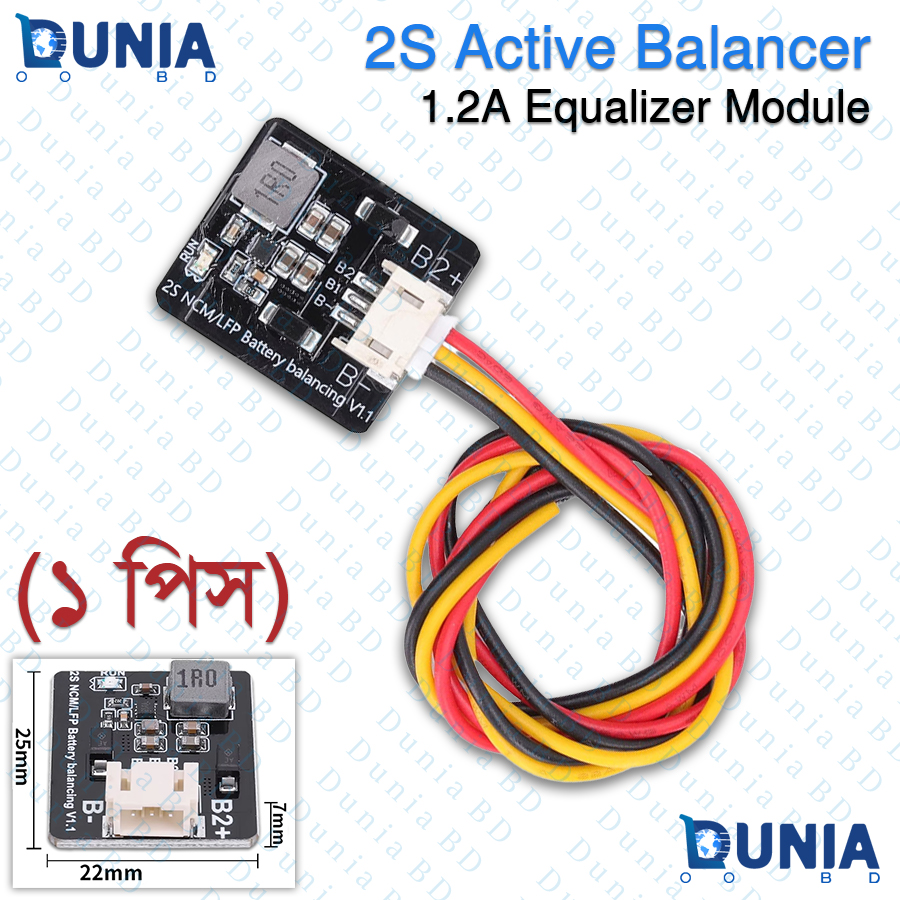

• Board Dimensions: 25mm x 22mm x 7mm
• Connector Type: JST connector with standard wiring harness included

Features

• High efficiency inductive energy transfer active balancing technology ensures fast voltage equalization across 2S battery packs.
• Compatible with both Lithium-ion (NCM) and Lithium Iron Phosphate (LiFePO4/LFP) chemistry battery packs.
• Provides continuous active energy equalization to prevent premature cell degradation and maximize overall pack capacity.
• Compact circuit footprint measuring only 25mm x 22mm makes it ideal for tight custom battery enclosure designs.
• Simple 3-wire JST harness interface (B-, B1, B2+) allows for quick and hassle-free installation on small battery builds.
• The 2S 1.2A Active Balancer Equalizer Board Module NCM LFP Battery Balancing V1.1 is an essential protection and management module designed to optimize the performance and lifespan of 2S lithium battery packs.
• Unlike passive balancers that waste excess energy as heat, this active balancer uses inductive energy transfer technology to move energy directly from high-voltage cells to low-voltage cells.
• This process occurs continuously with up to 1.2A balancing current, keeping all cells balanced during charge, discharge, and standby cycles.
• This compact balancing board is engineered to support both NCM (Li-ion) and LiFePO4 (LFP) battery chemistry, making it highly versatile for various DIY projects, power tools, electric scooters, small energy storage systems, and custom battery packs.
• By keeping cell voltages tightly aligned, the module ensures that all cells reach their full capacity without overcharging or over-discharging individual cells, extending the overall service life of your battery pack.

What is the price of 2S 1.2A Active Balancer Equalizer Board Module NCM LFP Battery Balancing V1.1 in Bangladesh?

The latest price of 2S 1.2A Active Balancer Equalizer Board Module NCM LFP Battery Balancing V1.1 in Bangladesh is Price: ৳305.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 2S 1.2A Active Balancer Equalizer Board Module NCM LFP Battery Balancing V1.1 in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original 2S 1.2A Active Balancer Equalizer Board Module NCM LFP Battery Balancing V1.1 From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the main function of this 2S active balancer module?
   It transfers energy between cells to equalize voltages in a 2S battery pack.
2. Does this module support LiFePO4 and Li-ion batteries?
   Yes, it supports both NCM (Li-ion) and LiFePO4 battery cell chemistries effectively.
3. What is the maximum balancing current of this equalizer module?
   The module provides a maximum active balancing current of up to 1.2 amperes.
4. How does an active balancer differ from a passive balancer?
   Active balancers transfer energy between cells instead of burning excess energy as heat.
5. Does this active balancer board replace a standard 2S BMS?
   No, it works alongside a BMS to provide superior active cell voltage balancing.
6. What are the physical dimensions of this 2S balancing board?
   The circuit board measures approximately 25mm in length, 22mm width, and 7mm height.
7. Is the wiring harness included with the balancer module package?
   Yes, a matching JST wiring harness is included for easy connection to cells.
8. Can I leave this active balancer continuously connected to cells?
   Yes, it operates automatically and continuously whenever voltage imbalances occur between cells.
9. How many wires are needed to connect this 2S equalizer?
   It requires three connections labeled B minus, B1 positive, and B2 positive terminals.
