JK-BD6A24S6PD 8S-24S 60A Smart Active Balancer BMS with Bluetooth

Specifications

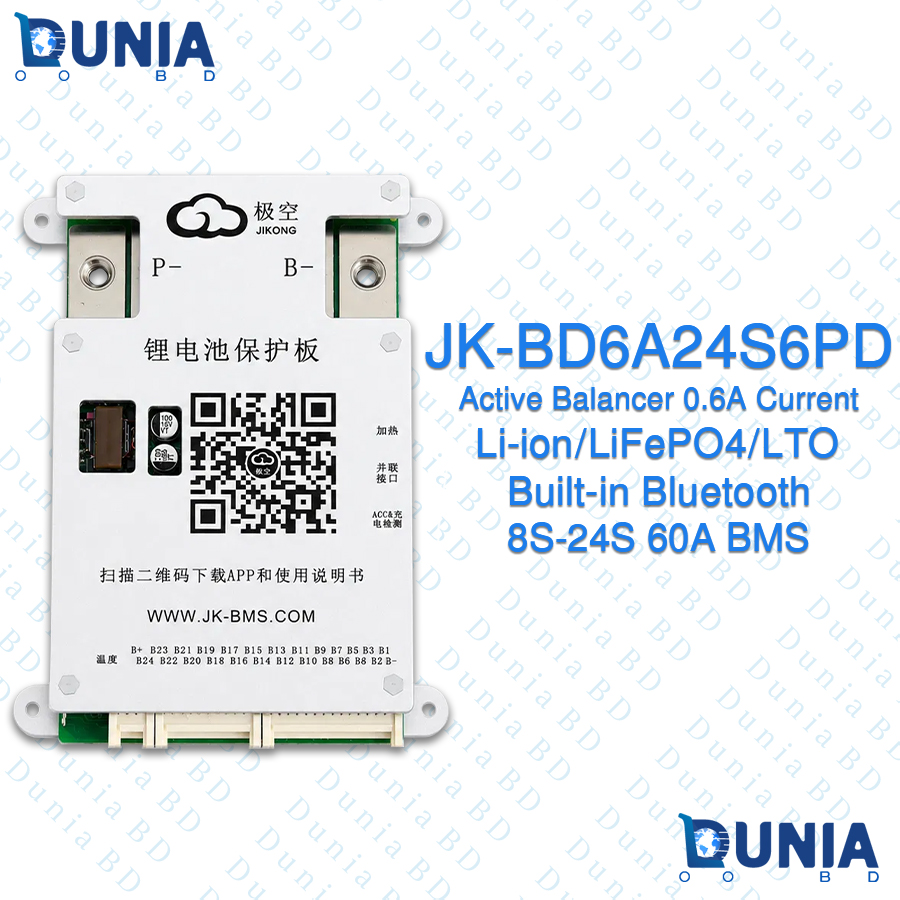

• JK-BD6A24S6PD 8S-24S 60A Smart Active Balancer BMS with Bluetooth
• Product Model: JK-BD6A24S6PD
• Supported Series: 8S to 24S (LiFePO4), 7S to 24S (Li-ion), 12S to 24S (LTO)
• Continuous Charge/Discharge Current: 60A
• Peak Discharge Current: 100A (up to 2 minutes)
• Active Balancing Current: 0.6A
• Balancing Method: Active Energy Transfer Balance (Full State On)
• Single Cell Voltage Range: 1V to 5V
• Voltage Acquisition Accuracy: ±3mV
• Main Circuit Conductive Resistance: 0.8mΩ
• Overcharge Protection Voltage: 1.2V to 4.25V (Adjustable)
• Overdischarge Protection Voltage: 1.2V to 4.25V (Adjustable)
• Overcurrent Protection Delay: 2s to 120s (Adjustable)
• Communication Interfaces: Built-in Bluetooth, RS485, CAN, Heating Interface, Parallel Interface, ACC
• App Compatibility: Android, iOS, HarmonyOS via JIKONG Smart BMS App
• Wiring Port Type: Common Port for Charging and Discharging
• Coulomb Counter: Integrated high-precision SOC calculation
• Temperature Sensors: 2 x External NTC Temperature Sensors
• Dimensions: 162mm x 102mm x 20mm
• Shell Construction: Heavy-duty Aluminum Alloy Enclosure

Features

• Active Energy Transfer Balancer: Built-in active 0.6A balance circuit transfers charge dynamically between high and low cells to maximize pack performance without energy loss.
• Smart Wireless Monitoring: Integrated Bluetooth module connects smoothly with the JIKONG mobile application on Android and iOS devices for real-time tracking, parameter customization, and system diagnostics.
• High Series Count Support: Broad versatility supporting 8S to 24S lithium battery strings across LiFePO4, Lithium-ion, and LTO chemistries.
• 60A Continuous Power Rating: Delivers steady 60A charge and discharge current with peak surge power capacity reaching up to 100A.

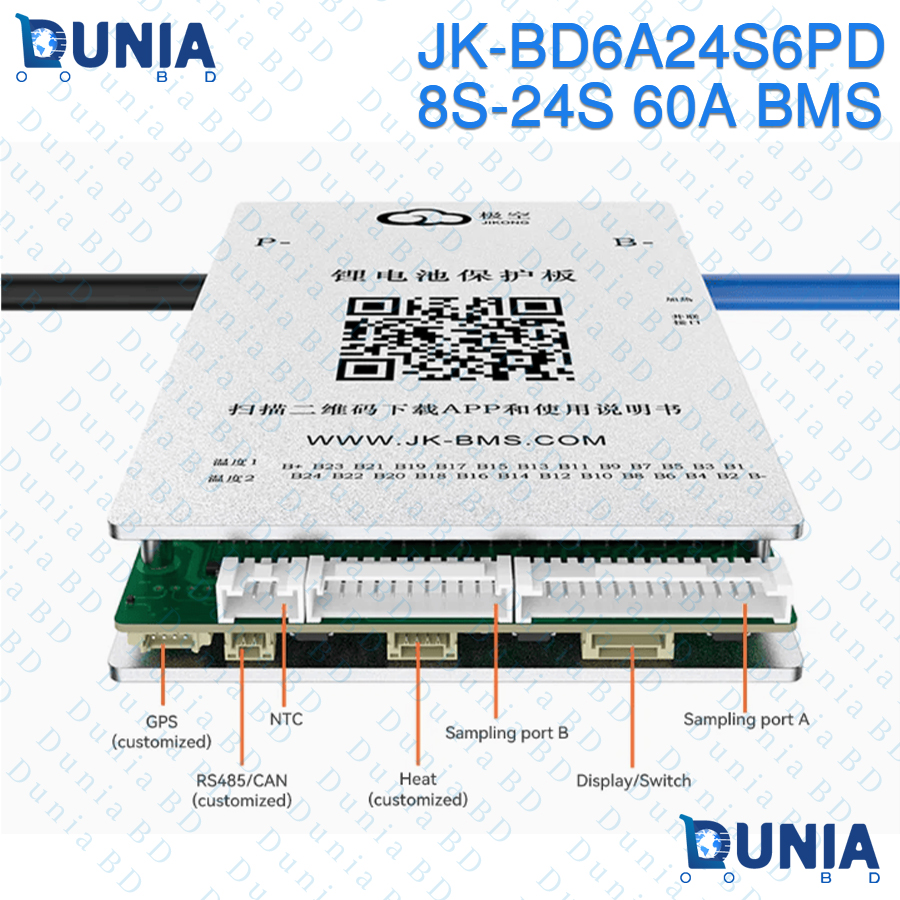

• Enhanced Smart Connectivity: Includes dedicated ports for RS485/CAN, parallel operation, display screen, heating module, and external GPS interface.
• Dual NTC Temperature Protection: Features dual external temperature probes for complete thermal safety during high-drain operation.
• The JK-BD6A24S6PD 8S-24S 60A Smart Active Balancer BMS with Bluetooth is an advanced high-voltage battery management system built for high-capacity solar battery banks, electric vehicle conversions, and energy storage systems.
• Utilizing lossless active energy-transfer balancing technology, it transfers charge across cells at 0.6A to keep high-series packs perfectly balanced.
• With built-in Bluetooth connectivity and multi-port interfaces (including RS485, CAN, heating, and display input), users can track live cell voltages, adjust safety parameters, and calculate exact SOC using the JIKONG app.
• Enclosed in a heavy-duty aluminum shell with 60A continuous output capacity, it delivers complete protection and extended battery lifecycle for 8S to 24S LiFePO4, Li-ion, and LTO systems.

What is the price of JK-BD6A24S6PD 8S-24S 60A Smart Active Balancer BMS with Bluetooth in Bangladesh?

The latest price of JK-BD6A24S6PD 8S-24S 60A Smart Active Balancer BMS with Bluetooth in Bangladesh is Price: ৳4,165.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy JK-BD6A24S6PD 8S-24S 60A Smart Active Balancer BMS with Bluetooth in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original JK-BD6A24S6PD 8S-24S 60A Smart Active Balancer BMS with Bluetooth From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the continuous discharge current of JK-BD6A24S6PD?
   It handles 60A continuous discharge current with peak surge power reaching 100A.
2. How does active balancing work on this BMS model?
   It actively transfers energy between battery cells at 0.6A to achieve precise voltage equality.
3. Does JK-BD6A24S6PD support Bluetooth wireless connection?
   Yes, it features integrated Bluetooth to monitor and adjust system parameters via smartphone app.
4. Which battery series cell count does this unit support?
   It supports 8S to 24S LiFePO4, 7S to 24S Li-ion, and 12S to 24S LTO configurations.
5. Are voltage and protection thresholds adjustable by the user?
   Yes, users can freely configure overcharge, overdischarge, and current limits via the mobile app.
6. Does this unit include dual temperature sensors?
   Yes, it includes two external NTC probes for comprehensive battery thermal monitoring.
7. Can this BMS be used for 48V or 72V battery systems?
   Yes, it is perfectly suited for 16S 48V and 24S 72V lithium battery setups.
8. Does it support external display screen and heating pad integration?
   Yes, it has dedicated ports for external LCD display, switch, and heating pad connection.
9. What port configuration is used for charging and discharging?
   It uses a unified common port for both charging and discharging operations.
10. What comes inside the standard product packaging box?
    The package contains BMS board, dual sampling harnesses, two NTC sensors, and switch wire.
