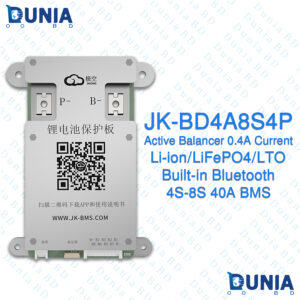

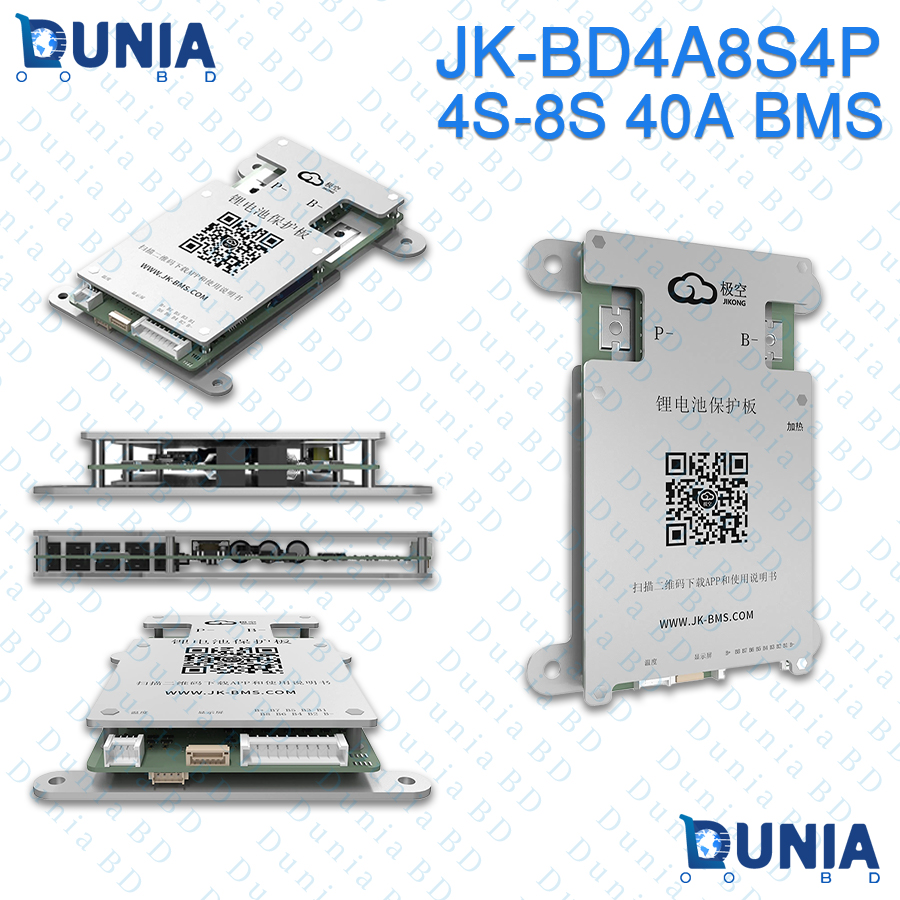

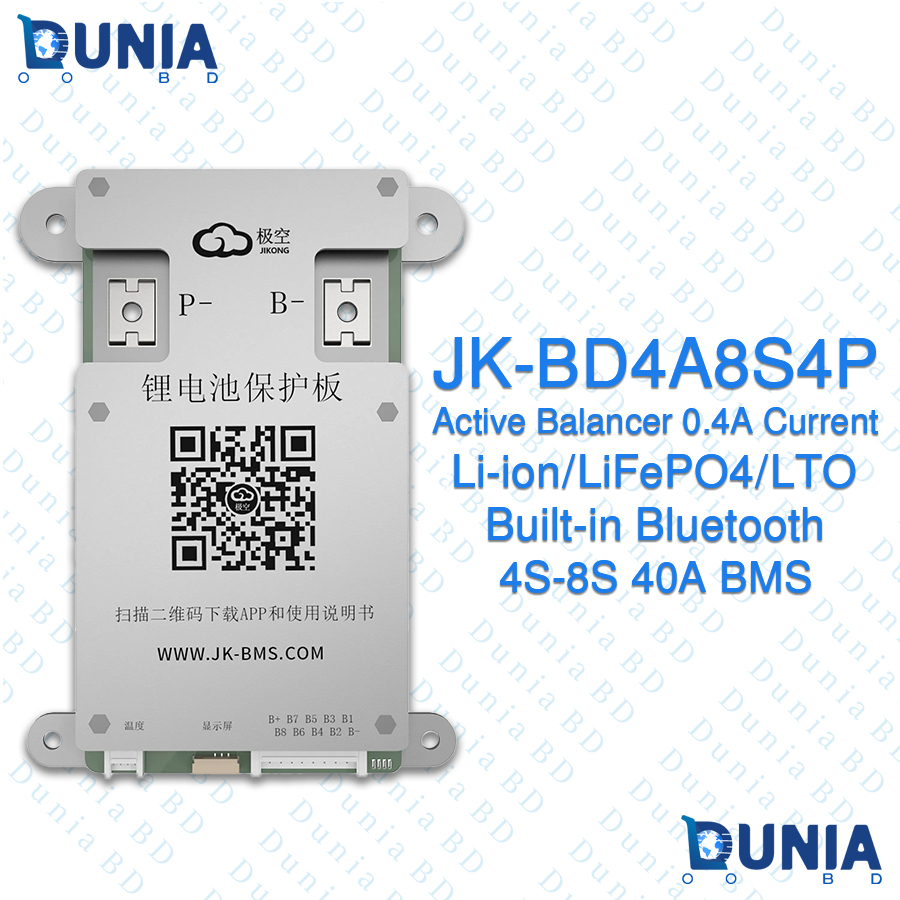

JK-BD4A8S4P 4S-8S 40A Smart Active Balancer BMS with Bluetooth

Specifications

• JK-BD4A8S4P 4S-8S 40A Smart Active Balancer BMS with Bluetooth
• Product Model: JK-BD4A8S4P
• Supported Series: 4S to 8S (LiFePO4), 3S to 8S (Li-ion), 6S to 8S (LTO)
• Continuous Charge/Discharge Current: 40A
• Peak Discharge Current: 60A (up to 2 minutes)
• Active Balancing Current: 0.4A
• Balancing Method: Active Energy Transfer Balance (Full State On)
• Single Cell Voltage Range: 1V to 5V
• Voltage Acquisition Accuracy: ±5mV
• Main Circuit Conductive Resistance: 0.8mΩ
• Overcharge Protection Voltage: 1.2V to 4.35V (Adjustable)
• Overdischarge Protection Voltage: 1.2V to 4.35V (Adjustable)
• Overcurrent Protection Delay: 2s to 120s (Adjustable)
• Communication Interfaces: Built-in Bluetooth, RS485, CAN, Heating Interface
• App Compatibility: Android, iOS, HarmonyOS via JIKONG Smart BMS App
• Wiring Port Type: Common Port for Charging and Discharging
• Coulomb Counter: Integrated high-precision SOC calculation
• Temperature Sensors: 1 x External NTC Temperature Sensor
• Dimensions: 153.9mm x 87mm x 17.6mm
• Shell Construction: Heavy-duty Aluminum Alloy Enclosure

Features

• Active Energy Transfer Balancer: Utilizes an active 0.4A continuous balance current to transfer energy efficiently between high and low voltage cells without generating excess waste heat.
• Smart Wireless Monitoring: Integrated Bluetooth interface connects directly to the JIKONG mobile app on Android and iOS devices for live voltage monitoring, configuration editing, and status checks.
• Multi-Chemistry Compatibility: Offers versatile support for 4S to 8S LiFePO4, 3S to 8S Li-ion, and 6S to 8S LTO battery configurations.
• Reliable Current Capacity: Designed for steady 40A continuous charge/discharge capability with a peak discharge capacity of up to 60A.
• Comprehensive Circuit Protection: Features fully configurable protection limits against overcharge, overdischarge, overcurrent, short circuit, and thermal anomalies.
• Rugged Heat-Sink Design: Housed in a durable aluminum alloy plate casing that optimizes heat dissipation while offering physical protection.
• The JK-BD4A8S4P 4S-8S 40A Smart Active Balancer BMS with Bluetooth is a compact and intelligent battery management solution designed for medium-scale solar battery banks, electric bikes, and custom lithium battery systems.
• Powered by active energy-transfer balancing technology, this device dynamically distributes power between individual battery cells with a 0.4A balancing current, preventing cell imbalance and extending total battery lifespan.
• Equipped with built-in Bluetooth connectivity, users can easily monitor voltage status, check state-of-charge via the integrated Coulomb counter, and adjust safety parameter thresholds via the JIKONG smartphone app.
• Encapsulated in a heat-dissipating aluminum shell and supporting up to 40A continuous working loads, it ensures complete, reliable protection for LiFePO4, Li-ion, and LTO lithium packs.

What is the price of JK-BD4A8S4P 4S-8S 40A Smart Active Balancer BMS with Bluetooth in Bangladesh?

The latest price of JK-BD4A8S4P 4S-8S 40A Smart Active Balancer BMS with Bluetooth in Bangladesh is Price: ৳3,775.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy JK-BD4A8S4P 4S-8S 40A Smart Active Balancer BMS with Bluetooth in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original JK-BD4A8S4P 4S-8S 40A Smart Active Balancer BMS with Bluetooth From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is JK-BD4A8S4P continuous discharge current rating?
   It supports a continuous charge and discharge current of 40A with 60A peak current capacity.
2. How does the active balancer function on this BMS?
   It actively transfers energy between battery cells at 0.4A to maintain precise voltage equality.
3. Does JK-BD4A8S4P feature built-in Bluetooth communication?
   Yes, it includes integrated Bluetooth to monitor and configure parameters via the JIKONG smartphone app.
4. Which battery cell chemistries are compatible with this BMS?
   It is fully compatible with LiFePO4, Lithium-ion, and Lithium Titanate (LTO) battery chemistry packs.
5. What cell series configuration does JK-BD4A8S4P support?
   It supports 4S to 8S LiFePO4, 3S to 8S Li-ion, and 6S to 8S LTO battery setups.
6. Are protection voltage and current limits customizable?
   Yes, users can manually adjust protection thresholds through the mobile software application.
7. Does it include temperature monitoring protection?
   Yes, it comes with an external NTC temperature sensor to safeguard against thermal risks.
8. Is this BMS suitable for 12V and 24V solar applications?
   Yes, it perfectly suits 4S 12.8V and 8S 25.6V solar power storage setups.
9. Does this unit use a common wiring port design?
   Yes, it utilizes a unified common port for both charging and discharging operations.
10. What components are included inside the product package?
    The package contains the BMS unit, sampling wiring harness, external temperature sensor, and switch wire.
