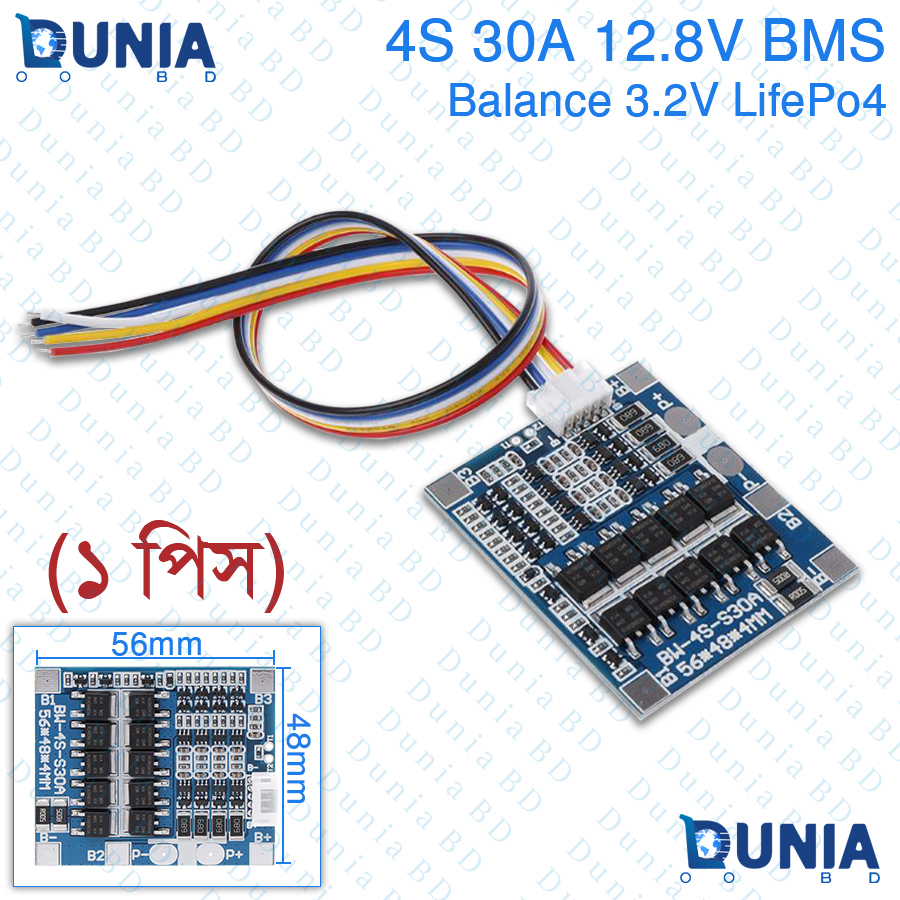

BMS 4S 30A 12.8Volt LifePo4 Lithium Phosphate Battery Charging Protection Board Module Balanced

• Specifications
• Discharge: Continuous Discharging Current: 30A(MAX), Instantaneous Discharge Current: 56A
• Charge: Charging Voltage: 14.8V
• Charging Current: 20A (MAX)
• Overcharge Protect: Over-charge Detect: 3.75±0.05V
• Protect Delay: 1300MS
• Over-charge Release: 3.60±0.05V
• Balance
• Detect Voltage: 3.60±0.05V
• Release Voltage: 3.59±0.05V
• Balance Current: 58mA
• Over-discharge Protect
• Over-discharge Detect: 2.1±0.08V
• Over-discharge Detect delay: 145S
• Release Voltage: 2.3±0.1V
• Over-current Protect
• Detect Voltage: 200mV
• Detect Delay: 20mS
• Current Detect: 56±10A
• Release Condition: Cut Load
• Inner Resistance: ≤20mΩ
• Self-Consumption: Working Current: ≤30uA
• Sleep Current (when Over-discharge): ≤20uA
• Working Temperature Range: -30+80℃

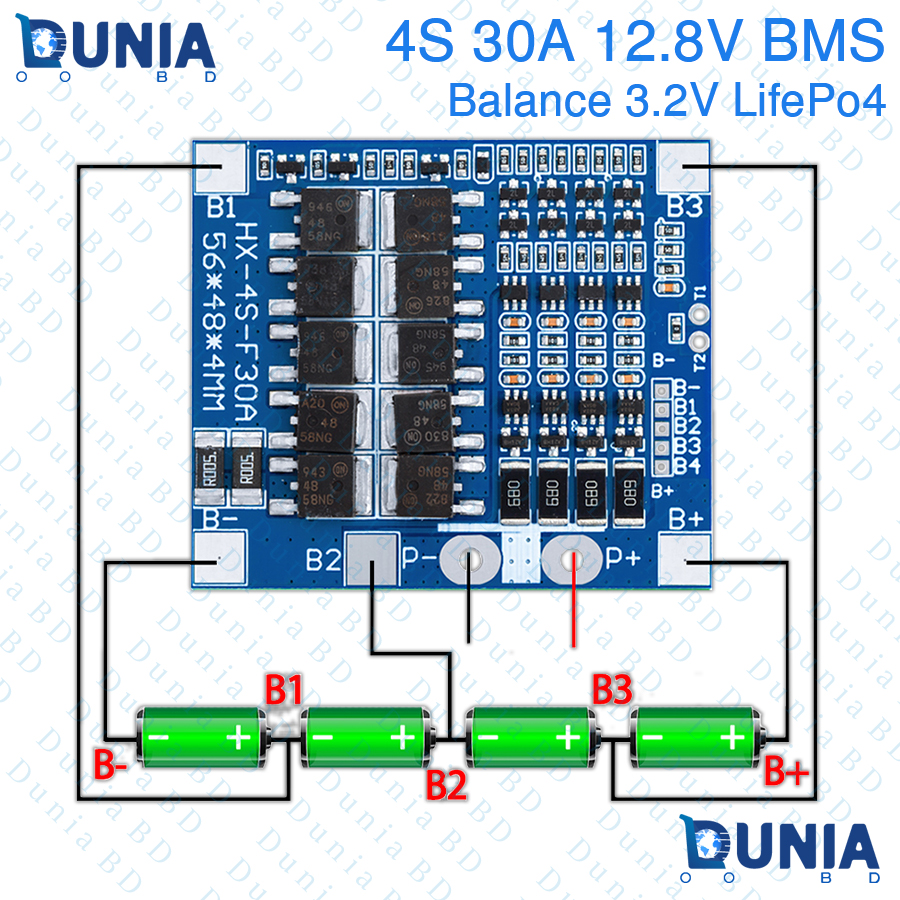

• PCB Board Size: 56x47mm/2.2×1.85″
• Features: This board is 4 string 3.2V Lithium iron phosphate battery protection board, High current protection board, continuous 30A current, with balance circuit. The board comes with cable

What is the price of BMS 4S 10A 12.8Volt LifePo4 Lithium Phosphate Battery Charging Protection Board Module Balanced in Bangladesh?

The latest price of 4S 10A BMS in Bangladesh is Price: ৳335.00 taka . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy BMS 4S 10A 12.8Volt LifePo4 Lithium Phosphate Battery Charging Protection Board Module Balanced in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 4S 10A BMS From Dunia.com.bd . We have few collection of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.
