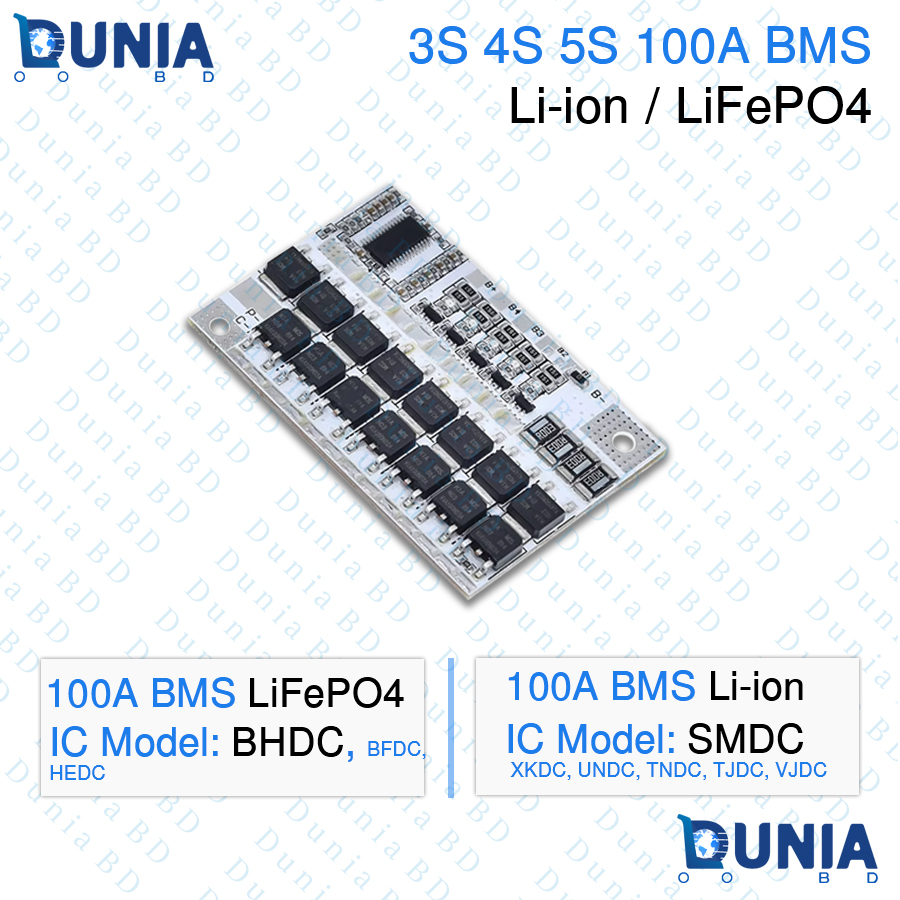

3S 4S 5S 100A BMS for Li-Ion LiFePO4 Protection Board 14.6V 18.2V Lithium Ion and Iron Phosphate Battery

Specifications

• 3S 4S 5S 100A BMS Board Li-ion LiFePO4 Battery Protection Board
• Continuous Discharge Current: 100A (Max)
• Instantaneous Discharge Current: 150A
• Charging Voltage: 3S Li-ion 12.6V / 4S Li-ion 16.8V / 5S Li-ion 21V / 3S LiFePO4 10.95V / 4S LiFePO4 14.6V / 5S LiFePO4 18.2V
• Charging Current: 10A (Max)
• Overcharge Detection Voltage: Li-ion 4.25±0.025V / LiFePO4 3.65±0.025V
• Overdischarge Detection Voltage: Li-ion 2.80±0.08V / LiFePO4 2.35±0.08V
• Overcurrent Protection Delay: 100ms
• Short Circuit Protection Delay: 200us
• Internal Resistance: ≤20mΩ
• Working Current: ≤60uA
• Sleep Current (Overdischarge): ≤10uA
• Operating Temperature: -30°C to +80°C
• Board Size: 70mm x 60mm x 8.5mm

⚡ 3S 4S 5S Li-Ion LiFePO4 BMS (Convertible 3S to 5S)

এই BMS টি মূলত 3S 4S 5S Li-Ion LiFePO4 ব্যাটারি প্যাক এর জন্য ডিজাইন করা। তবে বোর্ডে একটি ছোট কনফিগারেশন অপশন থাকার কারণে এটি প্রয়োজন অনুযায়ী 5S হিসেবেও ব্যবহার করা সম্ভব।

🔧 কিভাবে কাজ করে?
বোর্ডের B1 লাইনে একটি ছোট রেজিস্টর (0Ω jumper) থাকে।

• ডিফল্ট অবস্থায় (রেজিস্টর লাগানো থাকলে) → এটি 3S/4S/5S BMS হিসেবে কাজ করে
• যদি সেই রেজিস্টরটি সরানো হয় → তখন এটি 5S BMS হিসেবে কাজ করতে পারে

📌 কাস্টমারের জন্য গুরুত্বপূর্ণ তথ্য

• এটি একটি ডুয়াল-ইউজ (3S / 4S / 5S) BMS বোর্ড
• সাধারণ ব্যবহারকারীদের জন্য 4S সেটআপই ডিফল্ট এবং নিরাপদ
• 5S হিসেবে ব্যবহার করতে হলে ইলেকট্রনিক্স সম্পর্কে বেসিক ধারণা থাকা প্রয়োজন
• ভুল কনফিগারেশন করলে ব্যাটারি বা ডিভাইস ক্ষতিগ্রস্ত হতে পারে

⚠️ সতর্কতা

• পরিবর্তন করার আগে অবশ্যই নিশ্চিত হোন আপনার ব্যাটারি কনফিগারেশন (3S বা 4S বা 5S) সঠিক
• নতুন ব্যবহারকারীদের জন্য নিজে পরিবর্তন না করে টেকনিশিয়ানের সাহায্য নেওয়া উত্তম

👉 সংক্ষেপে:
একটি বোর্ড – তিন ধরনের ব্যবহার (3S / 4S / 5S), তবে সঠিক কনফিগারেশন খুবই গুরুত্বপূর্ণ।

Features

• The 3S 4S 5S 100A BMS Board provides robust protection for 18650 Li-ion and LiFePO4 battery packs.
• It features overcharge protection, overdischarge protection, high-current discharge management, short-circuit protection, and temperature monitoring.
• Designed with versatility in mind, this module supports 3S, 4S, and 5S configurations using onboard SMD resistor jumpers (2 x 0 ohm for 3S, 1 x 0 ohm for 4S, and no 0 ohm resistor for 5S).
• This 100A BMS module is an ideal protection solution for high-power DIY energy systems, electric vehicle battery packs, solar power storage, power tools, and inverter backup setups.
• With dedicated IC models (SMDC for Li-ion and BHDC/BFDC/HEDC for LiFePO4), it guarantees precise voltage cutoff and balanced performance across each cell series.
• Its low internal resistance ensures high conversion efficiency without excessive heat generation during continuous high-load operations.
• High current 100A discharge capability for power tools and solar systems.
• Supports both 4S and 5S LiFePO4 battery configurations.
• Integrated balance function to ensure all cells are charged equally.
• Robust overcharge, over-discharge, and short circuit protection.
• High-quality MOS tubes for low heat generation and high efficiency.
• The 4S/5S 100A LiFePO4 BMS is a high-performance protection module designed specifically for Lithium Iron Phosphate battery packs.
• Whether you are building a custom solar energy storage system, an electric vehicle battery, or a high-capacity power bank, this BMS ensures the longevity and safety of your cells.
• It features a sophisticated balancing circuit that levels the voltage of individual cells during the charging process, preventing premature degradation.
• With a massive 100A continuous discharge rating, it can handle heavy loads with ease.
• The compact 61x42mm PCB design allows for easy integration into tight battery enclosures.
• This board is engineered to protect against common hazards like short circuits and extreme temperature fluctuations, making it a reliable choice for professional and DIY battery builders in Bangladesh.

What is the price of 3S 4S 5S 100A BMS Board Li-ion LiFePO4 Battery Protection Board in Bangladesh?

The latest price of 3S 4S 5S 100A BMS Board Li-ion LiFePO4 Battery Protection Board in Bangladesh is Product ID is required. to Price: ৳335.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 3S 4S 5S 100A BMS Board Li-ion LiFePO4 Battery Protection Board in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original 3S 4S 5S 100A BMS Board Li-ion LiFePO4 Battery Protection Board From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the maximum continuous current rating for this BMS?
   This BMS board supports up to 100A continuous discharge current safely.
2. Can I use this BMS for both Li-ion and LiFePO4 batteries?
   Yes, dedicated IC variants support Li-ion or LiFePO4 chemistry types.
3. How do I switch between 3S, 4S, and 5S modes?
   Adjust the onboard 0 ohm SMD resistor jumpers according to specs.
4. Does this BMS board include built-in short circuit protection?
   Yes, it features rapid short circuit protection with 200us delay.
5. What is the charging voltage required for 4S LiFePO4 pack?
   The recommended charging voltage for a 4S LiFePO4 pack is 14.6V.
6. What is the charging voltage required for 3S Li-ion pack?
   The required charging voltage for a 3S Li-ion pack is 12.6V.
7. Does it prevent overcharging of individual lithium battery cells?
   Yes, integrated IC detection halts charging when cell limits are reached.
8. Is this module suitable for power tools and electric scooters?
   Absolutely, its 100A discharge capacity handles heavy motor load demand.
9. What is the operating temperature range for this protection board?
   It operates reliably within a temperature range of -30°C to +80°C.
