4S 20A LiFePO4 BMS Protection Board for Lithium Iron Phosphate Battery HXYP-4S-6040

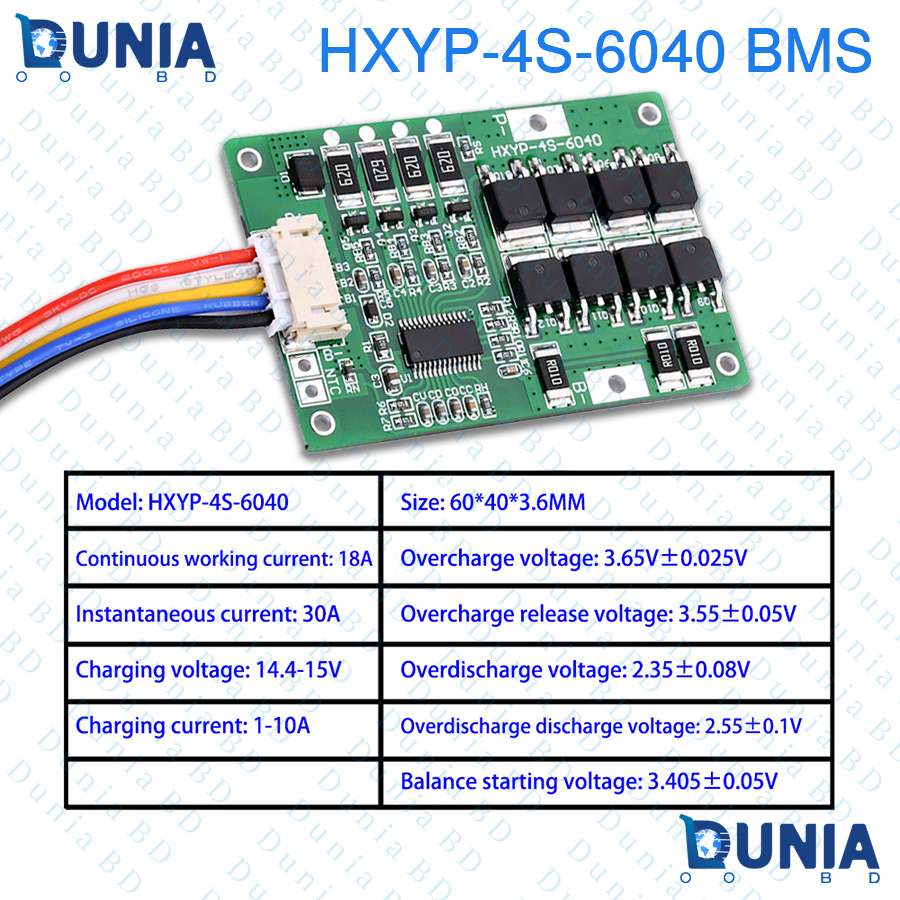

Specification:

• 4S 20A LiFePO4 BMS
• Model: HXYP-4S-6040
• Continuous working current: 18A
• Instantaneous current: 30A
• Charging voltage: 14.4V – 15V
• Charging current: 1A – 10A
• Overcharge voltage: 3.65 \0.025V
• Overcharge release voltage: 3.55 \pm 0.05V
• Over-discharge voltage: 2.35 \pm 0.08V$
• Over-discharge release voltage: 2.55 \pm 0.1V
• Balance starting voltage: 3.405 \pm 0.05V
• Size: 60mm * 40mm * 3.6mm

What is the price of 4S 20A LiFePO4 BMS Protection Board for Lithium Iron Phosphate Battery HXYP-4S-6040 in Bangladesh?

The latest price of 4S 20A BMS in Bangladesh is Price: ৳335.00 taka . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 4S 20A LiFePO4 BMS Protection Board for Lithium Iron Phosphate Battery HXYP-4S-6040 in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 4S 20A BMS From Dunia.com.bd . We have few collection of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

Features:

• High-efficiency 4S 20A LiFePO4 battery management system
• Precise overcharge and over-discharge protection for cell longevity.
• Integrated balance function to maintain cell voltage parity.
• Compact design with high-quality MOS tubes for heat dissipation

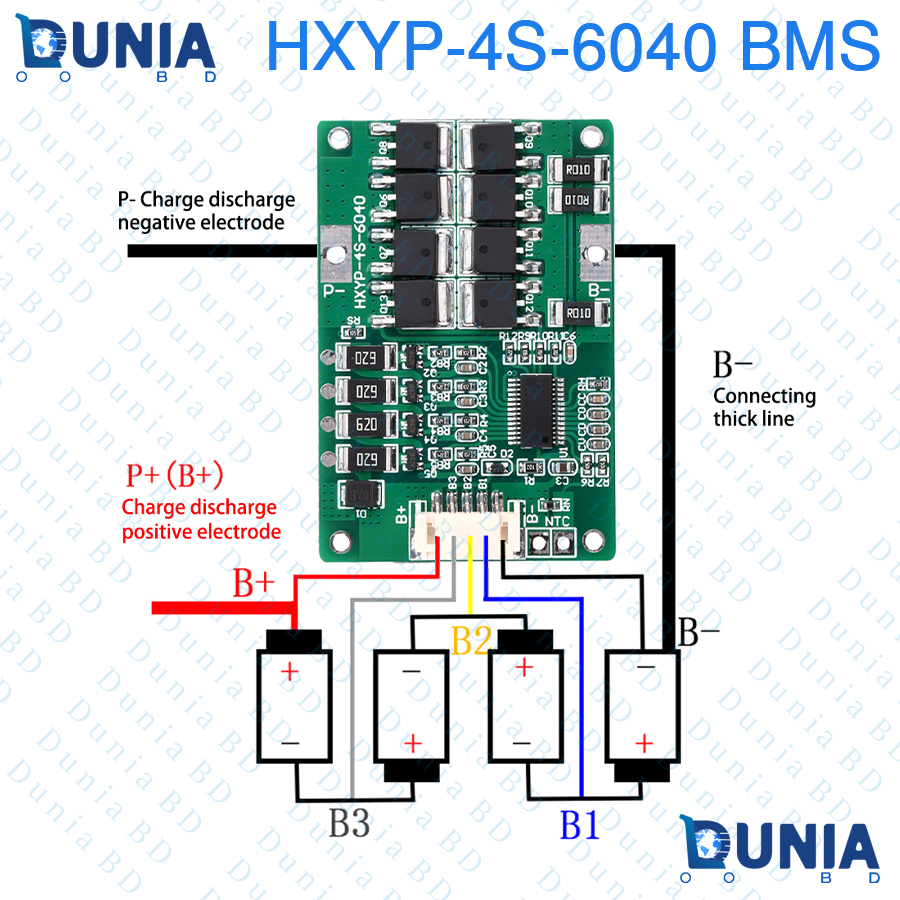

• Easy-to-follow connection diagram for DIY battery building
• The HXYP-4S-6040 BMS is a dedicated protection board designed specifically for 4-series (4S) Lithium Iron Phosphate (LiFePO4) battery packs.
• With a continuous working current of 18A and an instantaneous peak of 30A, it is perfect for moderate power applications like solar lighting, small power tools, and portable energy storage.
• This module features comprehensive safeguards, including overcharge and over-discharge voltage protection, ensuring your batteries operate within safe limits.
• The built-in balance function triggers at 3.405V, helping to keep all four cells at a consistent voltage level, which significantly extends the overall life of the battery pack.
• Its slim profile and 60x40mm footprint make it easy to integrate into compact enclosures.

FAQ

1. Q: What is the continuous current limit?
   A: The board supports a continuous working current of 18A.
2. Q: Can it handle peak surges?
   A: Yes, it can handle an instantaneous current up to 30A.
3. Q: What is the charging voltage?
   A: The recommended charging voltage is between 14.4V and 15V.
4. Q: Does it have cell balancing?
   A: Yes, balancing starts when a cell reaches 3.405V.
5. Q: Is it compatible with Li-ion?
   A: No, this is specifically for LiFePO4 chemistry batteries.
6. Q: What are the board dimensions?
   A: The board size is 60mm * 40mm * 3.6mm.
7. Q: What is the charge current?
   A: It supports a charging current range of 1A to 10A.
8. Q: At what voltage does overcharge protection trip?
   A: It trips at 3.65 \pm 0.025V per cell.
9. Q: Does it include a wiring harness?

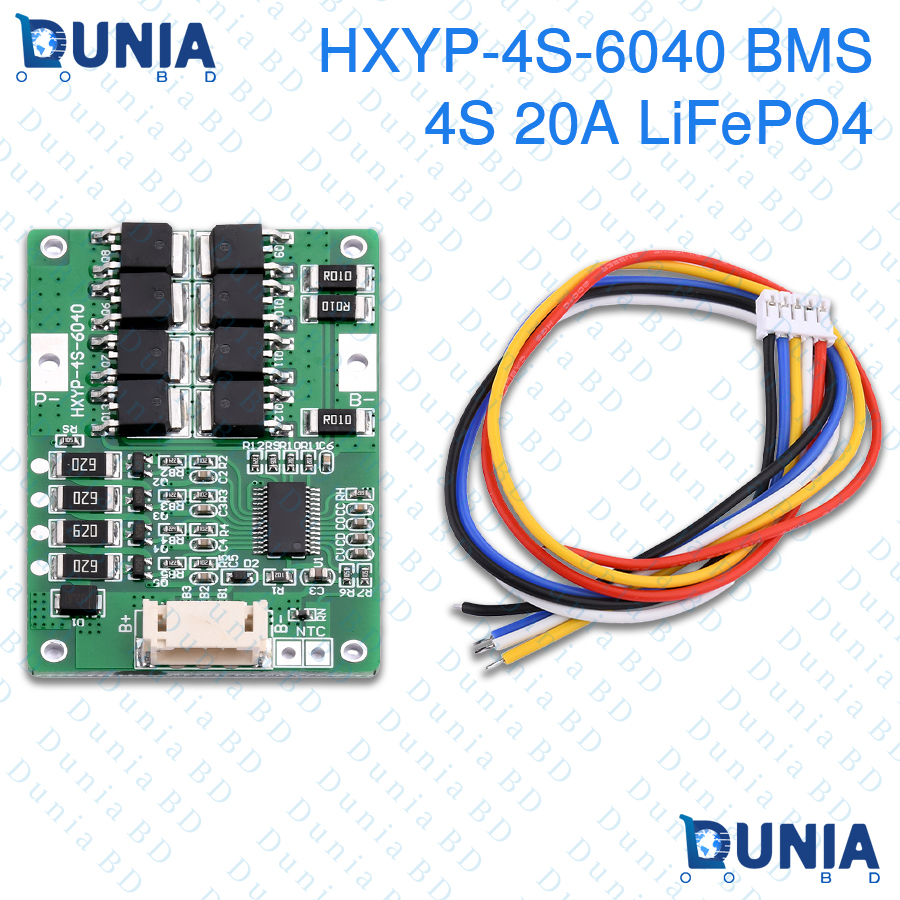

   A: Yes, it comes with a multi-color balance cable.
10. Q: Is it good for solar?
    A: Yes, it is ideal for 12.8V LiFePO4 solar battery packs.
