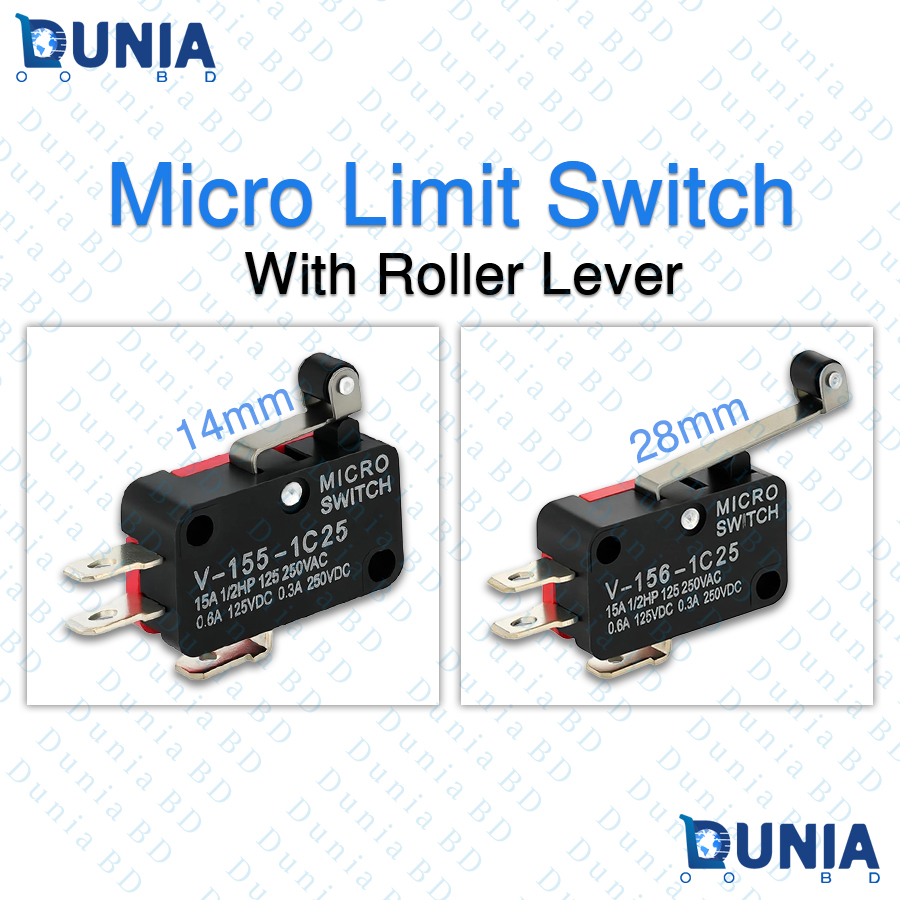

Micro Limit Switch 3 Pin Plastic Roller Short and Long Lever Arm 15A 125/250VAC

Specifications

• V-155-1C25 V-156-1C25 Micro Limit Switch with Roller Lever 15A 250VAC specification details:
• Model Options: V-155-1C25 (14mm Short Lever) / V-156-1C25 (28mm Long Lever)
• Actuator Type: Hinged Roller Lever Arm
• Roller Lever Length Options: 14mm (0.55 inch) / 28mm (1.1 inch)
• AC Current & Voltage Rating: 15A 1/2HP 125VAC / 250VAC
• DC Current & Voltage Rating: 0.6A 125VDC / 0.3A 250VDC
• Switch Body Dimensions: 28mm Length x 16mm Height x 10mm Width
• Terminal Length: 9mm (0.35 inch)
• Terminal Tab Width: 4.6mm (0.18 inch)
• Mounting Hole Diameter: 3mm (0.12 inch)
• Contact Configuration: SPDT (1NO + 1NC + 1COM) 3-Pin Quick Connect Terminals
• Color Variant: Black Body with Red Side Accent

Features:

• Dual Lever Length Options: Available in 14mm short roller lever and 28mm extended roller lever configurations to fit diverse mechanical sensing setups.
• High Current Carrying Capacity: Rated for 15A at 250VAC, making it suitable for both micro-control signaling and direct AC power load switching.
• Smooth Roller Wheel Mechanism: Built-in rotating tip roller ensures frictionless mechanical tripping, reduced wear, and extended switch service life.
• Standard SPDT Contact Setup: Features 1NO, 1NC, and 1COM terminals for versatile Normally Open or Normally Closed circuit design.
• Durable Snap Action Triggering: High-precision snap-action mechanism provides rapid response, clear tactile feedback, and reliable repetition.
• The V-155-1C25 V-156-1C25 Micro Limit Switch with Roller Lever is a heavy-duty snap-action limit sensor engineered for industrial machinery, 3D printers, CNC equipment, home appliances, and automation safety systems.
• Available in two distinct roller lever lengths — 14mm (V-155-1C25) and 28mm (V-156-1C25) — this versatile SPDT switch allows precise mechanical position detection across varying clearance distances.
• It features a robust electric rating of 15A 250VAC and up to 0.6A 125VDC, making it durable for heavy current handling.
• The compact body measures 28mm x 16mm x 10mm with standard 3mm mounting holes for effortless installation.
• Outfitted with 3-pin quick-connect solder terminals (COM, NO, NC) and a frictionless roller wheel, it delivers ultra-fast switching response, minimal mechanical friction, and dependable long-term performance under demanding operating conditions.

What is the price of Micro Limit Switch 3 Pin Plastic Roller Short and Long Lever Arm 15A 125/250VAC in Bangladesh?

The latest price of Micro Limit Switch 3 Pin Plastic Roller Short and Long Lever Arm 15A 125/250VAC in Bangladesh is Price: ৳50.00 to Price: ৳50.00 taka for 1Pcs Switch. You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Micro Limit Switch 3 Pin Plastic Roller Short and Long Lever Arm 15A 125/250VAC in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original Micro Limit Switch 3 Pin Plastic Roller Short and Long Lever Arm 15A 125/250VAC From Dunia.com.bd . We have few collection of latest Limit Switch to purchase. Order Switch Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the difference between V-155 and V-156 limit switches?
   V-155 has a 14mm lever, while V-156 features a 28mm lever.
2. What is the maximum AC current rating for this switch?
   It handles up to 15 Amps load at 250 Volts AC.
3. Can I use this limit switch for DC voltage circuits?
   Yes, it supports 0.6A at 125VDC and 0.3A at 250VDC.
4. What contact type does this micro limit switch support?
   It uses SPDT configuration featuring COM, NO, and NC terminals.
5. What is the diameter of the mounting holes?
   The mounting holes have a standard 3mm (0.12 inch) diameter.
6. Is this switch suitable for CNC or 3D printer endstops?
   Yes, it is widely used as an endstop position sensor.
7. How long is the main body of this limit switch?
   The main body length measures 28mm (1.1 inches).
8. Why does the lever have a roller on the tip?
   The roller minimizes physical wear and enables smooth mechanical triggering.
9. How many connection pins are available on the bottom?
   It has 3 standard 4.6mm quick-connect male spade terminals.
10. Does the package include both 14mm and 28mm levers?
    Each option is selectable based on your specific project requirements.
