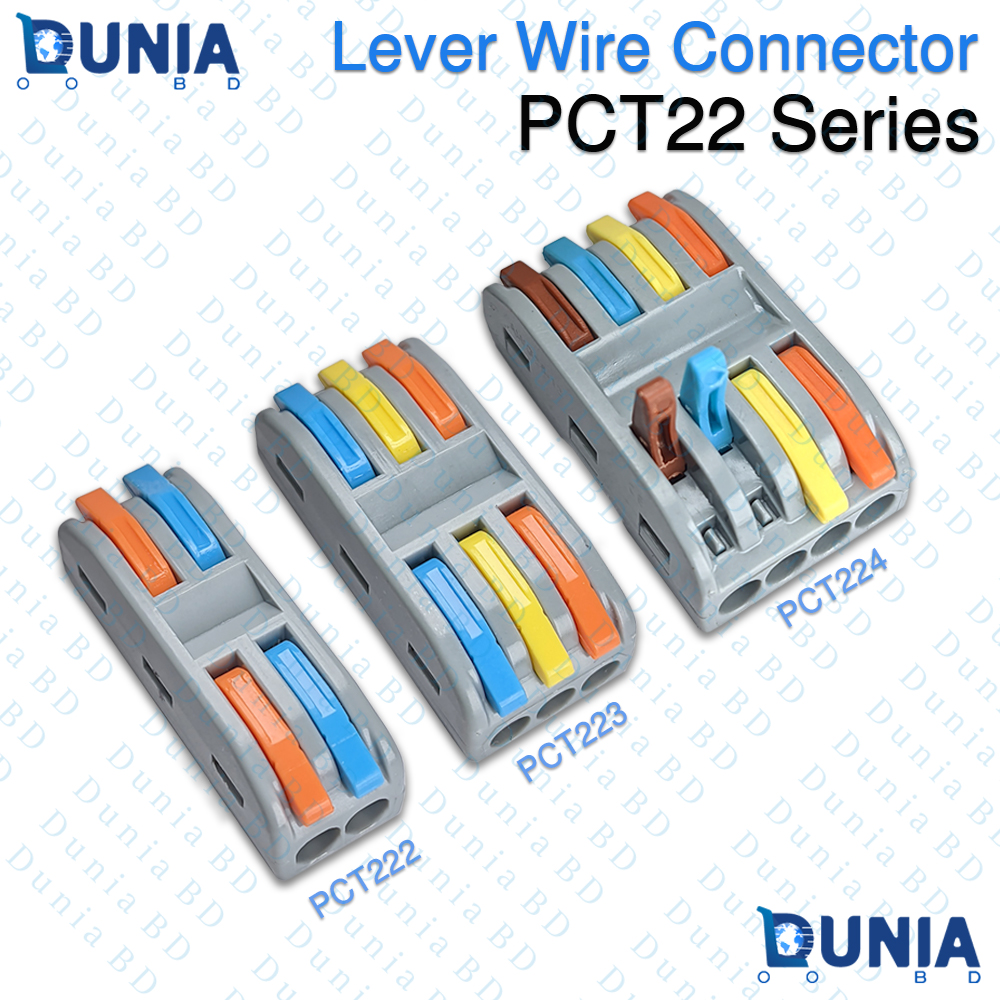

PCT22 Series Lever Wire Connector Quick Splice Terminal Block

Specifications

• PCT22 Series Lever Wire Connector Quick Splice Terminal Block
• Series Models: PCT22 Series (PCT222, PCT223, PCT224)
• Pin Configurations: 2-in 2-out / 2 Pin (PCT222), 3-in 3-out / 3 Pin (PCT223), 4-in 4-out / 4 Pin (PCT224)
• Compatible Wire Range: 0.2mm² to 2.5mm² (Rigid) / Up to 4.0mm² (Flexible)
• PCT222 Dimensions: 39mm (L) x 14mm (W) x 14.5mm (H)
• PCT223 Dimensions: 39mm (L) x 18.5mm (W) x 14.5mm (H)
• PCT224 Dimensions: 39mm (L) x 23mm (W) x 14.5mm (H)
• Body Material: Flame-retardant Insulating Engineering Plastic
• Actuator Type: Color-Coded Quick-Release Lever Lock Mechanism
• Voltage Rating: 250V / 4KV
• Current Rating: 32A max

Features

• In-line dual-sided lever design allowing direct feed-through and inline wire connections.
• Color-coded quick-release levers for distinct line identification and effortless tool-free operation.
• High flame-retardant insulating housing ensures superior electrical safety and reliability.
• Universal compatibility for solid, stranded, and flexible copper conductor wires ranging from 0.2mm² to 4.0mm².
• Compact structure with uniform 39mm length designed to fit neatly in tight electrical boxes and switchboards.
• The PCT22 Series Lever Wire Connector Quick Splice Terminal Block provides a streamlined, safe, and professional solution for inline electrical splicing.
• Designed with dual-sided color-coded lever locks, these connectors allow rapid toolless termination and joining of cables without soldering or wrapping tape.
• The series offers multiple pin configurations: PCT222 (2 Pin), PCT223 (3 Pin), and PCT224 (4 Pin).
• Engineered to handle up to 32A and suitable for wire sizes from 0.2mm² to 4.0mm², these terminal blocks ensure strong, vibration-resistant electrical contact.
• Their durable, heat-resistant casing protects against short circuits, making them ideal for home lighting, junction box extension, industrial controls, and automotive rewiring projects.

What is the price of PCT22 Series Lever Wire Connector Quick Splice Terminal Block in Bangladesh?

The latest price of PCT22 Series Lever Wire Connector Quick Splice Terminal Block in Bangladesh is Price: ৳50.00 to Price: ৳110.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy PCT22 Series Lever Wire Connector Quick Splice Terminal Block in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original PCT22 Series Lever Wire Connector Quick Splice Terminal Block From Dunia.com.bd . We have a few collections of latest Connector to purchase. Order Connector & Terminals Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What variants are available in the PCT22 series connector family?
   The PCT22 series includes PCT222, PCT223, and PCT224 models.
2. What wire size range is supported by the PCT22 series?
   It supports conductors from 0.2mm² to 2.5mm² (flexible wires up to 4.0mm²).
3. What is the overall length of the PCT22 series connectors?
   All PCT22 series models feature a standard length of 39mm.
4. What is the width of the PCT224 4-pin model?
   The PCT224 model has a total width of 23mm.
5. What is the width of the PCT223 3-pin model?
   The PCT223 model has a total width of 18.5mm.
6. Are tools required to insert or release wires from the connector?
   No, simply pull open the color-coded lever, insert the stripped wire, and push it down to lock.
7. Are PCT22 series lever connectors reusable?
   Yes, you can re-open the levers anytime to swap or remove wires cleanly.
8. What is the height dimension of the PCT22 series connectors?
   The height across the PCT22 series models is 14.5mm.
9. Can these connectors join solid and stranded copper wires?
   Yes, they reliably clamp both solid rigid wires and flexible stranded cables.
10. How many pins/channels does the PCT222 connector feature?
    The PCT222 model features a 2-pin / 2-channel inline connection layout.
