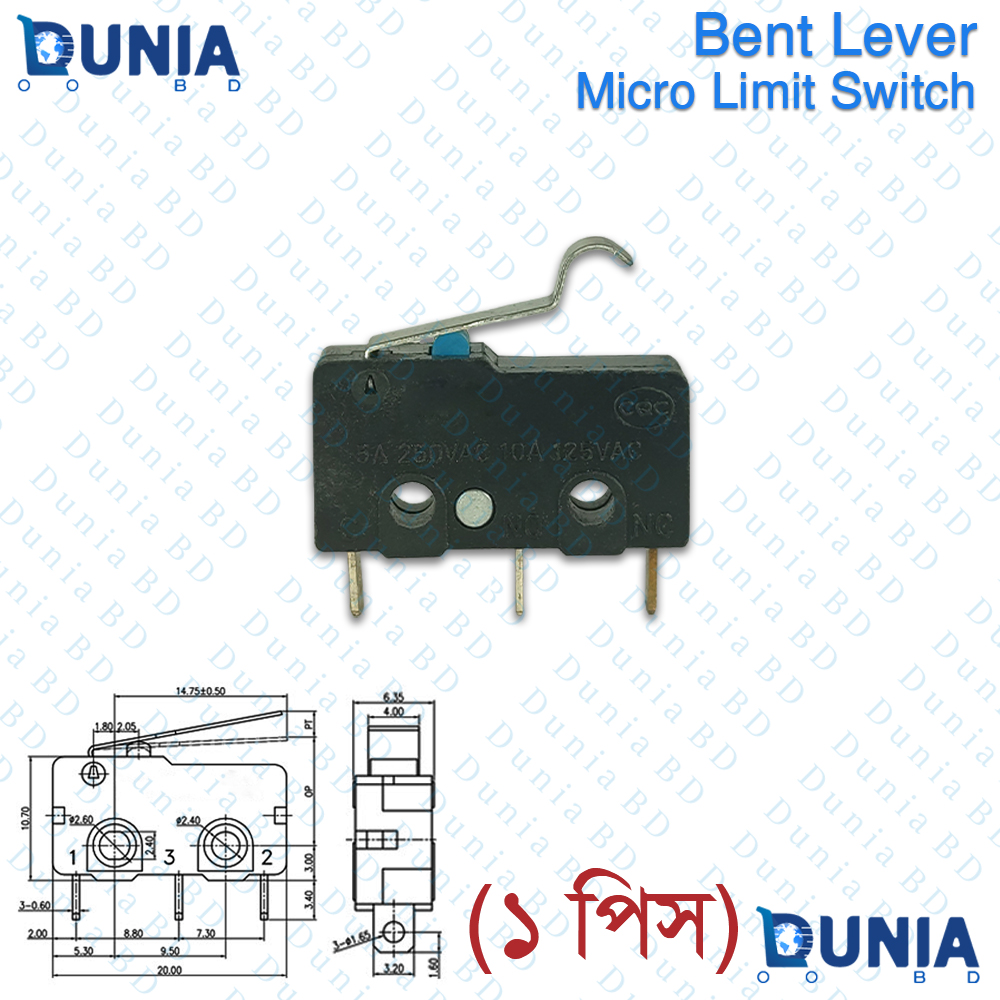

Bent Lever Micro Limit Switch 5A 250V AC 3 Pin SPDT Switch

Specifications

• Bent Lever Micro Limit Switch
• Product Type: Micro Limit Switch
• Actuator Type: Bent Metal Lever
• Switch Mechanism: Momentary Snap-Action
• Contact Configuration: SPDT (Single Pole Double Throw)
• Terminal Configuration: 3 Pins (COM, NO, NC)
• Rated Current: 5A
• Rated Voltage: 125V/250V AC, subject to the printed rating
• Body Material: Plastic Housing and Metal Lever
• Housing Color: Black
• Lever Material: Metal
• Approximate Body Dimensions: 20mm × 10.7mm
• Mounting: Screw Mounting Holes
• Switching Type: Mechanical Contact Switch
• Applications: Position Detection, End-Stop Control, Appliance Repair and Automation Projects
• Package Quantity: 1 Piece

Features

• Bent Lever Design: The curved metal lever allows convenient mechanical actuation in compact installations.
• Compact Construction: Small body dimensions make it suitable for equipment with limited mounting space.
• Three-Pin Configuration: COM, NO and NC terminals provide flexible circuit connection options.
• Snap-Action Mechanism: Provides quick switching when the lever reaches its operating point.
• Electrical Rating: The switch body indicates a 5A, 250V AC rating; verify the marking before use.
• Wide Applications: Suitable for appliance mechanisms, position sensing, control systems and DIY electronics.
• Simple Installation: Mounting holes allow the switch to be secured inside compatible equipment.
• The Bent Lever Micro Limit Switch is a compact mechanical switch designed for position detection, movement control and electrical switching applications. It features a curved metal lever that responds to mechanical movement and activates the internal snap-action mechanism.
• Its three-terminal configuration provides Common (COM), Normally Open (NO) and Normally Closed (NC) contacts. This arrangement allows users to select the required switching behavior for compatible circuits. When the lever is actuated, the contacts change state; after the external force is removed, the mechanism returns to its normal position.
• The compact housing and bent metal lever make this micro limit switch useful in household appliances, small machinery, electronic equipment, mechanical control systems and repair projects. It can also be used as an end-stop or position-detection switch in suitable automation and DIY applications.
• The switch is marked with a 5A, 250V AC electrical rating. Actual safe switching capacity depends on the load type, operating conditions and the manufacturer’s specifications. Inductive loads such as motors may require additional protection.
• Before installation, identify the COM, NO and NC terminals and confirm the required operating voltage and current. Disconnect power before wiring, insulate exposed connections and ensure the switch is mounted securely.
