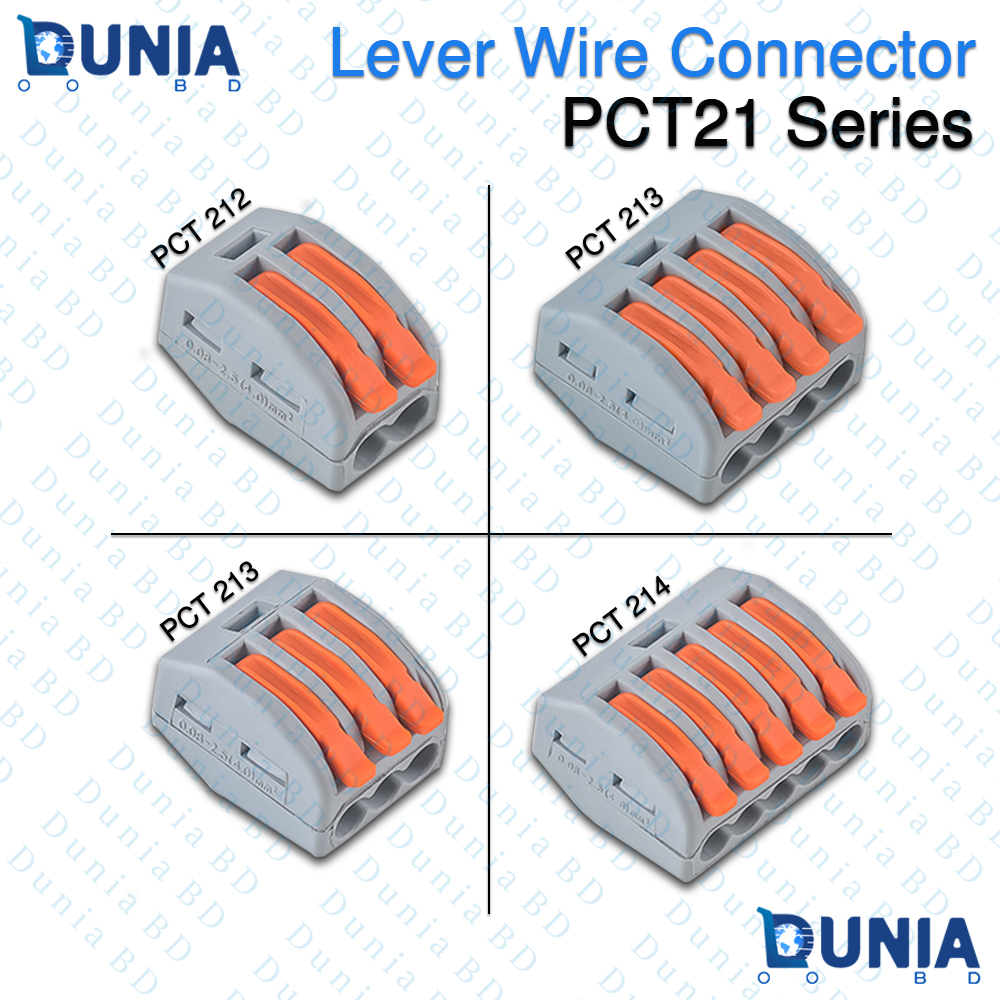

PCT21 Series Lever Wire Connector Quick Splice Terminal Block

Specifications

• PCT21 Series Lever Wire Connector Quick Splice Terminal Block
• Series Model: PCT21 Series (PCT212, PCT213, PCT214, PCT215)
• Pin Configurations: 2 Pin (PCT212), 3 Pin (PCT213), 4 Pin (PCT214), 5 Pin (PCT215)
• Compatible Wire Range: 0.2mm² to 2.5mm² (Rigid) / Up to 4.0mm² (Flexible)
• PCT212 Dimensions: 21.8mm (L) x 12.8mm (W) x 14.4mm (H)
• PCT213 Dimensions: 21.8mm (L) x 17.2mm (W) x 14.4mm (H)
• PCT214 Dimensions: 21.8mm (L) x 21.8mm (W) x 14.4mm (H)
• PCT215 Dimensions: 21.8mm (L) x 26.4mm (W) x 14.4mm (H)
• Body Material: Flame-retardant Insulation Plastic
• Actuator Type: Orange Quick-Release Lever Lock
• Voltage Rating: 250V / 4KV
• Current Rating: 32A max

Features

• Reusable spring clamp lever design for tool-free instant wire connections.
• Flame-retardant insulating shell ensures high safety and electrical insulation.
• Suitable for solid, stranded, and flexible copper wiring types.
• Available in 2, 3, 4, and 5 pin variants for versatile splicing configurations.
• Compact structure saves valuable space inside junction boxes and switchboards.
• The PCT21 Series Lever Wire Connector Quick Splice Terminal Block offers a modern, safe, and efficient alternative to traditional electrical tape and wire nuts.
• Featuring a robust orange lever locking mechanism, these connectors allow electricians and hobbyists to join multiple electrical wires quickly without requiring crimping tools or soldering.
• The PCT21 series includes PCT212 (2 Pin), PCT213 (3 Pin), PCT214 (4 Pin), and PCT215 (5 Pin) models to accommodate varying wiring needs.
• Compatible with wire sizes ranging from 0.2mm² up to 4.0mm², these connectors handle up to 32A current reliably.
• The fire-retardant casing prevents electrical short circuits, making them perfect for home lighting, junction boxes, distribution boards, automotive wiring, and industrial control projects.

What is the price of PCT21 Series Lever Wire Connector Quick Splice Terminal Block in Bangladesh?

The latest price of PCT21 Series Lever Wire Connector Quick Splice Terminal Block in Bangladesh is Product ID is required. toProduct ID is required. taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy PCT21 Series Lever Wire Connector Quick Splice Terminal Block in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original PCT21 Series Lever Wire Connector Quick Splice Terminal Block From Dunia.com.bd . We have a few collections of latest Connector to purchase. Order Connector & Terminals Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What models are included in the PCT21 series connector set?
   The PCT21 series includes PCT212, PCT213, PCT214, and PCT215 models.
2. What range of wire sizes is compatible with PCT21 connectors?
   It supports wire sizes from 0.2mm² to 2.5mm² (up to 4.0mm²).
3. Do I need special tools to insert wires into PCT21 connectors?
   No, simply lift the lever, insert wire, and snap lever down.
4. Are these PCT21 lever connectors reusable after disconnection?
   Yes, you can open the orange lever anytime to remove wires.
5. What is the height dimension across all PCT21 models?
   The height across all models in this series is 14.4mm.
6. Can I connect solid and flexible stranded wires together?
   Yes, PCT21 connectors safely clamp both solid and stranded wires.
7. What is the pin count of the PCT215 connector model?
   The PCT215 connector model features 5 input pins.
8. Are lever wire connectors safer than traditional electrical tape joints?
   Yes, they offer flame retardancy, stable contact, and complete insulation.
9. What is the width of the PCT212 2-pin connector model?
   The width of the PCT212 2-pin model is 12.8mm.
10. Are these connectors suitable for residential AC lighting installation?
    Yes, they are ideal for home lighting and mains electrical connections.
