Specifications

• la38 Series Push button
• Model: LA38/203 (also known as 209B)
• Mounting Hole Diameter: 22mm
• Contact Configuration: 1 NO (Normally Open)
• Contact Material: Silver Alloy
• Rated Voltage: 660V AC
• Rated Current: 10A
• Insulation Voltage: 660V
• Electrical Life: ≥ 100,000 cycles
• Mechanical Life: ≥ 1,000,000 cycles
• Operating Force: 5-10N
• Protection Grade: IP65 (front panel)
• Operating Temperature: -25°C to +55°C
• Head Color: Red, Green
• Button Type: Momentary (spring return)
• Terminal Type: Screw terminal

Features

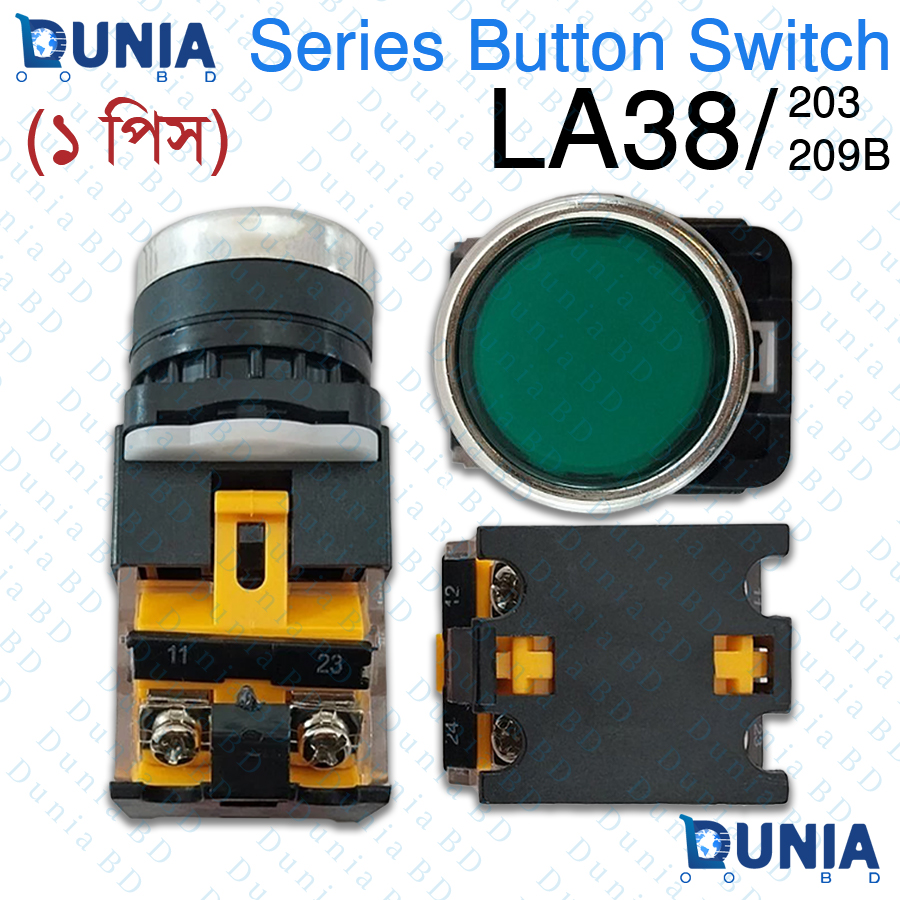

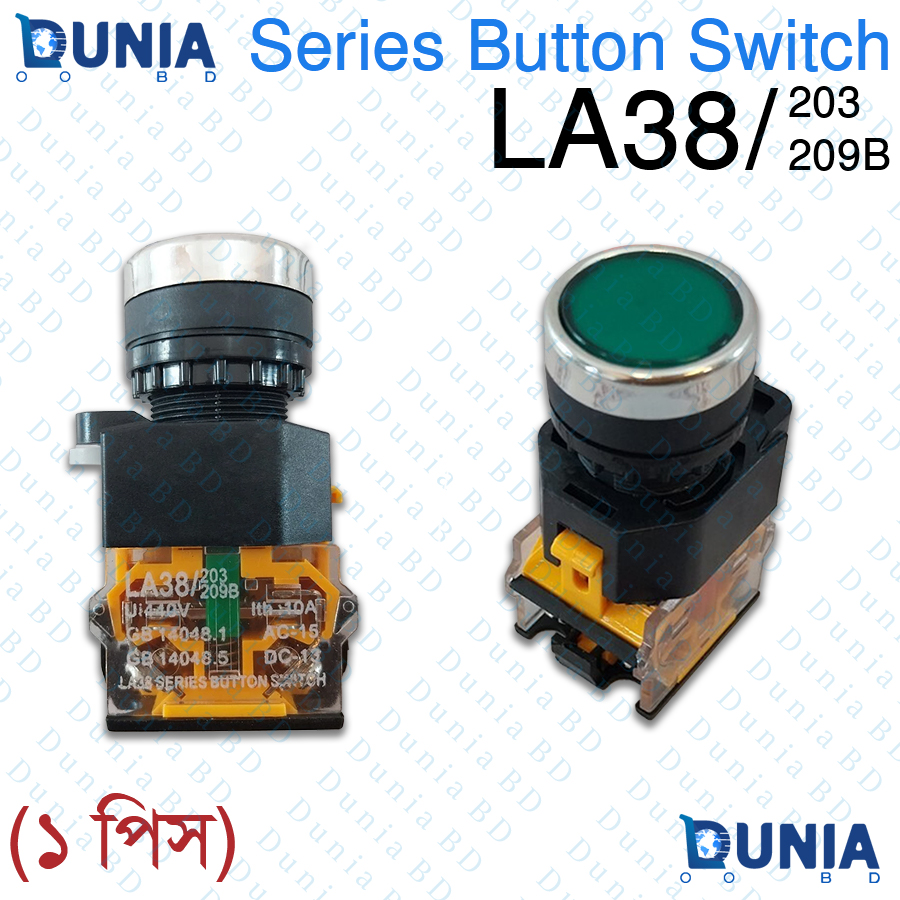

• Premium LA38/203 (209B) Series Industrial Push Button Switch
• 22mm mounting hole (standard size)
• Beautiful Green color head
• 1 NO (Normally Open) contact
• Rated 10A at 660V AC
• High-quality silver alloy contacts
• Long mechanical life: over 1 million operations
• Easy to install with screw terminals

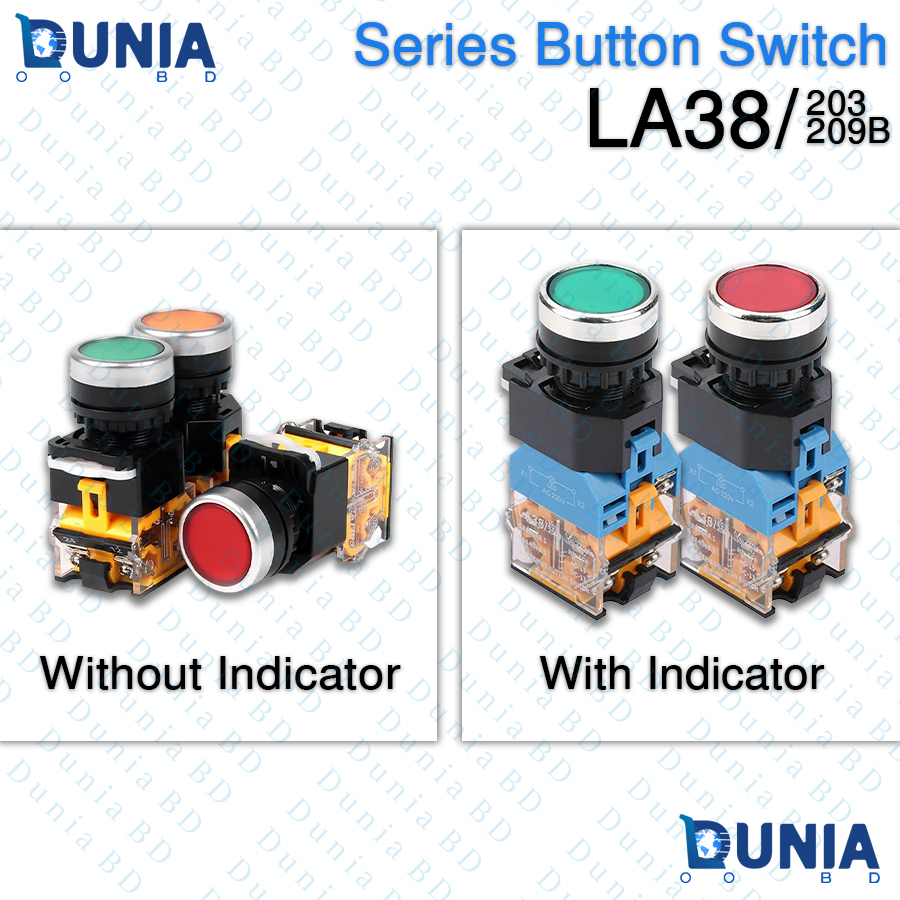

• Optional LED illumination (separate listing)
• IP65 dust & water resistant (front)
• The LA38/203 (209B) Green Push Button Switch is a heavy-duty 22mm industrial-grade push button widely used in control panels, machinery, PLC systems, and automation projects across Bangladesh. Built with high-quality silver alloy contacts and robust construction, this switch guarantees reliable performance even in demanding environments.
• With 1 NO (Normally Open) contact and rated for 10A at 660V, it can handle both low and high-power circuits safely. The bright green head is perfect for START, ON, or GO functions in machines and panels. The switch features a momentary action (press and release – spring return) making it ideal for starting motors, conveyors, pumps, and other equipment.
• Easy screw terminal connection and IP65 front protection make installation quick and safe. Whether you are building a new control panel or replacing old buttons, the LA38 series is the trusted choice of electricians and engineers in Bangladesh.

What is the price of LA38/203 209B Series Push Button Switch 22mm Red Green Indicator & Without Indicator Industrial Series Button Switch in Bangladesh?

The latest price of LA38/203 209B Series Push Button Switch in Bangladesh is Price: ৳125.00 to Price: ৳170.00 taka for 1pcs Switch . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy LA38/203 209B Series Push Button Switch 22mm Red Green Indicator & Without Indicator Industrial Series Button Switch in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original LA38/203 209B Series Push Button Switch From Dunia.com.bd . We have few collection of latest Push Button Switch to purchase. Order Switch Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is LA38/203 or 209B switch?
   It is a 22mm industrial push button switch (LA38 series), model 203/209B is the green momentary type with 1 NO contact.
2. Is it momentary or latching?
   This model is momentary (spring return – press ON, release OFF).
3. How many contacts does it have?
   It comes with 1 NO (Normally Open) contact.
4. Can I get it with LED light?
   Yes, LED version is available separately (with built-in 220V/24V LED).
5. What is the mounting hole size?
   22mm standard (same as most industrial push buttons).
6. Can it handle 220V AC?
   Yes, rated up to 660V AC and 10A current.
7. Is it waterproof?
   Front side is IP65 dust and water resistant.
8. How long does it last?
   Mechanical life over 1 million presses, electrical life over 100,000 cycles.
9. Where is it used?
   Control panels, machines, elevators, generators, PLC panels, automation systems.
10. Which color available?
    Only Red & Green Color are available in our store.
