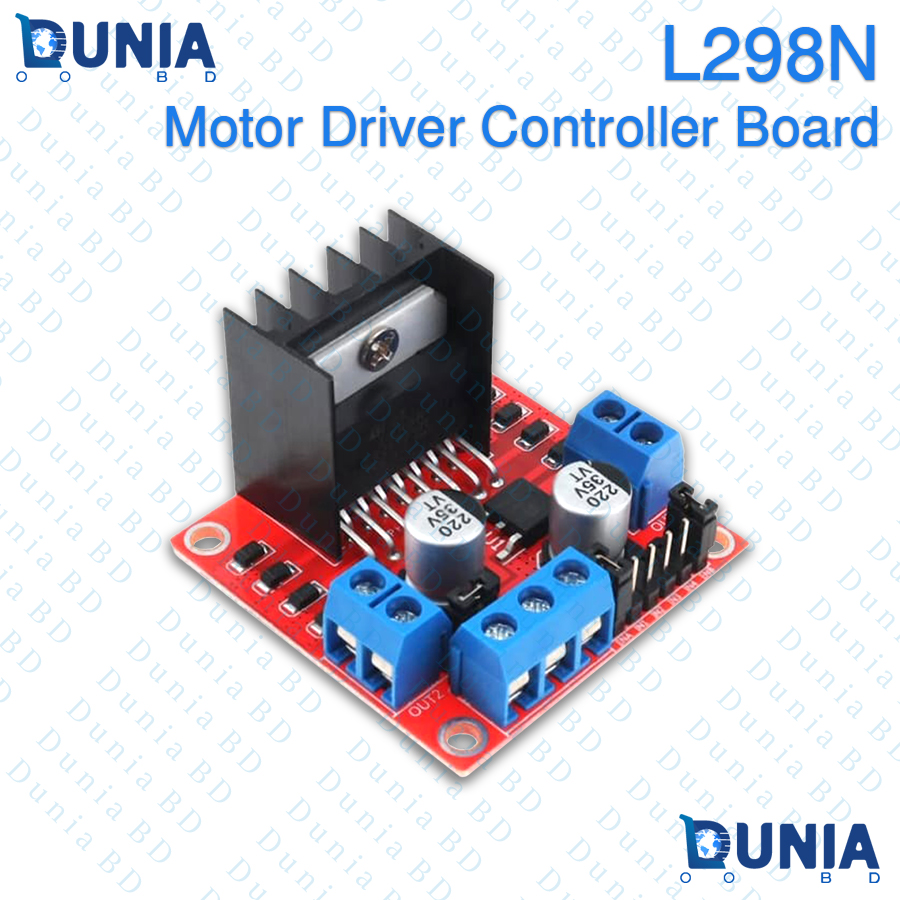

L298N Motor Driver Controller Board Module

Specifications

• L298N Motor Driver Controller Board Module is a high-voltage, high-current dual full-bridge driver designed to accept standard TTL logic levels.
• Driver Chip: L298N dual H-bridge driver chip
• Drive Voltage: 5V – 35V DC
• Drive Current: 2A per bridge (Maximum single bridge continuous current)
• Logical Current Range: 0mA – 36mA
• Logical Voltage: 5V DC
• Maximum Power Consumption: 20W (at temperature T = 75°C)
• Control Signal Input Level: High 2.3V ≤ Vin ≤ Vss; Low -0.3V ≤ Vin ≤ 1.5V
• Onboard 5V Regulator: Available (can supply power to external circuits if drive voltage is >7V)

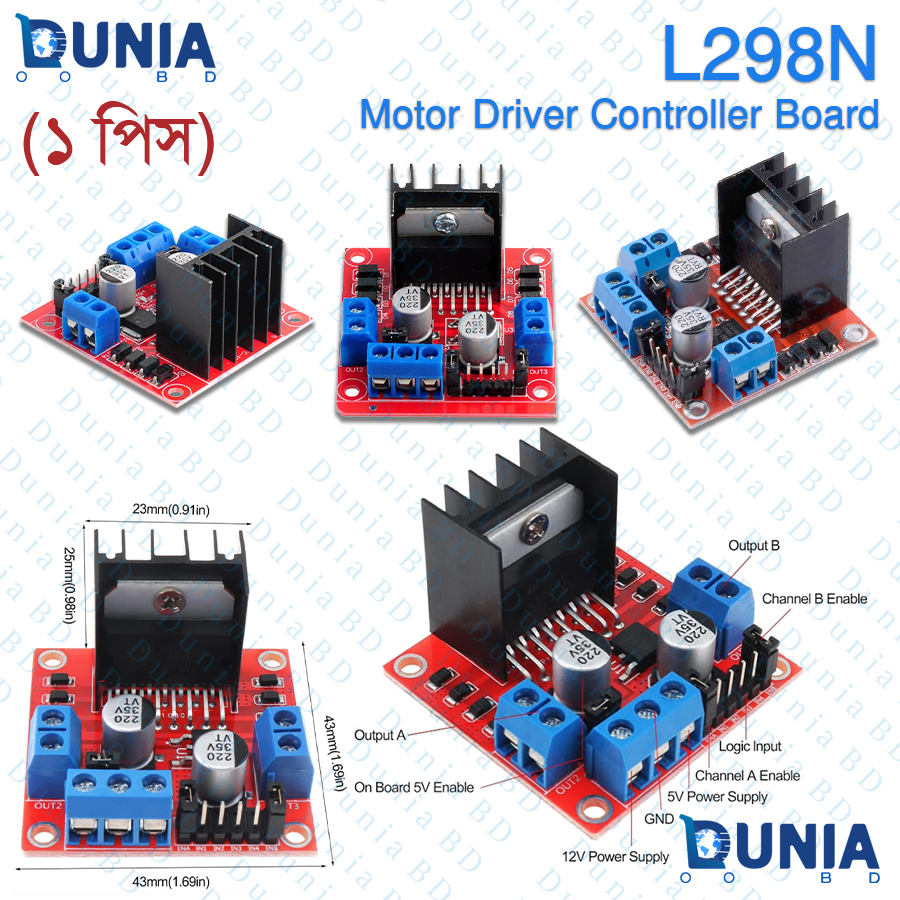

• Board Size: 43mm x 43mm x 25mm
• Heatsink Height: 23mm
• Weight: 26g

Features

• High-performance L298N dual H-bridge driver configuration
• Features a large heavy-duty aluminum heatsink for optimal heat dissipation
• Onboard 5V regulator jumper to easily enable or disable logic voltage protection

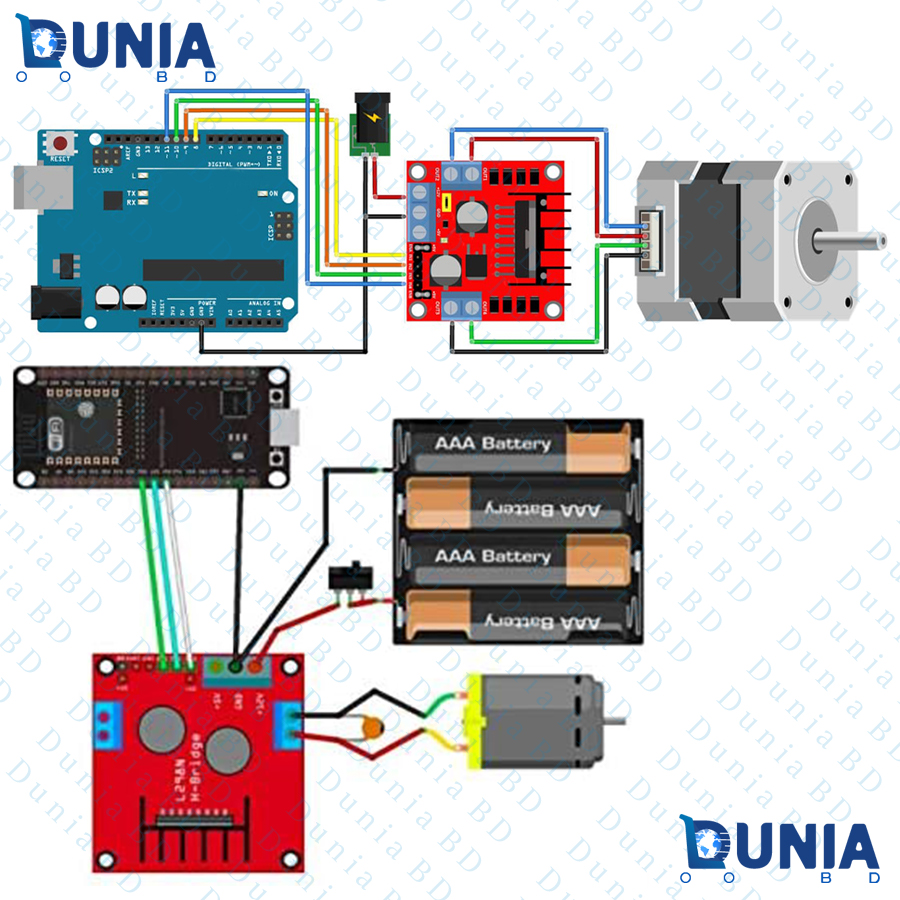

• Capable of driving two independent DC motors or one 2-phase 4-wire stepper motor
• Integrated flyback diodes for back-EMF protection against current spikes
• Clear screw terminal blocks for easy output wiring and power input connections
• The L298N Motor Driver Controller Board Module is the most widely trusted and reliable solution for robotics, automated vehicles, and custom DIY electronic projects requiring precise motor mechanics.
• At its core is the robust L298N dual H-bridge integrated circuit, capable of effortlessly managing inductive loads such as relays, solenoids, DC motors, and stepper motors.
• This module operates smoothly within a broad driver voltage spectrum from 5V up to 35V DC, delivering a continuous 2A current per channel, making it ideal for powering multiple motors simultaneously.
• The design features a substantial 23mm integrated black aluminum heatsink that ensures structural cooling and eliminates overheating during high-performance peak loads.
• To simplify your circuit designs, the module includes a handy onboard 5V regulator.
• When your input motor power exceeds 7V, this regulator can step down the voltage to provide a stable 5V output logic supply for microcontrollers like Arduino, NodeMCU, or Raspberry Pi.
• With convenient high-quality screw terminal ports for Output A, Output B, and power management, along with standard 0.
• 1-inch pitch male header pins for directional logic input control, this driver module offers seamless connectivity, ultimate endurance, and standard TTL logic flexibility for creators worldwide.

What is the price of L298N Motor Driver Controller Board Module in Bangladesh?

The latest price of L298N Motor Driver Controller Board Module in Bangladesh is Price: ৳235.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy L298N Motor Driver Controller Board Module in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original L298N Motor Driver Controller Board Module From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the main chip used in this module?
   It features the high-current L298N dual H-bridge motor driver chip.
2. What is the maximum voltage support for motors?
   It supports a motor drive input voltage from 5V up to 35V DC.
3. How many DC motors can this board control?
   It can independently control up to two DC motors simultaneously.
4. Can I control a stepper motor with this board?
   Yes, it can drive one 2-phase 4-wire stepper motor effectively.
5. What is the maximum current per channel?
   It delivers a maximum peak current of 2A per channel bridge.
6. When should I keep the 5V jumper enabled?
   Keep it enabled when your motor power supply is between 7V and 12V.
7. Does the package include a heatsink?
   Yes, it comes pre-assembled with a high-grade aluminum cooling heatsink.
8. Can it connect directly to Arduino boards?
   Yes, it connects easily using standard male-to-female jumper wires.
9. Is there short circuit safety integrated?
   It includes safety freewheeling diodes to protect against reverse EMF spikes.
10. What are the physical dimensions of the module?
    The dimensions are exactly 43mm by 43mm with a 25mm thickness.
