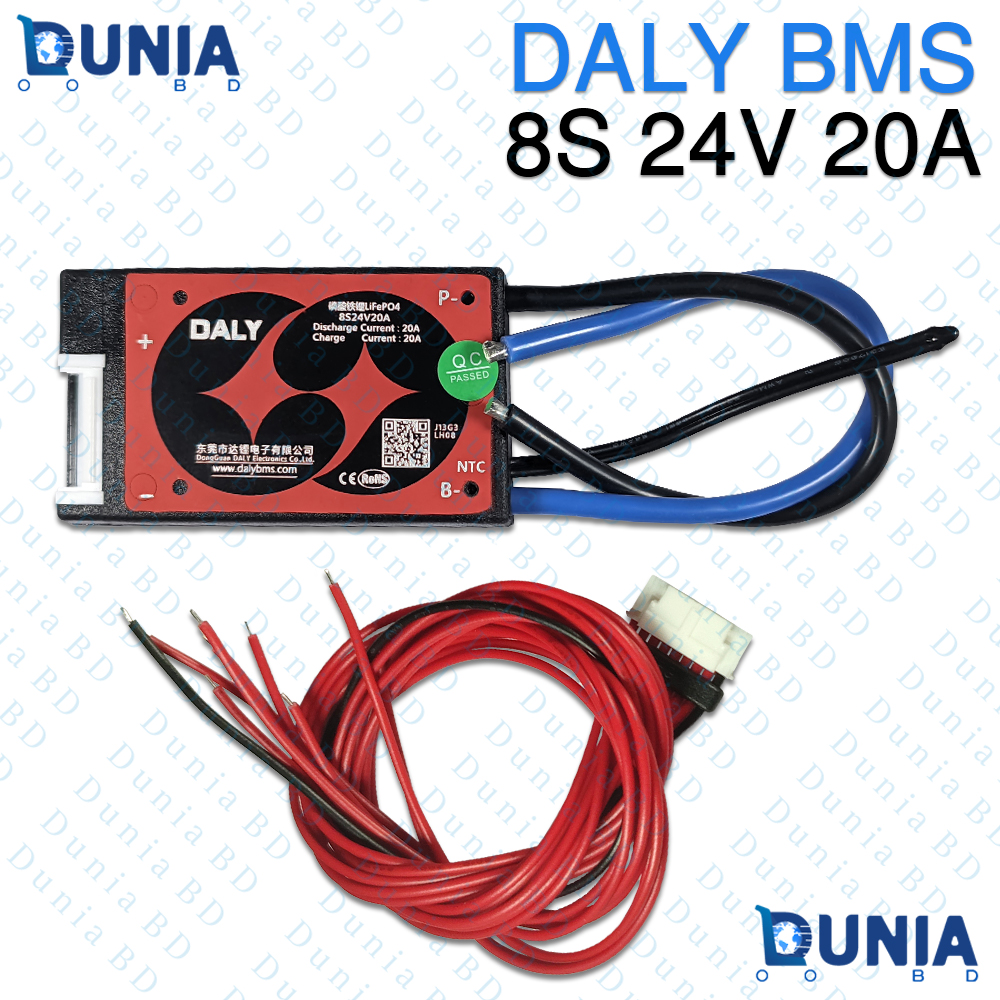

DALY 8S 24V 20A LiFePO4 BMS with Balancing Board for 3.2V Cell Pack

Specifications

• DALY 8S 24V 20A LiFePO4 BMS with Balancing Board is specifically built for 8-series 3.2V nominal Lithium Iron Phosphate cell banks.
• Battery Chemistry Support: LiFePO4 / LFP (3.2V nominal, 3.65V charging cutoff per cell).
• Continuous Discharge Current: 20A max continuous output.
• Continuous Charge Current: 20A max.
• Integrated Passive Balancing: Active balance detection at 3.5V/3.6V with 30mA to 50mA balance current.
• Protection Parameters: Overcharge detection at 3.75V±0.05V, overdischarge detection at 2.2V±0.05V.
• Thermal Monitoring: Includes external NTC thermal sensor probe for high-temperature shutdown.
• Enclosure Rating: IP65 rated waterproof, dustproof, and shockproof injection-molded casing.

Features

• Integrated Passive Cell Balancing: Features precision voltage sensing across all 8 series channels to equalize individual cell voltages during the charge stage, preventing capacity loss.
• IP65 Waterproof & Dustproof Casing: Built with DALY signature sealed injection housing for superior moisture protection, shock resistance, and rugged durability.
• Comprehensive Multi-Protection Suite: Monitors and safeguards against over-charge, over-discharge, over-current, short-circuit, and high thermal limits.
• Dedicated NTC Temperature Control: Features an external temperature probe to monitor real-time thermal conditions during high-rate charging and heavy load discharging.
• Long Product Description: The original DALY 8S 24V 20A LiFePO4 BMS is a premium battery management system designed to extend the lifespan and protect 24V (25.6V nominal) LFP battery assemblies. Engineered with high-grade MOSFETs and a heavy-duty heatsink architecture, this BMS effectively delivers 20A continuous load current while maintaining cool operational temperatures. The module includes a multi-wire balance wire harness and built-in passive balancing circuits that monitor individual cell voltages, keeping all series cells matched for maximum run-time and cell longevity. Its IP65 waterproof housing makes it an ideal protective solution for solar energy storage systems, electric bicycles, mobility equipment, and off-grid DIY battery setups.

What is the price of DALY 8S 24V 20A LiFePO4 BMS with Balancing Board for 3.2V Cell Pack in Bangladesh?

The latest price of DALY 8S 24V 20A LiFePO4 BMS with Balancing Board for 3.2V Cell Pack in Bangladesh is Price: ৳980.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy DALY 8S 24V 20A LiFePO4 BMS with Balancing Board for 3.2V Cell Pack in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original DALY 8S 24V 20A LiFePO4 BMS with Balancing Board for 3.2V Cell Pack From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the working voltage of the DALY 8S 20A LiFePO4 BMS?
   It is designed for 8S 24V nominal (25.6V) LiFePO4 battery pack configurations.
2. Does this DALY BMS board feature passive cell balancing?
   Yes, it includes built-in passive cell balancing to balance individual cell voltages.
3. What is the maximum continuous discharge current limit?
   The continuous discharge current rating is up to 20 Amperes.
4. Is the DALY 8S 20A BMS board waterproof?
   Yes, it comes with an IP65 rated waterproof and dustproof sealed casing.
5. Does it include an NTC temperature sensor wire?
   Yes, an integrated NTC probe is attached for thermal protection during operations.
6. Can I use this BMS with 3.7V Lithium-Ion (NMC) cells?
   No, this module is specifically calibrated for 3.2V nominal LiFePO4 cells only.
7. What is the overcharge protection voltage threshold?
   The overcharge detection voltage is calibrated at 3.75V ± 0.05V per cell.
8. Is the balance wire harness included in the box?
   Yes, a multi-pin sample balance wire harness is included with the package.
9. Can I use this BMS for 24V solar battery storage banks?
   Yes, it is highly recommended for DIY 24V solar and inverter battery systems.
10. How can I purchase this original DALY BMS in BD?
    You can order online through our website or visit our local warehouse directly.
