8S 24V 30A LiFePO4 BMS with Balancing for 3.2V Battery Pack HBJ-PT6334

Specifications

• 8S 24V 30A LiFePO4 BMS HBJ-PT6334 with Balancing is specifically engineered for 8-string 3.2V nominal LiFePO4 battery packs.
• Compatible Battery Chemistry: LiFePO4 (3.2V nominal, 3.65V charging cutoff).
• Rated Continuous Discharge Current: 30A.
• Common Port Design: Shared common port configuration for both charging and discharging.
• Integrated Balance Function: Built-in passive balancing circuit to equalize individual cell voltages and extend pack lifespan.

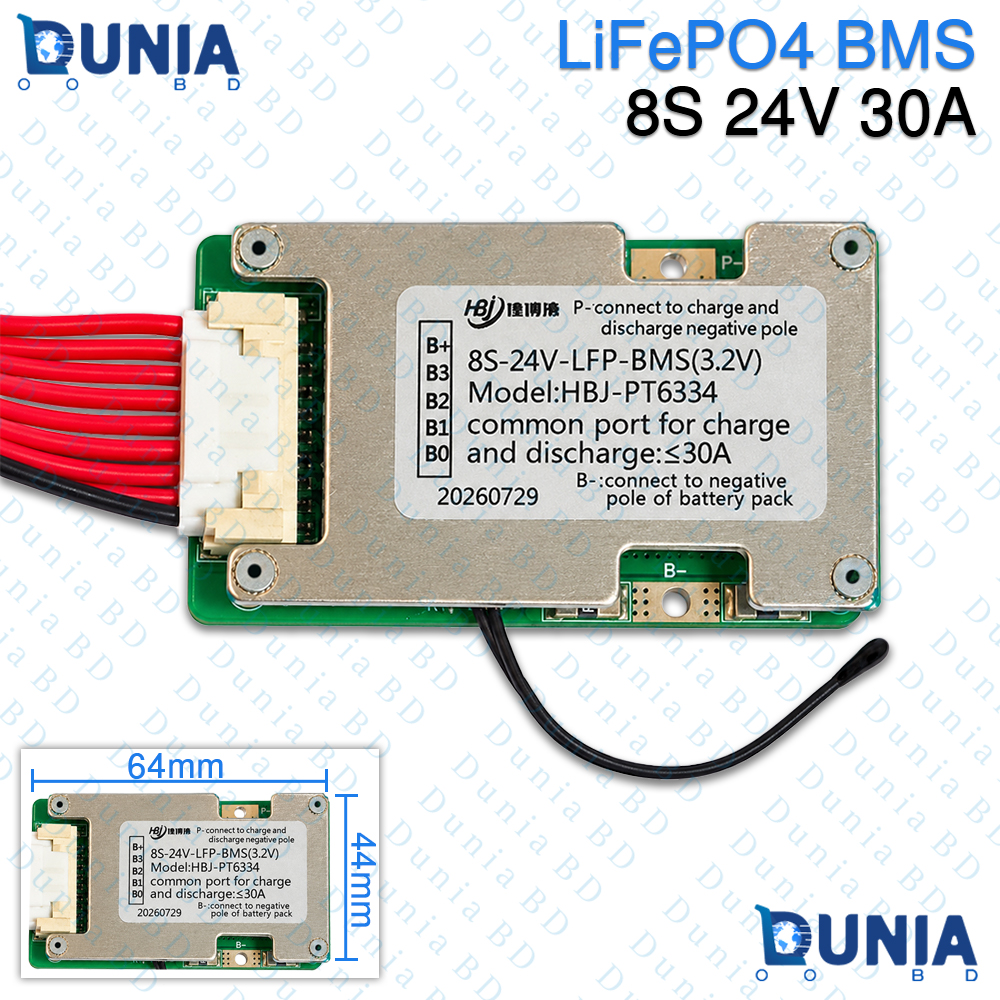

• Compact Physical Dimensions: 64mm x 44mm aluminum heatsink plate footprint for efficient thermal dissipation.
• Wiring Configuration: Multi-pin balance lead harness supporting B0 through B+ terminals.

Features

• Reliable 8S Protection: Offers robust monitoring and protection against over-charge, over-discharge, over-current, and short-circuit conditions for 24V systems.
• Built-In Cell Balancing: Features integrated passive balancing functionality to ensure all series-connected cells maintain uniform voltage levels during charge cycles.
• Common Port Architecture: Employs a simplified wiring scheme using a unified negative pole connection (P-) for both charging sources and load discharging.
• Compact and Durable Design: Built with a protective aluminum shielding plate measuring 64mm x 44mm, ensuring robust physical protection and stable heat management.
• Long Product Description: The HBJ-PT6334 8S 24V 30A LiFePO4 BMS is an essential safety and management component designed for custom 3.2V lithium iron phosphate battery assemblies.
• Whether you are building energy storage systems, backup power supplies, or custom motorized equipment packs, this BMS ensures safe operation by continuously monitoring individual cell voltages and total pack current.
• The integrated passive balancing circuit actively works to bring higher-voltage cells down during the final charging stage, preventing cell drift and maximizing overall battery capacity and lifespan.
• Featuring a common port layout and heavy-duty connection pads, it simplifies wiring while delivering dependable 30A continuous output performance.

What is the price of HBJ-PT6334 8S 24V 30A LiFePO4 BMS with Balancing for 3.2V Battery Pack in Bangladesh?

The latest price of HBJ-PT6334 8S 24V 30A LiFePO4 BMS with Balancing for 3.2V Battery Pack in Bangladesh is Price: ৳655.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy HBJ-PT6334 8S 24V 30A LiFePO4 BMS with Balancing for 3.2V Battery Pack in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original HBJ-PT6334 8S 24V 30A LiFePO4 BMS with Balancing for 3.2V Battery Pack From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the nominal voltage supported by the HBJ-PT6334 BMS?
   It supports 8-string 24V nominal LiFePO4 battery configurations.

2. Does this BMS include cell balancing features?
   Yes, it features an integrated passive balancing circuit to equalize cell voltages.

3. What is the continuous discharge current rating?
   The continuous discharge current rating is up to 30A.

4. Is it a separate port or common port BMS?
   This model uses a common port design for both charging and discharging.

5. What are the physical dimensions of the BMS board?
   The board measures approximately 64mm in length and 44mm in width.

6. Which battery chemistry is this module designed for?
   It is specifically designed for 3.2V nominal LiFePO4 (Lithium Iron Phosphate) cells.

7. How do I connect the negative terminals?
   The B- terminal connects to the battery pack negative pole, while P- handles charge and discharge.

8. Can I use this BMS for DIY 24V solar battery packs?
   Yes, it is ideal for DIY 24V energy storage and solar power systems.

9. What protections does the HBJ-PT6334 provide?
   It protects against over-charging, over-discharging, over-current, and short circuits.

10. Where can I purchase this BMS in Bangladesh?
    You can buy it directly from our website or visit our warehouse during working hours.
