7S 24V 20A Li-ion BMS 18650 Protection Board with Balancing HXYP-TY-T20

Specifications

• 7S 24V 20A Li-ion BMS 18650 Protection Board HXYP-TY-T20 with Balancing is engineered specifically for 7-series 24V (29.4V full charge) lithium-ion battery packs.
• Compatible Battery Chemistry: Li-ion / Lithium-Ion (3.7V nominal, 4.2V fully charged per cell).
• Continuous Discharge Current: 20A maximum continuous output.
• Port Configuration: Common port layout for unified charging and discharging negative terminal (P-).
• Passive Balancing Function: Built-in passive cell balancing circuit with back-mounted balance resistors.

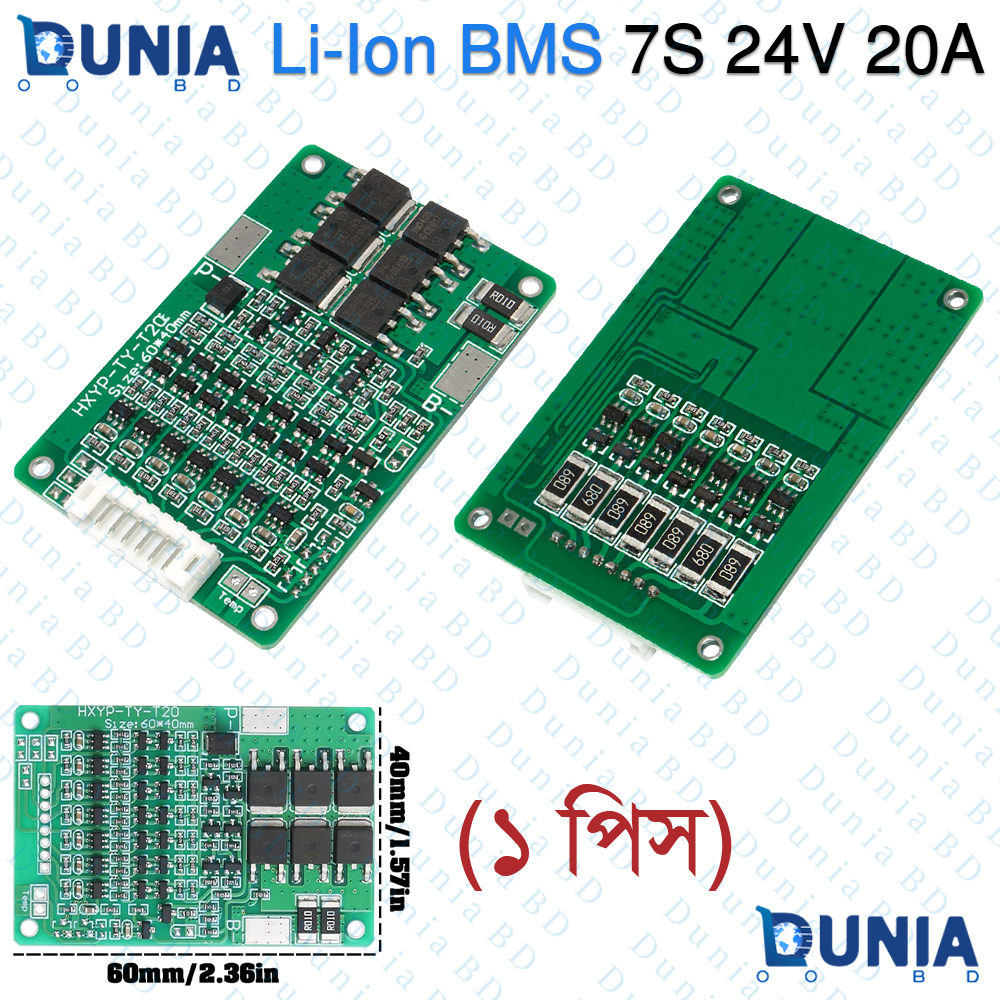

• Compact Board Dimensions: 60mm x 40mm (2.36inch x 1.57inch) compact footprint.

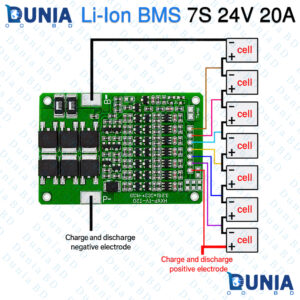

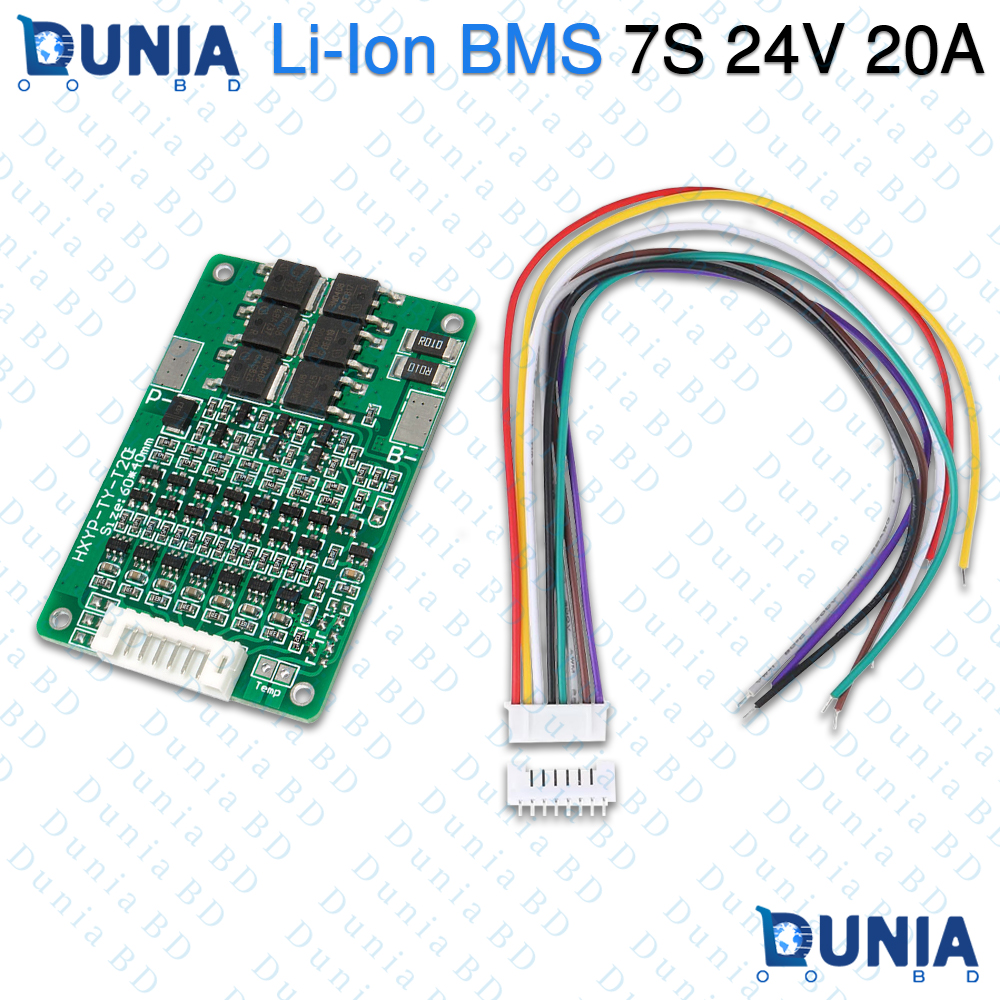

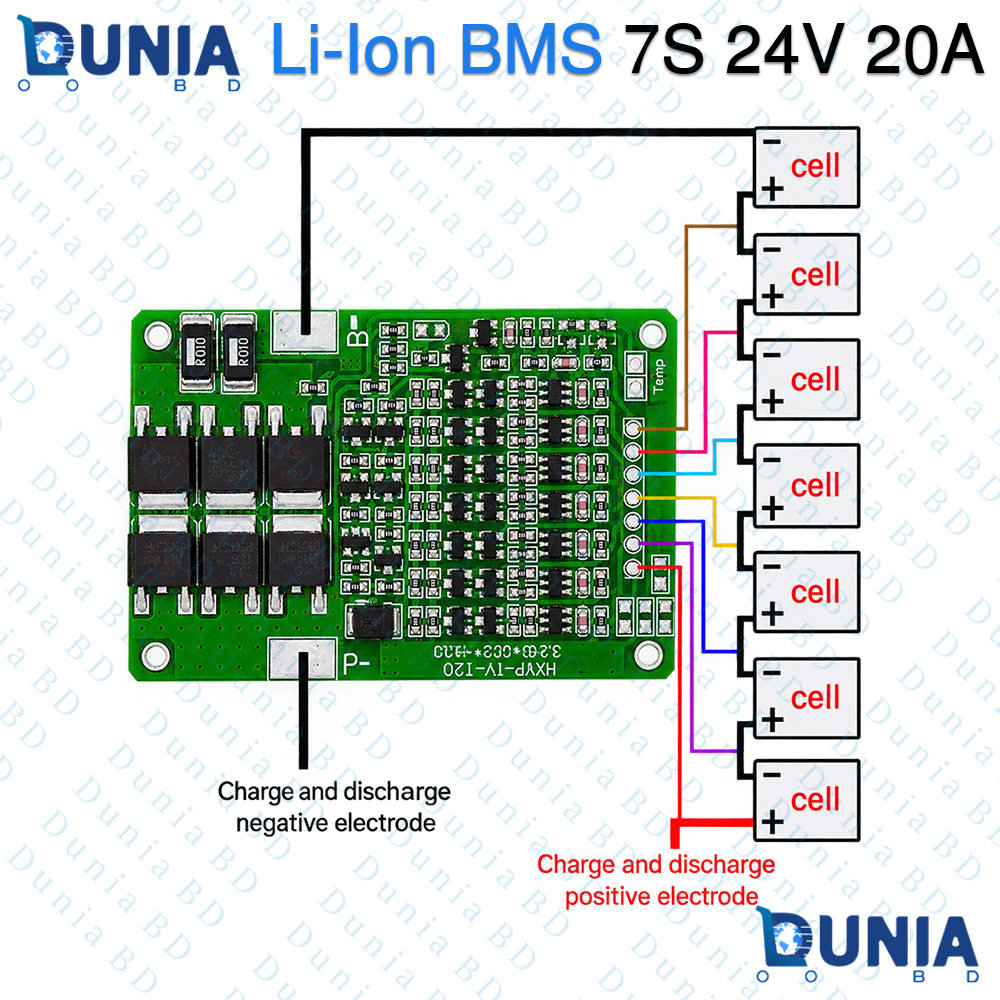

• Terminal Connections: Heavy-duty B- power pad, P- charge/discharge pad, and 8-pin balance wiring connector interface.

Features

• Integrated Passive Cell Balancing: Features precision voltage monitoring and passive balancing resistors on the rear board to equalize individual series cell voltages during charging cycles.
• Comprehensive Multi-Protection Suite: Built with high-power MOSFETs offering full protection against overcharge, over-discharge, over-current, and short-circuit conditions.
• Simplified Common Port Design: Shared P- terminal simplifies circuit wiring by using a single negative lead for both charging inputs and load outputs.
• Ultra-Compact Circuit Footprint: Measuring just 60mm by 40mm, it fits easily into tight 18650 and 21700 battery enclosure spaces.
• Long Product Description: The HXYP-TY-T20 7S 24V 20A Li-ion BMS is a high-efficiency battery protection board designed to manage 7-series 18650, 21700, or lithium pouch battery assemblies. Built with multi-MOSFET protection switches and back-mounted passive balancing components, this module maintains voltage consistency across all 7 series cell banks during charging, preventing cell imbalance and extending total battery lifespan. The board includes a multi-wire balance wiring harness for straightforward installation. It serves as an optimal protection and balancing solution for 24V electric bicycles, power tool battery replacement packs, solar energy storage units, and custom DIY lithium projects.
