PCA9685 16 Channel 12 Bit PWM Servo Driver Board I2C Interface

Specifications

• PCA9685 16 Channel 12 Bit PWM Servo Driver Board I2C Interface 1Pack is the primary system component.
• Product Type: 16-Channel 12-Bit PWM / Servo Driver Controller
• Core Driver Chip: Original PCA9685 Hardware Controller
• Communication Interface: I2C Serial Interface with hardware address pins (A0-A5)
• Logic Operating Voltage: DC 3V to 5V power grid
• Servo Supply Voltage (V+): DC 6V Maximum limit (reverse polarity protected terminal)
• PWM Resolution and Frequency: 12-bit resolution per channel, programmable frequency from 40Hz to 1000Hz

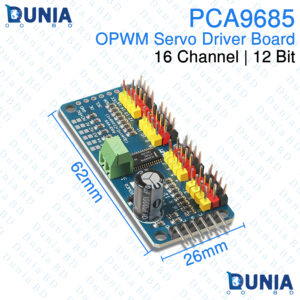

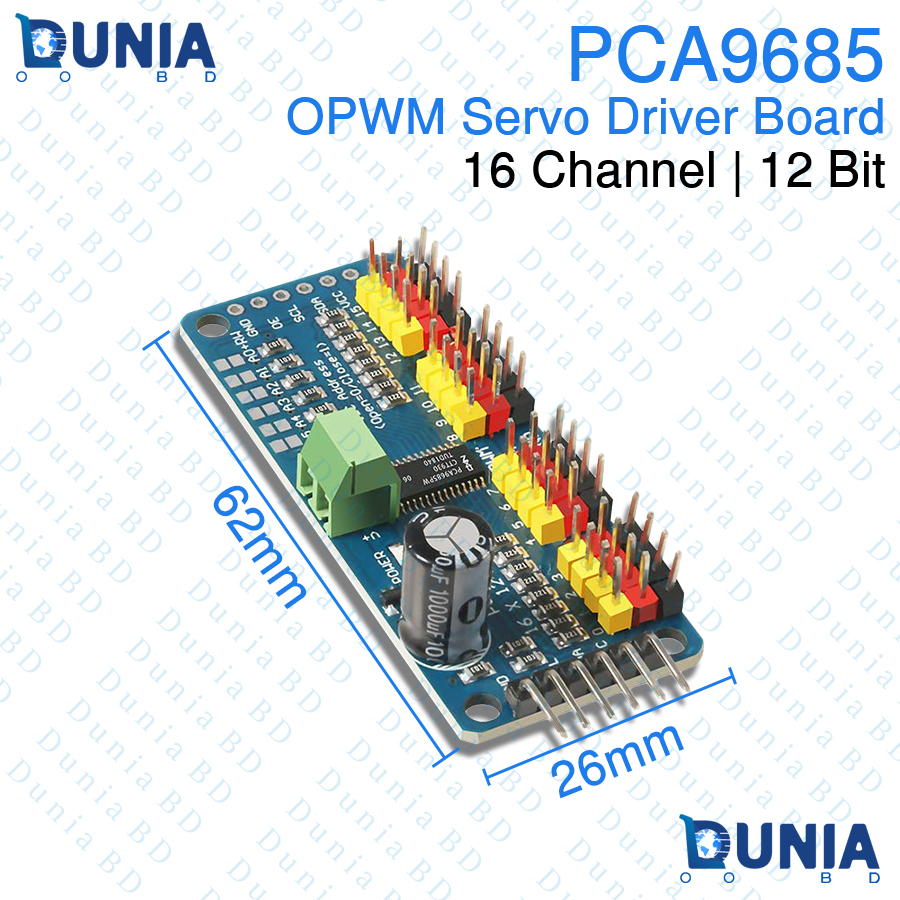

• Main Module Dimensions: PCB Board Length 62mm, Width 26mm compact robotics layout
• Package Includes: 1 piece 16-channel PCA9685 PWM driver board

Features

• Controls up to 16 servos simultaneously via only 2 microcontroller pins using the standard I2C bus.
• Onboard green screw terminal block provides a dedicated, high-current power input for external servos.
• Features an integrated 1000uF central filter capacitor ensuring smooth power distribution during high spikes.
• Configurable hardware address pads allow up to 62 driver boards to cascade together on a single I2C line.
• The PCA9685 16 Channel 12 Bit PWM Servo Driver Board I2C Interface 1Pack is a high-performance, industry-standard multi-channel controller designed for complex robotics, hexapod walkers, robotic arms, and multi-LED fading arrays.
• Operating on a flexible 3V to 5V logic supply, this board relieves your main microcontroller from generating resource-heavy PWM signals by managing all 16 channels independently via an internal clock.
• Each of the 16 outputs delivers crisp 12-bit resolution, providing exceptional precision for angling servomotors or dimming lights smoothly between 40Hz and 1000Hz.
• The layout features color-coded pin headers for quick servo plugging, a built-in polarity-protected power terminal block, and dedicated address pads (A0-A5) to prevent device conflicts.
• It is the absolute benchmark choice for Arduino, Raspberry Pi, and STM32 advanced automation layouts.
