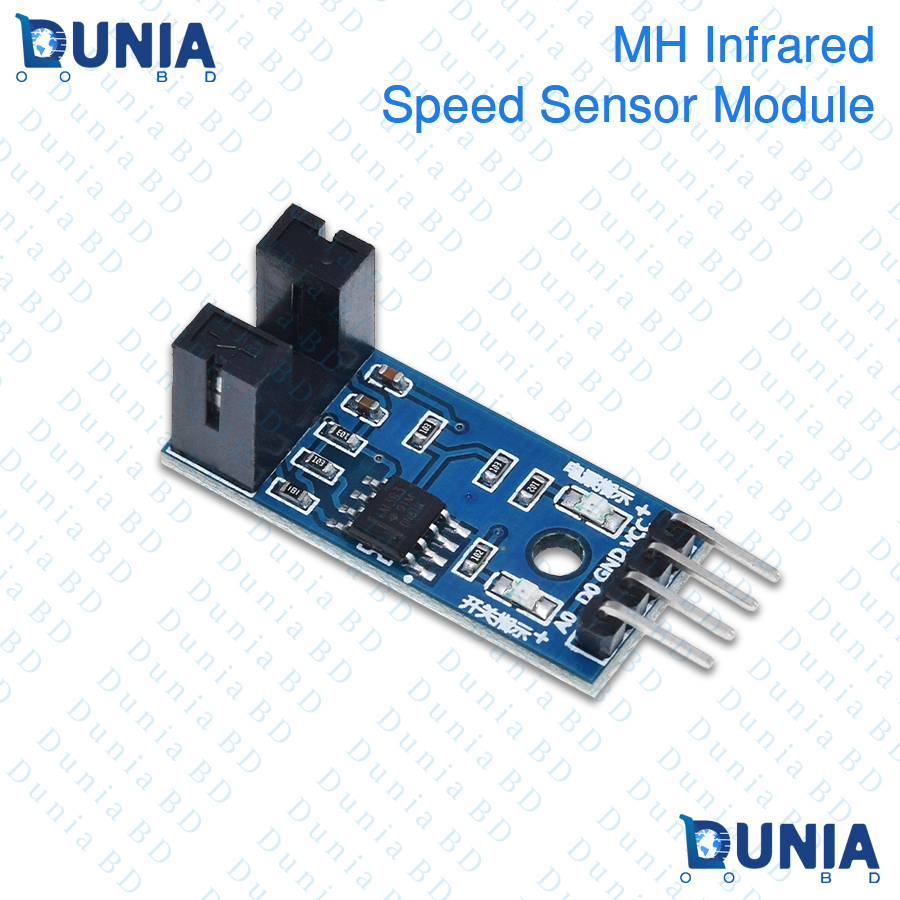

MH Infrared Speed Sensor Module LM393 Slotted Optocoupler

Specifications

• MH Infrared Speed Sensor Module LM393 Slotted Optocoupler 1Pack is the primary system component.
• Product Type: Slotted Optocoupler Infrared Count Speed Sensor
• Model Series: MH-Sensor-Series High Precision Variant
• Core Comparator IC: LM393 Dual Differential Comparator
• Operating Voltage: DC 3.3V to 5V power grid
• Output Signal Type: Digital TTL Switching Output (DO) and Analog Output (AO – inactive in this configuration)
• Slot / Groove Width: 5mm optical path opening

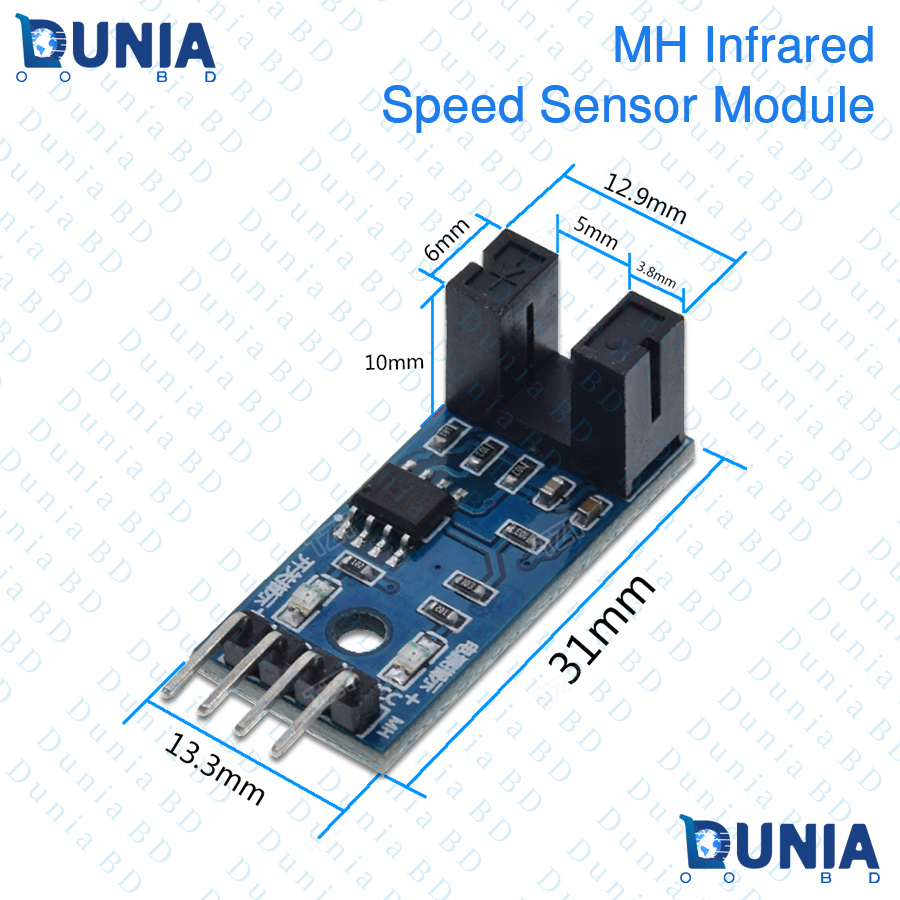

• Main Module Dimensions: PCB Length 31mm, Total Terminal Base Width 13.3mm, Optocoupler Width 12.9mm, Slot Depth 10mm
• Package Includes: 1 piece MH infrared speed sensor module

Features

• Built-in high-precision 5mm optical slot facilitates instant counting when paired with an encoder disk.
• Utilizes a reliable LM393 comparator chip ensuring clean, stable digital square-wave pulse waveforms.
• Equipped with dual onboard LED status indicators tracking real-time power supply and signal changes.
• Features an integrated M3 mounting hole allowing quick, vibration-resistant placement on robot chassis.
• The MH Infrared Speed Sensor Module LM393 Slotted Optocoupler 1Pack is a highly accurate, industry-standard optical counting tool designed for smart car chassis tracking, motor speed measurement, and pulse counting automation.
• Operating smoothly within a 3.3V to 5V DC power envelope, this module centers around a 5mm wide slotted infrared optocoupler housing.
• When an opaque object or encoder wheel tooth blocks the optical path inside the groove, the digital output pin (DO) instantly generates a crisp TTL logic high signal, which can be direct-coupled to microcontrollers like Arduino or Raspberry Pi.
• The board architecture features a precise LM393 comparator to eliminate mechanical signal bounce and noise interference, outputting flawless square waves.
• Compact yet robust with a pre-drilled M3 mounting slot, it is the perfect fit for industrial tachometers, automated production line counters, and DIY educational robotics.

What is the price of MH Infrared Speed Sensor Module LM393 Slotted Optocoupler in Bangladesh?

The latest price of MH Infrared Speed Sensor Module LM393 Slotted Optocoupler in Bangladesh is Price: ৳200.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy MH Infrared Speed Sensor Module LM393 Slotted Optocoupler in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original MH Infrared Speed Sensor Module LM393 Slotted Optocoupler From Dunia.com.bd . We have a few collections of latest Arduino Accessories to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the main driver IC utilized on this sensor module?
   The module incorporates a stable LM393 comparator IC chip.
2. What is the recommended input voltage threshold?
   It runs efficiently on any DC power supply between 3.3V and 5V.
3. How wide is the infrared optical reading slot?
   The slotted optocoupler groove features an exact 5mm spacing width.
4. What are the primary PCB dimensions?
   The module body features a 31mm length and 13.3mm terminal width.

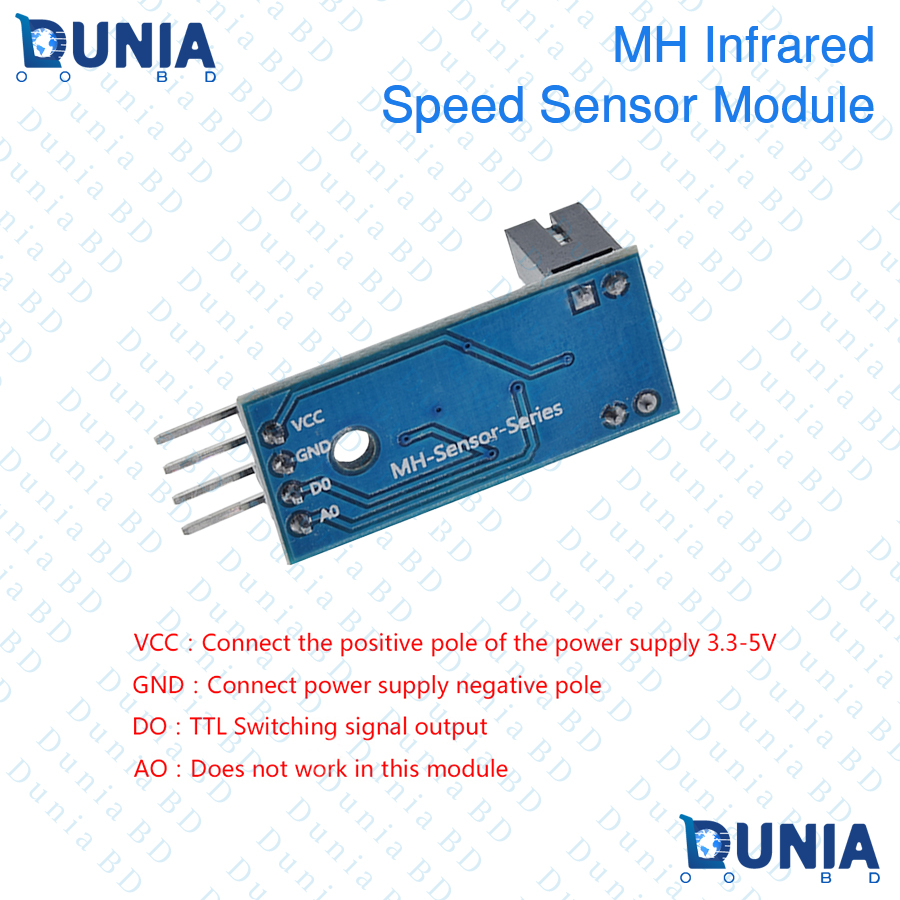

5. Which pin outputs the counting signal for microcontrollers?
   The DO (Digital Output) pin delivers the clean TTL switching pulses.
6. Does the AO pin function on this specific board?
   No, the AO (Analog Output) does not work in this particular module version.
7. Are there visual indicators on the sensor board?
   Yes, it features onboard power indicators and digital output signal LEDs.
8. How many sensor units are included inside this product?
   The kit contains exactly 1 piece MH infrared speed sensor module.
9. What is the purpose of the integrated circular hole?
   It is a fixed M3 mounting hole designed for secure screw attachment.
