Specifications

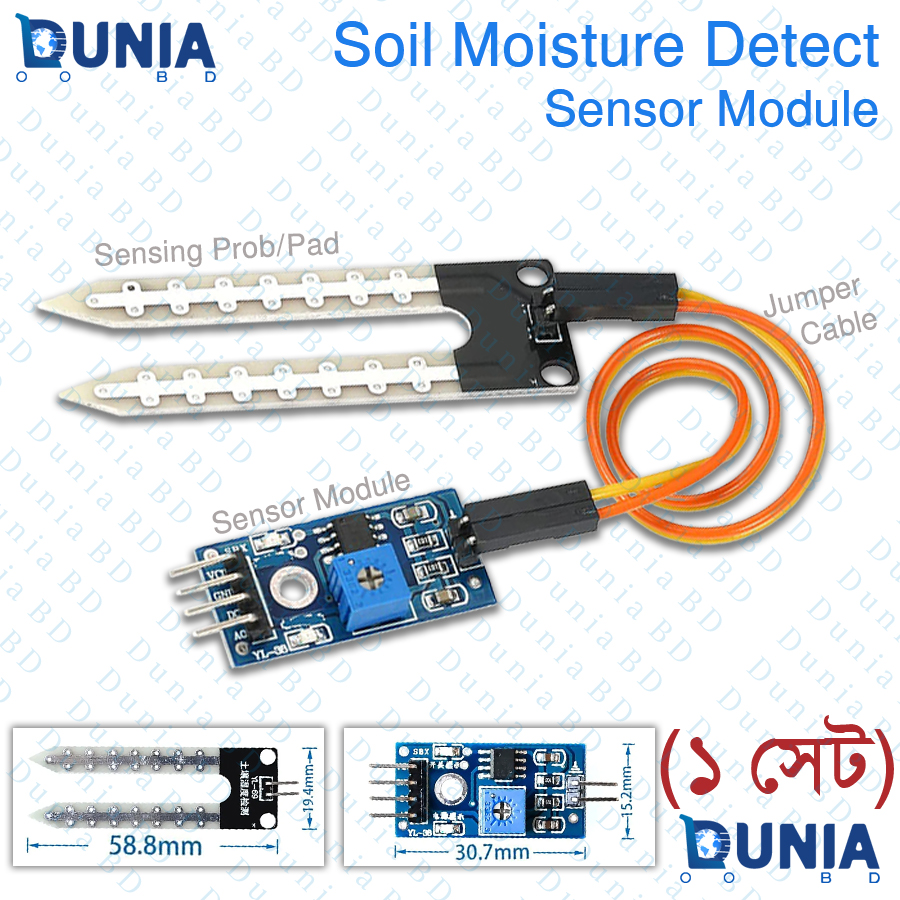

• Soil Moisture Sensor Module
• Module Type: Capacitive/Resistive Soil Moisture Sensor
• Probe Length: 58.8mm
• Control Board Size: 30.7mm x 15.2mm
• Operating Voltage: 3.3V – 5V DC
• Output: Analog (0-1023) + Digital (High/Low)
• Sensitivity: Adjustable via potentiometer
• Interface: 4-pin (VCC, GND, A0, D0)
• LED Indicators: Power LED, Output LED
• Probe Material: Corrosion-resistant alloy
• Included: 1 x Probe, 1 x Control Board, 1 x Jumper Cable
• Cable Length: ~20cm (orange)

Features

• Detects soil moisture level
• Long probe: 58.8mm for deep insertion
• Analog (A0) and Digital (D0) output
• Adjustable threshold via potentiometer
• Dual output for precise control
• Includes jumper cable
• LED indicators (power & output)
• Operating voltage: 3.3V to 5V
• Corrosion-resistant probe
• Ideal for automatic plant watering

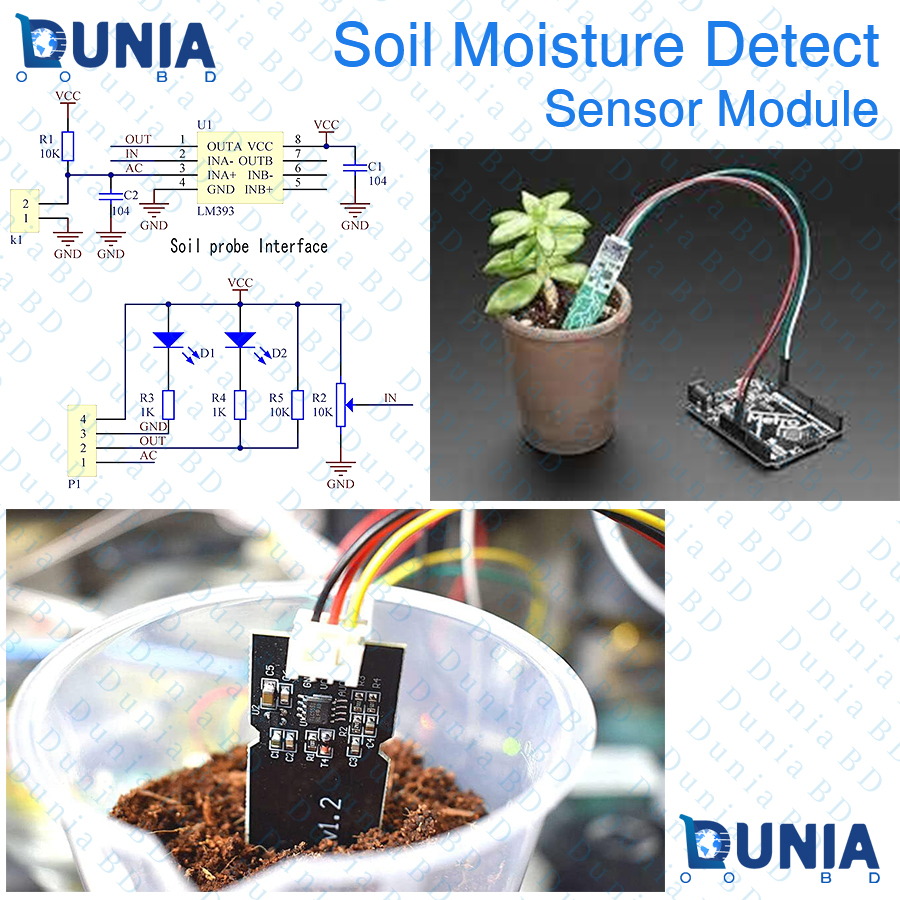

• The Soil Moisture Sensor Module helps monitor soil humidity for plants, gardens, and farms. It uses two conductive probes that measure resistance between them—dry soil has high resistance, wet soil has low.
• The analog output (A0) provides a value from 0 (wet) to 1023 (dry), while the digital output (D0) goes HIGH when moisture falls below the set threshold. Adjust sensitivity using the onboard potentiometer.
• Perfect for automated irrigation systems, smart pots, and greenhouse monitoring. Works seamlessly with Arduino, ESP32, and Raspberry Pi.

What is the price of Soil Moisture Sensor Module with Probe with Analog & Digital Output in Bangladesh?

The latest price of Soil Moisture Sensor in Bangladesh is Price: ৳110.00 taka for 1 Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Soil Moisture Sensor Module with Probe with Analog & Digital Output in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original Soil Moisture Sensor From Dunia.com.bd . We have few collection of latest Arduino Accessories to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. How deep should I insert the probe?
   Insert 50-58mm into soil.
2. What is the output range?
   Analog: 0 (wet) to 1023 (dry).
3. Can I leave it in soil permanently?
   Yes, probe is corrosion-resistant.
4. Does it need calibration?
   No, but adjust potentiometer for your soil type.
5. What voltage is required?
   3.3V to 5V DC.
6. Is the probe waterproof?
   Probe is corrosion-resistant; avoid full submersion of board.
7. How to connect to Arduino?
   VCC → 5V, GND → GND, A0 → Analog, D0 → Digital.
8. Can it detect water in air?
   No, designed for soil insertion.
9. What is the digital output?
   HIGH when soil is dry (below threshold).
10. Suitable for sandy soil?
    Yes, works with all soil types.
