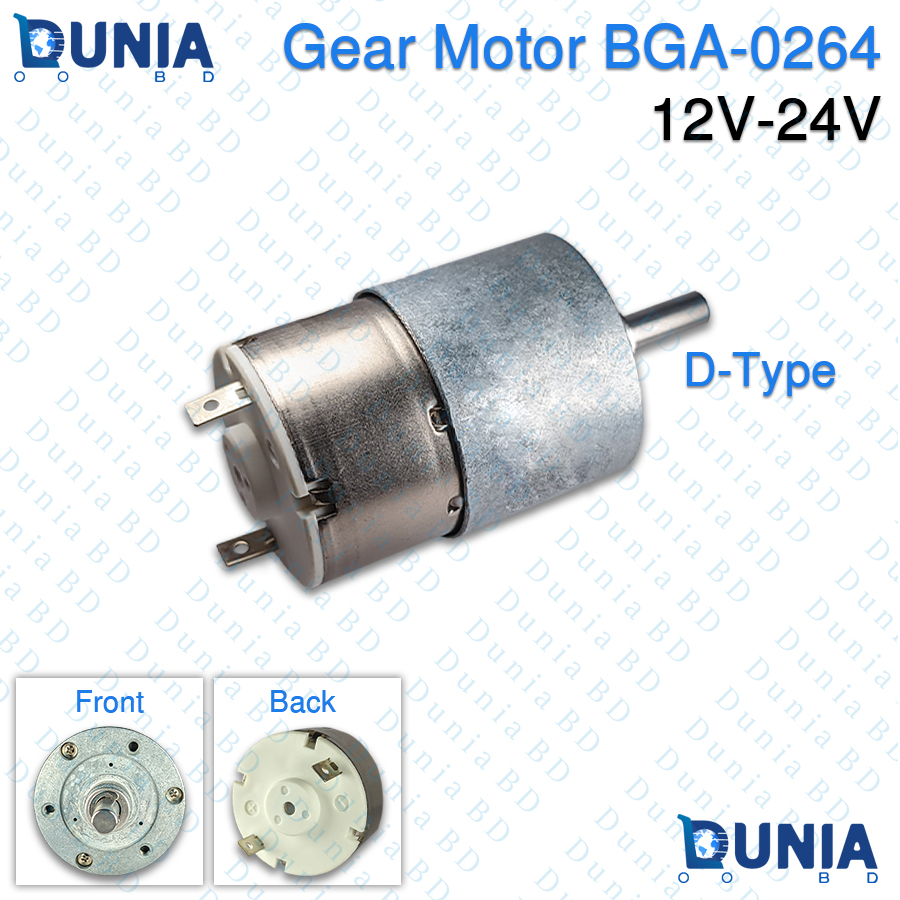

Nidec BGA-0264 12V 24V DC Geared Motor High Torque D-Type Shaft

Specifications

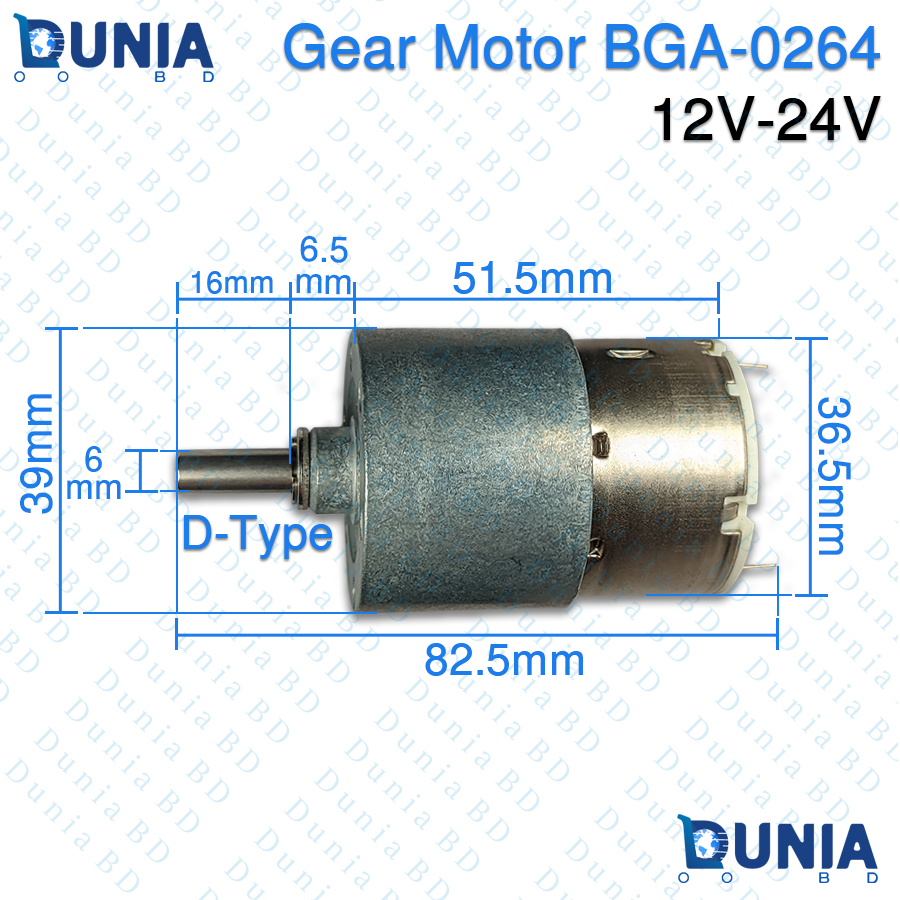

• Nidec BGA-0264 12V 24V DC Geared Motor High Torque D-Type Shaft specification details:
• Model: BGA-0264
• Brand: Nidec
• Operating Voltage Range: DC 12V to 24V
• Motor Diameter: 36.5mm
• Gearbox Diameter: 39mm
• Gearbox & Motor Body Length: 51.5mm
• Shaft Type: D-Type Shaft
• Shaft Diameter: 6mm
• Usable Shaft Length: 16mm
• Shaft Collar Height: 6.5mm
• Total Body Length (excluding shaft): 82.5mm
• Terminal Type: 2-Pin Solder Tab Terminals
• Construction: Heavy-Duty Metal Gearhead Assembly

Features

• High Torque Metal Gearbox: Built with a 39mm robust metal gearhead delivering exceptional rotational torque and durable load-bearing performance.
• Wide Voltage Range Operation: Operates smoothly across DC 12V to 24V power supplies for versatile electronic and industrial applications.
• Standard D-Type Shaft: Equipped with a 6mm D-shaped output shaft providing reliable anti-slip torque transmission to gears and pulleys.
• Precision Nidec Engineering: Manufactured by Nidec to ensure quiet operation, low vibration, and extended service lifespan.
• Compact Form Factor: Combines a 36.5mm motor body with an integrated gearhead for high power density in space-constrained projects.
• The Nidec BGA-0264 12V 24V DC Geared Motor High Torque D-Type Shaft is an industrial-grade gear motor designed for heavy-duty automation, custom machinery, robotics, and high-torque mechanical setups.
• Operating across a flexible DC 12V to 24V range, this motor integrates a precision 36.5mm DC motor with a sturdy 39mm metal gearbox to deliver reliable rotational force and smooth speed reduction.
• Its 6mm D-type shaft with 16mm usable length prevents slippage when paired with couplings, wheels, or gears.
• Compact yet powerful, the total body measures 82.5mm in length, making it ideal for smart equipment, motorized actuators, conveyor systems, and DIY engineering projects.
• Built with premium Nidec quality and dual solder tab terminals, it ensures dependable electrical conductivity and long-term durability under continuous operating loads.

What is the price of Nidec BGA-0264 12V 24V DC Geared Motor High Torque D-Type Shaft in Bangladesh?

The latest price of Nidec BGA-0264 12V 24V DC Geared Motor High Torque D-Type Shaft in Bangladesh is Invalid Product ID. taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Nidec BGA-0264 12V 24V DC Geared Motor High Torque D-Type Shaft in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original Nidec BGA-0264 12V 24V DC Geared Motor High Torque D-Type Shaft From Dunia.com.bd . We have a few collections of latest DC Motor to purchase. Order Electric Motor Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the operating voltage range of this motor?
   It works reliably between DC 12V and DC 24V supply.
2. What is the shaft diameter of the BGA-0264 motor?
   It features a standard 6mm diameter D-type output shaft.
3. Is the gearbox made of plastic or metal gears?
   It utilizes a heavy-duty metal gearbox for high torque strength.
4. What is the diameter of the gearbox section?
   The outer diameter of the gearbox section measures 39mm.
5. What is the total length of the motor body?
   The body length excluding shaft measures 82.5mm long.
6. Can this motor be driven using PWM motor controllers?
   Yes, it works great with standard DC PWM motor drivers.
7. What brand manufactures the BGA-0264 gear motor?
   It is manufactured with precision engineering by Nidec.
8. How do I connect power to this DC motor?
   Power connects via the two rear metal solder tab terminals.
9. Is this motor suitable for heavy robotics projects?
   Yes, its high-torque metal gearhead makes it ideal for robotics.
10. What is the usable length of the D-shaft?
    The output D-shaft provides 16mm of usable attachment length.
