Specifications

• 555 Gear Box Motor 12V 750RPM
• Motor Type: DC Gear Motor
• Rated Voltage: 12V DC
• Rated Speed: 750 RPM
• Motor Series: 555
• Gearbox: Metal Gearbox
• Gearbox Output Shaft Diameter: 14mm
• Output Shaft Length: 16mm
• Gearbox Body Diameter: 42mm

• Motor Body Diameter: 35.8mm

• Gearbox Overall Length: 24mm

• Motor Length: 57mm

• Mounting Plate Size: 43mm × 43mm

• Mounting Hole: 4 × M4 × 0.7

• Mounting Hole Spacing: 36mm × 36mm

• Motor Application: Robotics, Automation, DIY Projects and Mechanical Systems

• Power Supply: 12V DC

• Rotation: DC Motor Rotation

• Construction: Metal Gearbox and DC Motor Housing

Features

• 12V DC operating voltage with a rated speed of 750 RPM.
• 555 series DC motor combined with a compact metal gearbox.
• Suitable for robotics, automation, DIY machines and mechanical projects.
• 14mm output shaft provides a practical mounting option for compatible mechanisms.
• Compact 43mm × 43mm mounting plate supports secure installation.
• Four M4 × 0.7 mounting holes provide convenient mechanical mounting.
• Designed for applications requiring controlled rotational motion and geared output.
• Useful for custom robots, automation mechanisms, small machinery and educational projects.

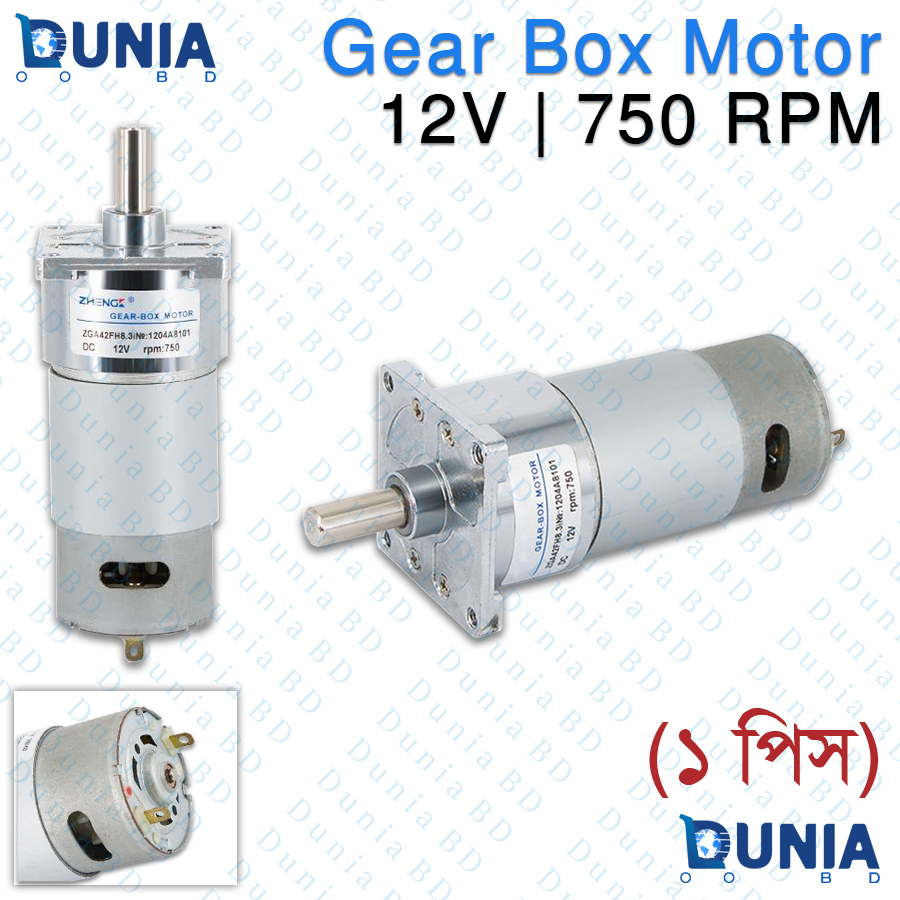

• The 555 Gear Box Motor 12V 750RPM is a compact DC geared motor designed for robotics, automation, DIY machinery and various mechanical motion applications. It combines a 555-series DC motor with a metal gearbox to provide a practical geared-drive solution for projects requiring controlled rotational movement.
• Operating at 12V DC and offering a rated speed of 750 RPM, this gear motor can be integrated into a wide range of custom mechanical systems. Its compact construction makes it suitable for robotics projects, automated mechanisms, small machines, educational models and other applications where space-efficient motor drive is required.

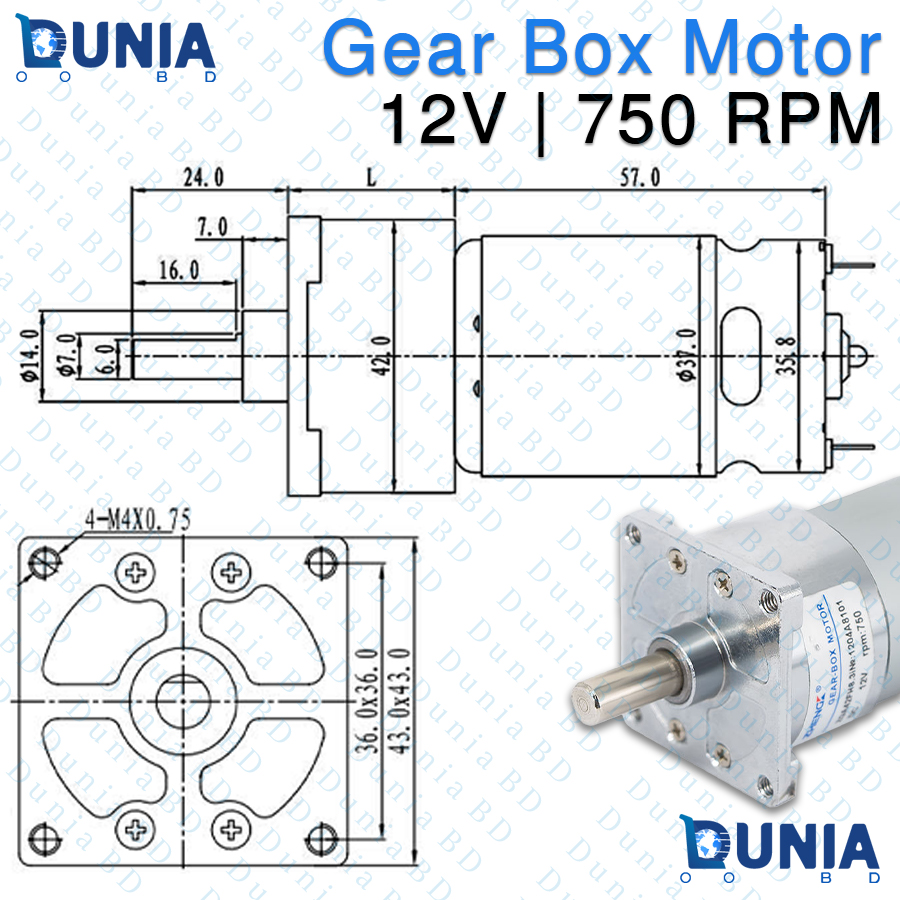

• The motor features a 42mm gearbox section and a 35.8mm diameter motor body. The output shaft has an approximately 14mm diameter with a 16mm shaft length, while the mounting plate measures approximately 43mm × 43mm. The mounting plate includes four M4 × 0.7 mounting holes with approximately 36mm × 36mm hole spacing.
• With its combination of 12V operation, 750RPM speed, geared construction and compact mounting design, this 555 Gear Box Motor is a practical choice for makers, engineers, students and robotics enthusiasts working on customized motion-control projects.

What is the price of 555 Gear Box Motor 12V 750RPM DC Geared Motor for Robotics and Automation Projects in Bangladesh?

The latest price of 555 Gear Box Motor 12V 750RPM DC Geared Motor for Robotics and Automation Projects in Bangladesh is Price: ৳1,435.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 555 Gear Box Motor 12V 750RPM DC Geared Motor for Robotics and Automation Projects in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original 555 Gear Box Motor 12V 750RPM DC Geared Motor for Robotics and Automation Projects From Dunia.com.bd . We have a few collections of latest DC Motor to purchase. Order Electric Motor Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What voltage does the 555 Gear Box Motor require for normal operation in robotics and automation projects?
   This gear motor is designed to operate using a 12V DC power supply.
2. What is the rated speed of this 555 Gear Box Motor when operated at 12V?
   The motor has a rated speed of approximately 750 RPM when operated at 12V DC.
3. What type of motor is used inside this geared motor assembly?
   It uses a 555-series DC motor combined with a compact metal gearbox.
4. What is the approximate diameter of the gearbox output shaft?
   The gearbox output shaft has an approximate diameter of 14mm according to the provided dimensions.
5. What are the mounting plate dimensions of this 12V geared motor?
   The mounting plate measures approximately 43mm by 43mm for mechanical installation.
6. How many mounting holes are included on the motor mounting plate?
   The mounting plate includes four M4 × 0.7 mounting holes for secure installation.
7. What projects are suitable for using this 12V 750RPM geared motor?
   It is suitable for robotics, automation, DIY machines, educational projects and customized mechanical systems.
8. What is the approximate overall length of the motor and gearbox assembly?
   The provided drawing shows approximately 24mm gearbox length and 57mm motor length.
9. What is the approximate diameter of the main motor body?
   The main motor body has an approximate diameter of 35.8mm based on the provided technical drawing.
10. Does this geared motor include a metal gearbox for mechanical motion applications?
    Yes, the motor assembly features a compact metal gearbox designed for geared mechanical motion applications.
