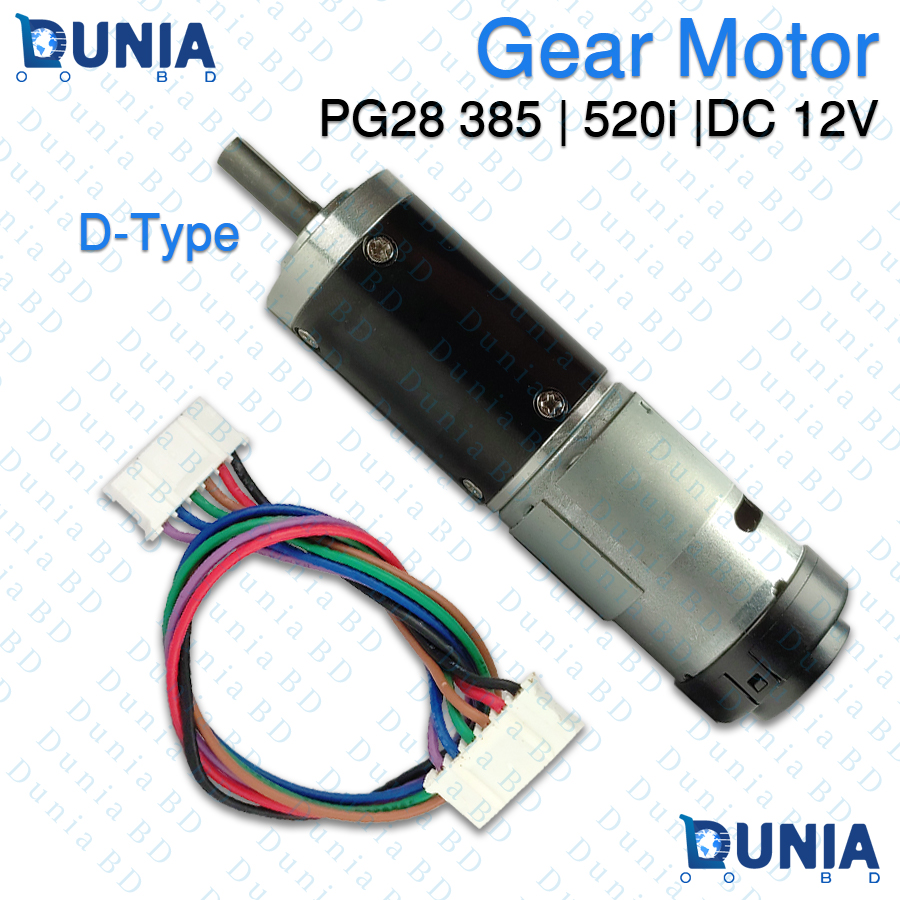

PG28 385 520i DC 12V Planetary Gear Motor with Encoder D-Type Shaft

Specifications

• PG28 385 520i DC 12V Planetary Gear Motor with Encoder D-Type Shaft specification details:
• Model: PG28-385 / 520i
• Operating Voltage: DC 12V
• Motor Type: Brushed DC Planetary Gear Motor with Optical/Magnetic Encoder

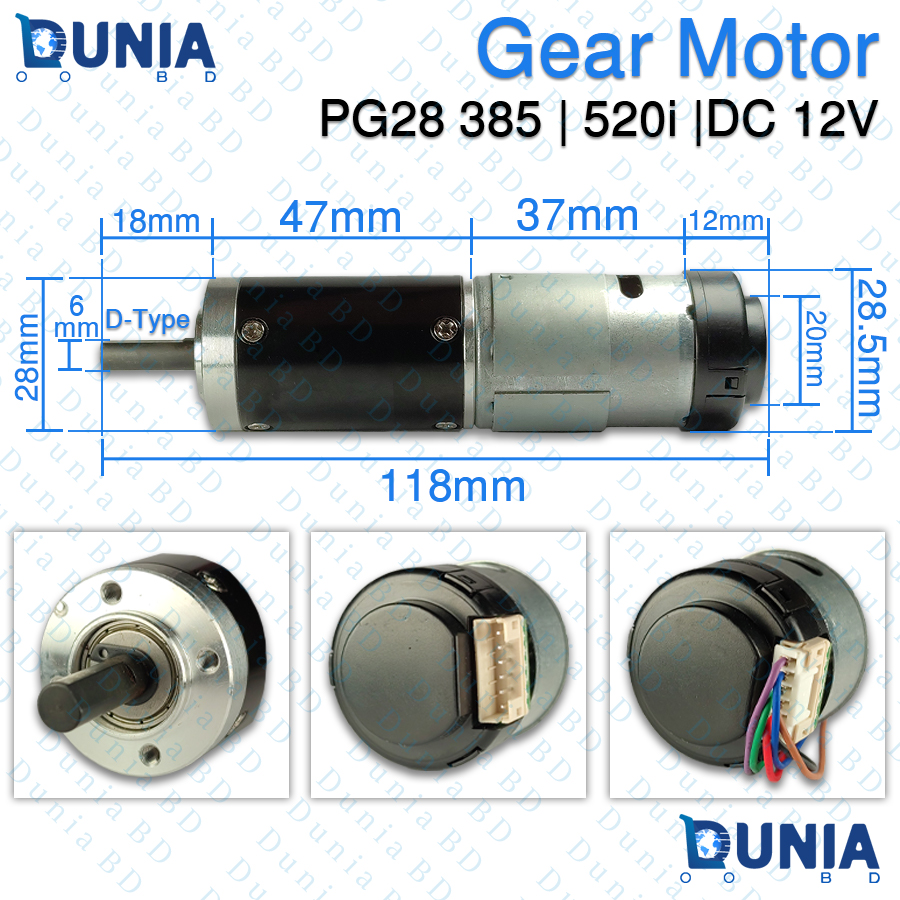

• Gearbox Outer Diameter: 28mm
• Gearbox Length: 47mm
• Motor Body Length: 37mm
• Rear Cover/Encoder Length: 12mm
• Total Body Length (excluding shaft): 96mm (Overall total length: 118mm)
• Shaft Type: D-Type Shaft
• Shaft Diameter: 6mm
• Shaft Length: 18mm
• Motor Diameter: 28.5mm
• Rear Encoder Housing Diameter: 20mm
• Connector Type: 6-Pin JST Wire Cable Harness Included

Features

1. High Torque Planetary Gearbox: Designed with a robust 28mm planetary gear system delivering smooth, reliable speed reduction and high output torque.
2. Integrated Speed Encoder: Equipped with a precision rear feedback encoder for accurate speed monitoring, position tracking, and closed-loop control.
3. Standard D-Type Shaft: Features a durable 6mm D-shaped output shaft ensuring non-slip coupling and firm mechanical attachment.
4. Compact Industrial Build: Solid metal construction with total dimensions measuring 118mm in length and 28mm in outer diameter.
5. Plug and Play Wiring: Includes a pre-wired 6-pin terminal cable harness for hassle-free connection to microcontrollers and motor drivers.
6. The PG28 385 520i DC 12V Planetary Gear Motor with Encoder D-Type Shaft is a professional-grade precision geared motor engineered for advanced robotics, automation, and closed-loop control systems.
7. Operating at DC 12V, this high-performance motor combines a durable 28mm planetary gearbox with a high-resolution rear encoder to deliver strong rotational torque and highly accurate positional feedback.
8. The standard 6mm D-type shaft with an 18mm length allows seamless coupling with gears, wheels, and pulleys without slip.
9. Built with an overall body length of 118mm and high-quality metallic gearing, this motor ensures long operational lifespan, smooth transmission, and minimal mechanical backlash.
10. Complete with a 6-pin cable harness, it easily interfaces with Arduino, Raspberry Pi, STM32, and industrial motor drivers, making it an excellent choice for CNC automation, AGV robots, smart conveyors, and precision motorized actuators.

What is the price of PG28 385 520i DC 12V Planetary Gear Motor with Encoder D-Type Shaft in Bangladesh?

The latest price of PG28 385 520i DC 12V Planetary Gear Motor with Encoder D-Type Shaft in Bangladesh is Price: ৳1,055.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy PG28 385 520i DC 12V Planetary Gear Motor with Encoder D-Type Shaft in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original PG28 385 520i DC 12V Planetary Gear Motor with Encoder D-Type Shaft From Dunia.com.bd . We have a few collections of latest DC Motor to purchase. Order Electric Motor Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the operating voltage of this gear motor?
   It operates efficiently on standard DC 12V power supply.
2. Does this motor include a built-in speed encoder?
   Yes, it features an integrated encoder for precise feedback.
3. What are the shaft dimensions of the PG28 motor?
   It has a 6mm diameter D-type shaft measuring 18mm long.
4. What type of gearbox is used in this motor?
   It features a high-torque 28mm planetary gear reduction system.
5. What is the overall total length of the motor?
   The total length including shaft measures 118mm end to end.
6. Does it come with connection wiring cable included?
   Yes, a 6-pin connector harness cable is included in package.
7. Is this motor suitable for robotics closed-loop projects?
   Yes, the encoder enables accurate position and RPM measurement.
8. What is the gearbox diameter of this PG28 model?
   The outer diameter of the planetary gearbox section is 28mm.
9. Can I connect this motor directly to an Arduino?
   You need a compatible motor driver board and encoder pins.
10. Is this product durable for heavy automation applications?
    Yes, all-metal planetary construction guarantees long operational durability.
