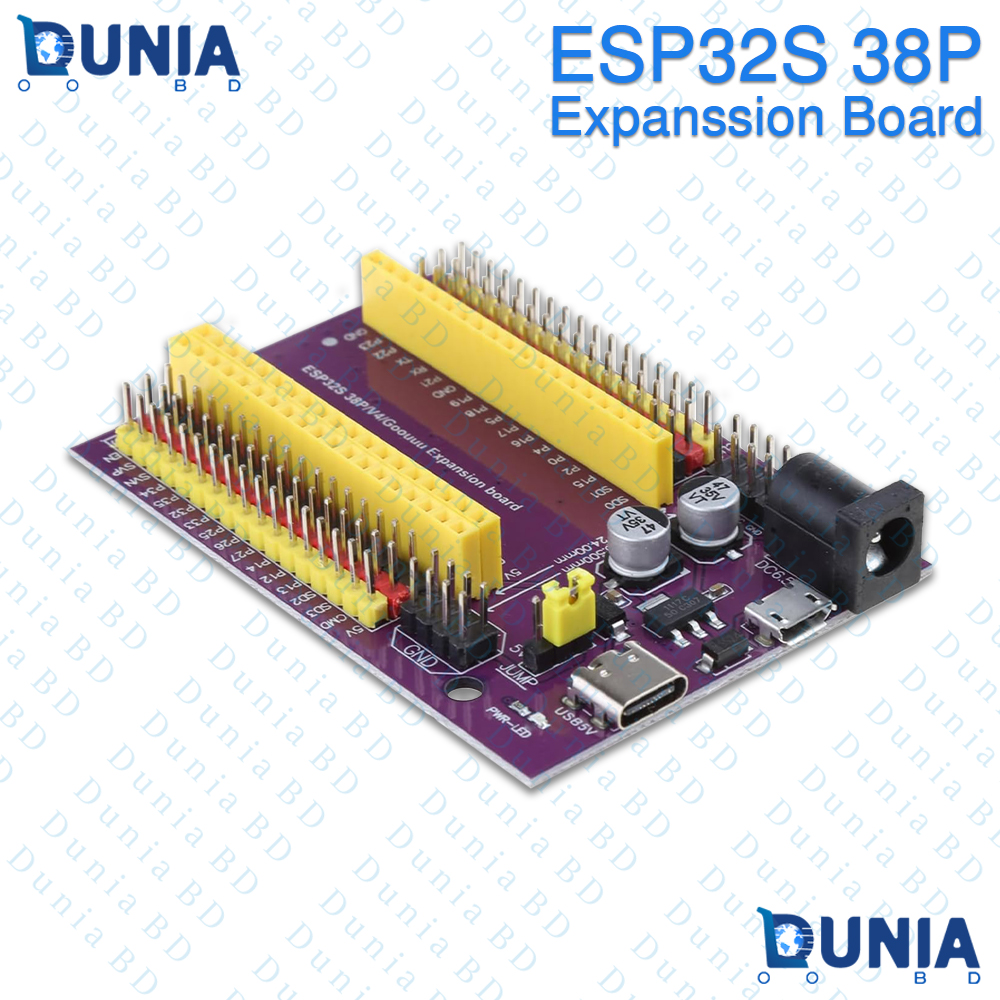

ESP32S 38P Expansion Board Dual Type-C Micro USB DC Jack Breakout
Compatibility: 38-Pin ESP32 / ESP32S Development Boards
Power Input Options: DC 6.5V-16V Jack, USB Type-C Port, Micro USB Port
Voltage Selector Jumpers: 3.3V / 5V Switchable Output for RED Pin Headers
Pin Configuration: Dual Row Header Pins with Power (VCC/GND) and Signal Breakout

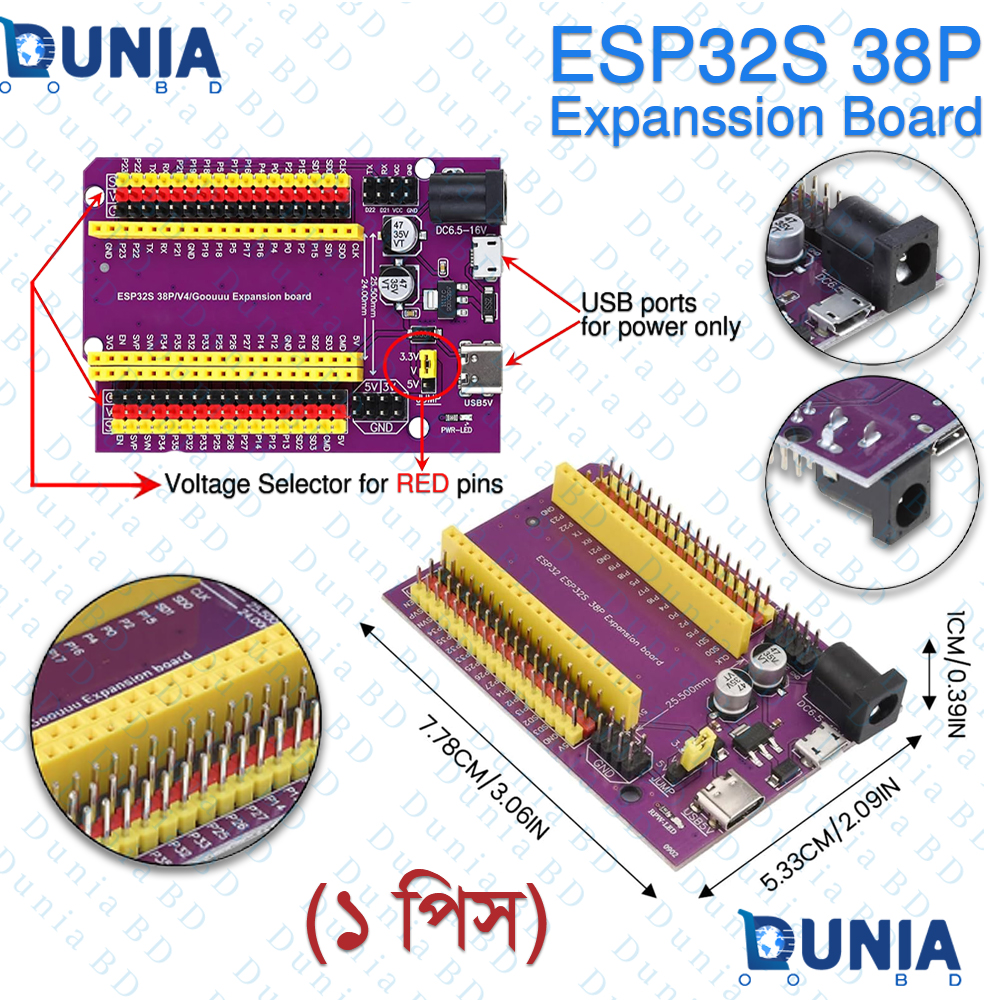

Dimensions: 7.78cm x 5.33cm x 1.0cm (3.06in x 2.09in x 0.39in)
Power Indicator: On-board PWR-LED Indicator
PCB Color: Purple with Yellow Pin Header Sockets

Features

38-Pin ESP32S Compatibility: Designed specifically to fit standard 38-pin ESP32 / ESP32S development board modules (such as NodeMCU-32S / Goouuu boards), breaking out all pins for easy breakout connections.
Versatile Power Input Options: Equipped with a standard DC 6.5V–16V power jack along with onboard Micro-USB and USB Type-C power input ports for flexible benchtop or field powering.
Configurable Voltage Output Headers: Features dedicated 3-pin headers with a yellow jumper cap allowing users to select between 3.3V and 5V power supply rails for the red expansion pin rows.
GND / VCC / Signal Pin Clusters: Each GPIO pin is expanded alongside corresponding VCC and GND pins (SVG layout format) for direct, plug-and-play connection of sensors, servo motors, and relays without breadboard jumper clutter.
Dual Parallel Header Design: Features female socket headers to hold the main ESP32 module, alongside duplicate male pin headers on both sides for effortless probe attachment and testing.
Onboard Power Indicator & Regulators: Built with a red power status LED (PWR-LED) and an onboard linear voltage regulator to deliver clean, stable power to connected peripherals.
Compact Layout: Measures 7.78cm (3.06in) in length by 5.33cm (2.09in) in width with a slim 1cm (0.39in) profile for easy integration into project boxes and custom enclosures.

What is the price of ESP32S 38P Expansion Board Dual Type-C Micro USB DC Jack Breakout in Bangladesh?

The latest price of ESP32S 38P Expansion Board Dual Type-C Micro USB DC Jack Breakout in Bangladesh is Price: ৳230.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy ESP32S 38P Expansion Board Dual Type-C Micro USB DC Jack Breakout in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original ESP32S 38P Expansion Board Dual Type-C Micro USB DC Jack Breakout From Dunia.com.bd . We have a few collections of latest Arduino Accessories to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

Which ESP32 board is this expansion board compatible with?
It is designed specifically for 38-pin ESP32 and ESP32S development modules.
What power supply options does this breakout board support?
You can power it via DC jack (6.5V-16V), Type-C, or Micro USB.
Can I select different output voltages for connected sensors?
Yes, onboard jumpers let you switch output voltage between 3.3V and 5V.
What are the exact dimensions of this ESP32 shield?
The board dimensions are 7.78cm length by 5.33cm width.
Are the USB ports used for data programming or power only?
The Type-C and Micro USB ports on this board are for power supply.
Does this board include built-in LED indicators for power status?
Yes, it includes an onboard PWR-LED power indicator light.
Does it eliminate the need for breadboard jumper wire clutter?
Yes, it converts pins into convenient GVS headers for clean wiring.
What is the maximum voltage supported via the DC jack?
The DC power jack supports an input range from 6.5V to 16V.
Is soldering required before using this ESP32 expansion board?
No soldering required; all header sockets come fully pre-assembled.
