Specifications

• Vibration Sensor
• Model: SW-420
• Sensor Type: Vibration Switch (Normally Closed)
• Operating Voltage: 3.3V – 5V DC
• Output: Digital (0V when triggered, 3.3V/5V when idle)
• Sensitivity: Adjustable (potentiometer)
• Response Time: <2ms

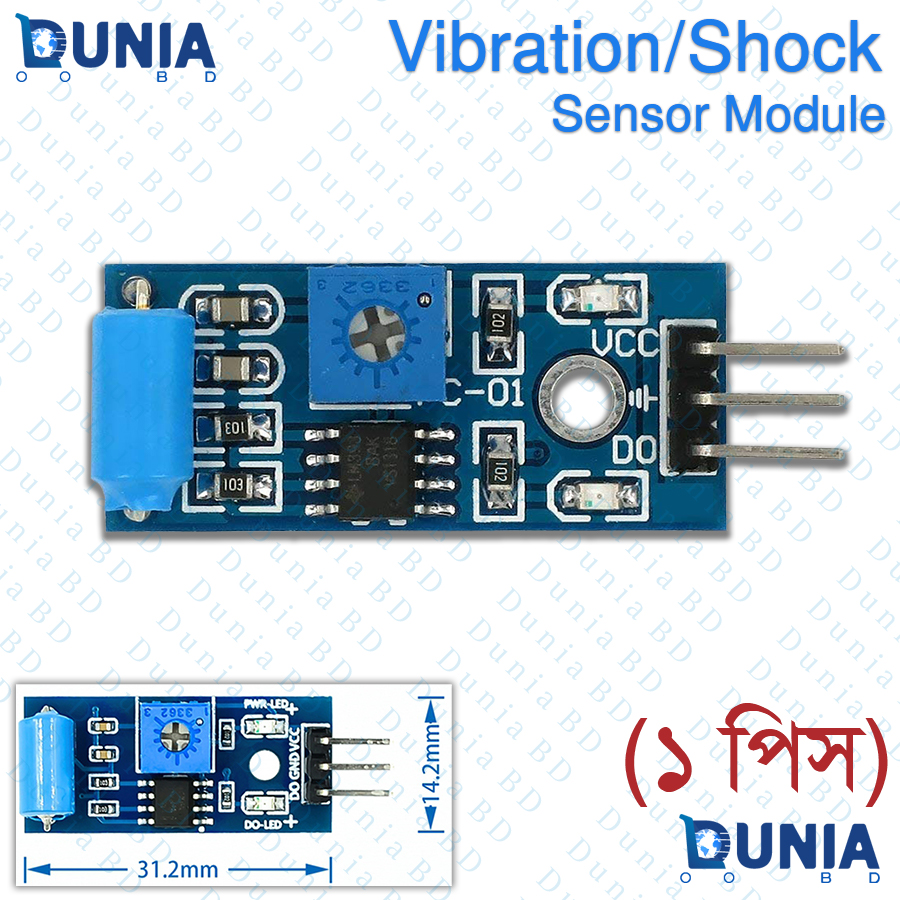

• Board Dimensions: 31.2mm x 14.2mm
• Mounting Hole: Yes
• LED Indicators: Power LED (green), Output LED (red)
• Trigger Condition: Vibration, shock, or tilt
• Interface: 3-pin (VCC, GND, DO)

Features

• Detects vibration, shock, and tilt
• Model: SW-420 (normally closed switch)
• Adjustable sensitivity via potentiometer
• Digital output (High/Low)
• Operating voltage: 3.3V to 5V
• LED indicators: Power & Output
• Compact size with mounting hole
• Fast response time
• Low power consumption
• Ideal for security alarms and robotics
• The SW-420 Vibration/Shock Sensor Module uses a spring-based switch that closes when subjected to vibration, shock, or tilt. It acts as a normally closed switch—output goes LOW (0V) when triggered.
• Sensitivity is adjustable via the onboard potentiometer. Two LEDs indicate power status and trigger events.
• Perfect for burglar alarms, earthquake detectors, vehicle security, and robotic fall detection. Simple digital interface makes it easy to use with Arduino and other MCUs.

What is the price of Vibration Sensor Module – Adjustable Sensitivity SW-420 Shock Sensor in Bangladesh?

The latest price of Vibration Sensor Module in Bangladesh is Price: ৳80.00 taka for 1 Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Vibration Sensor Module – Adjustable Sensitivity SW-420 Shock Sensor in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original Vibration Sensor Module From Dunia.com.bd . We have few collection of latest Arduino Accessories to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What triggers the SW-420 sensor?
   Vibration, shock, or tilt.
2. What is the output when triggered?
   0V (LOW).
3. Can I adjust sensitivity?
   Yes, using the potentiometer.
4. Does it have analog output?
   No, only digital (HIGH/LOW).
5. What voltage does it support?
   3.3V to 5V DC.
6. Is it suitable for earthquake detection?
   Yes, for basic tremor detection.
7. How to connect to Arduino?
   VCC → 5V, GND → GND, DO → Digital Pin.
8. What is the response time?
   Less than 2ms.
9. Can it detect light taps?
   Yes, adjust sensitivity accordingly.
10. Is it waterproof?
    No, protect from moisture.
