Specifications

• Rain Sensor
• Module Type: Raindrop / Water Detection Sensor
• Sensing Pad Size: 54mm x 40mm
• Control Board Size: 31mm x 14.2mm
• Operating Voltage: 3.3V – 5V DC
• Output: Analog (0-1023) + Digital (High/Low)
• Sensitivity: Adjustable (potentiometer)
• Interface: 4-pin (VCC, GND, A0, D0)
• LED Indicators: Power LED, Output LED
• Sensing Surface: Nickel-plated, corrosion-resistant
• Included: 1 x Sensing Pad, 1 x Control Board, 2 x Jumper Wires
• Connection Cable Length: ~20cm (orange)

Features

• Detects raindrops and water presence
• Large sensing pad: 54mm x 40mm
• Analog (A0) and Digital (D0) output
• Adjustable sensitivity via potentiometer
• Includes control board and sensing pad
• Comes with 2 jumper wires
• LED indicators for power and output
• Operating voltage: 3.3V to 5V
• Corrosion-resistant nickel-plated surface
• Ideal for automated irrigation and car wipers

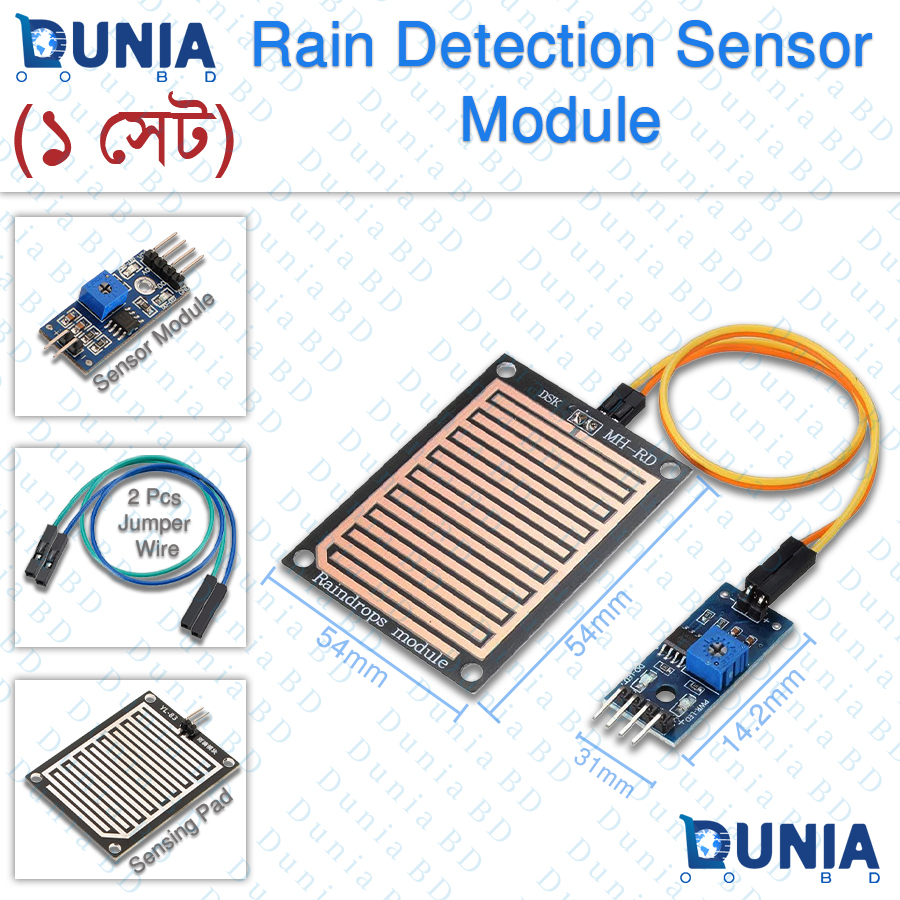

• The Rain Detection Sensor Module is a versatile sensor that detects the presence of water or raindrops on its sensing pad. It consists of a large 54x40mm nickel-plated pad and a control board with analog and digital output.
• When water bridges the printed lines on the pad, resistance changes, producing an analog signal (A0) proportional to water amount. The digital output (D0) goes HIGH when water exceeds the set threshold (adjustable via potentiometer).
• Perfect for weather monitoring, automated plant watering systems, car windshield wipers, and leakage detection. Compatible with Arduino and other microcontrollers.

What is the price of Rain Sensor Water Detection Sensor Module with 2 Jumper Wires – Water Drop Alert in Bangladesh?

The latest price of Rain Sensor Module in Bangladesh is Price: ৳125.00 taka for 1 Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Rain Sensor Water Detection Sensor Module with 2 Jumper Wires – Water Drop Alert in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original Rain Sensor Module From Dunia.com.bd . We have few collection of latest Arduino Accessories to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. How does the rain sensor work?
   Water bridges conductive lines, changing resistance.
2. What outputs does it have?
   Analog (A0) and Digital (D0).
3. Can I adjust sensitivity?
   Yes, using the onboard potentiometer.
4. Is the sensing pad waterproof?
   Nickel-plated for corrosion resistance, but avoid full submersion.
5. What voltage does it need?
   3.3V to 5V DC.
6. Does it come with cables?
   Yes, 2 jumper wires included.
7. Can it detect small drops?
   Yes, sensitivity can be adjusted.

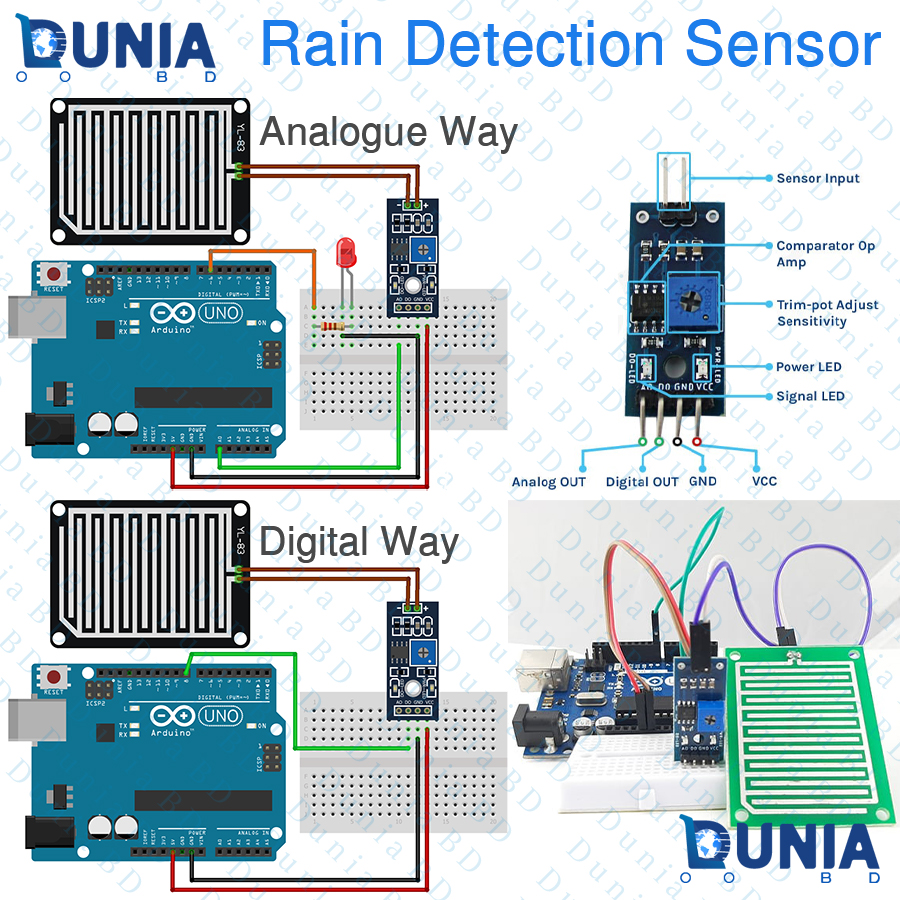

8. How to connect to Arduino?
   VCC → 5V, GND → GND, A0 → Analog Pin, D0 → Digital Pin.
9. What is the analog output range?
   0 (dry) to 1023 (fully wet).
10. Can I use it outdoors?
    Yes, but protect electronics from direct rain.
