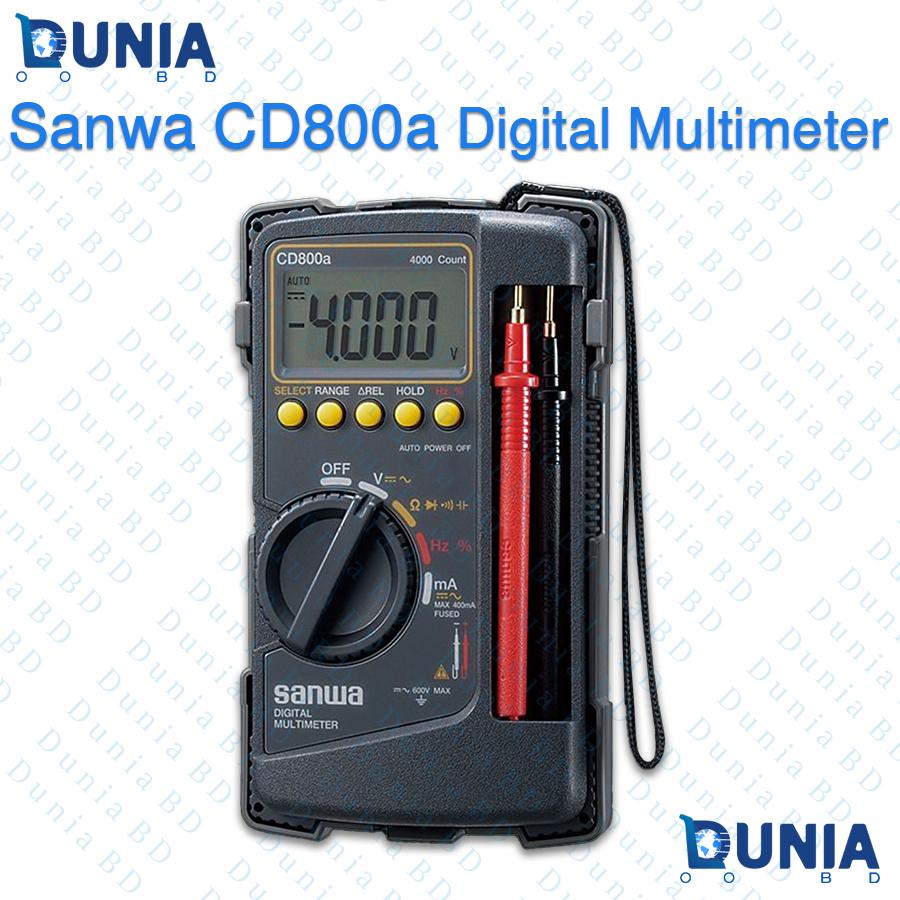

Sanwa CD800a Digital Multimeter Original Handheld Tester

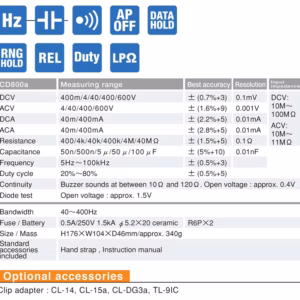

Specifications

• Sanwa CD800a Digital Multimeter
• Display: 4000 Count LCD display
• DC Voltage Range: 400mV / 4V / 40V / 400V / 600V (Best Accuracy: ±0.7%+3, Resolution: 0.1mV)
• AC Voltage Range: 4V / 40V / 400V / 600V (Best Accuracy: ±1.6%+9, Resolution: 0.001V)
• DC Current Range: 40mA / 400mA (Best Accuracy: ±2.2%+5, Resolution: 0.01mA)
• AC Current Range: 40mA / 400mA (Best Accuracy: ±2.8%+5, Resolution: 0.01mA)
• Resistance Range: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ (Best Accuracy: ±1.5%+5, Resolution: 0.1Ω)
• Capacitance Range: 50nF / 500nF / 5μF / 50μF / 100μF (Best Accuracy: ±5%+10, Resolution: 0.01nF)
• Frequency Range: 5Hz to 100kHz (Best Accuracy: ±0.5%+3)
• Duty Cycle: 20% to 80% (Best Accuracy: ±0.5%+5)
• Continuity Test: Buzzer sounds between 10Ω and 120Ω (Open voltage: approx. 0.4V)
• Diode Test: Open voltage approx. 1.5V
• Bandwidth: 40Hz to 400Hz
• Input Impedance: DCV 10MΩ – 100MΩ / ACV 10MΩ – 11MΩ
• Fuse Protection: 0.5A/250V 1.5kA Ceramic Fuse (Φ5.2×20mm)
• Battery Power: R6P x 2 (AA Batteries)
• Dimensions and Weight: H176mm x W104mm x D46mm / approx. 340g
• Included Accessories: Integrated Test Leads with Cap Cover, Hand Strap, Instruction Manual

Features

• 4000 Count clear LCD display with auto power-off function to save battery life.
• Integrated tough body cover that functions as a protective case and a tilt stand.
• Gold-plated test pin ends ensuring superior conductivity and corrosion resistance.
• Relative measurement (REL) and Data Hold / Range Hold functionality for accurate testing.
• Low power ohm (LPΩ) measurement for safe in-circuit resistance checking.
• The Sanwa CD800a Digital Multimeter is a high-precision, versatile portable measuring instrument designed for electronics technicians, engineers, and hobbyists.
• Engineered with Japanese quality standards, this compact digital multimeter offers comprehensive electrical testing capabilities including DC/AC voltage, DC/AC current, resistance, capacitance, frequency, and duty cycle.
• Its built-in protective body cover acts as a convenient tilt stand and storage unit for the integrated test leads, preventing accidental lead damage or loss.
• Featuring gold-plated probe tips, the CD800a provides exceptional connection conductivity for accurate readings across all electrical circuits.

What is the price of Sanwa CD800a Digital Multimeter Original Handheld Tester in Bangladesh?

The latest price of Sanwa CD800a Digital Multimeter Original Handheld Tester in Bangladesh is Product ID is required. to Price: ৳5,195.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Sanwa CD800a Digital Multimeter Original Handheld Tester in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original Sanwa CD800a Digital Multimeter Original Handheld Tester From Dunia.com.bd . We have a few collections of latest Capacitor, Multimeter to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the display count of the Sanwa CD800a multimeter?
   The Sanwa CD800a features a clear 4000-count digital LCD screen display.
2. Does the Sanwa CD800a test AC and DC current?
   Yes, it measures both AC and DC current up to 400mA safely.
3. Can Sanwa CD800a measure capacitance and frequency?
   Yes, it measures capacitance up to 100μF and frequency up to 100kHz.
4. Are the test leads removable on Sanwa CD800a?
   No, the test leads are permanently attached for enhanced safety and convenience.
5. What power source does Sanwa CD800a use?
   It operates on two standard R6P AA batteries with auto power-off function.
6. Is Sanwa CD800a suitable for electronics troubleshooting?
   Absolutely, it is ideal for precise circuit design, repair, and field testing.
7. Does Sanwa CD800a come with gold-plated test probes?
   Yes, probe tips are gold-plated for optimal signal transfer and durability.
8. What is the safety fuse rating for Sanwa CD800a?
   It uses a high-quality 0.5A/250V 1.5kA ceramic safety fuse inside.
9. How heavy is the Sanwa CD800a multimeter?
   It weighs approximately 340 grams, making it lightweight and portable.
10. Does Sanwa CD800a have a continuity buzzer?
    Yes, it sounds a buzzer for resistance between 10Ω and 120Ω.
