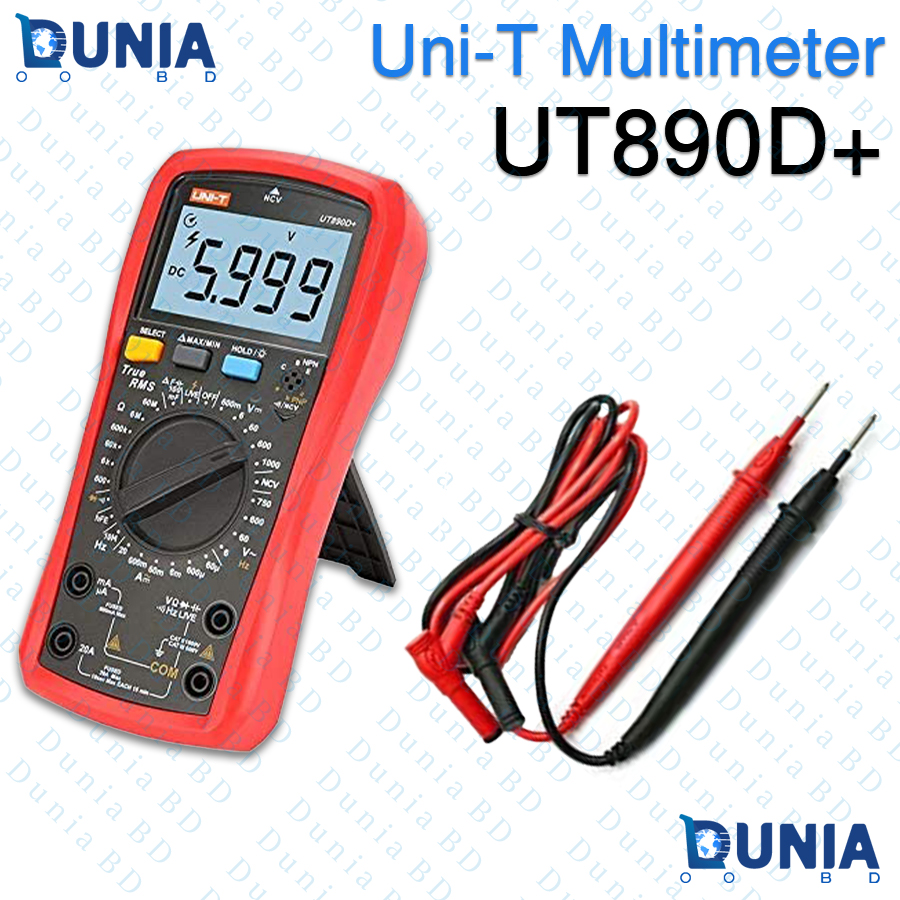

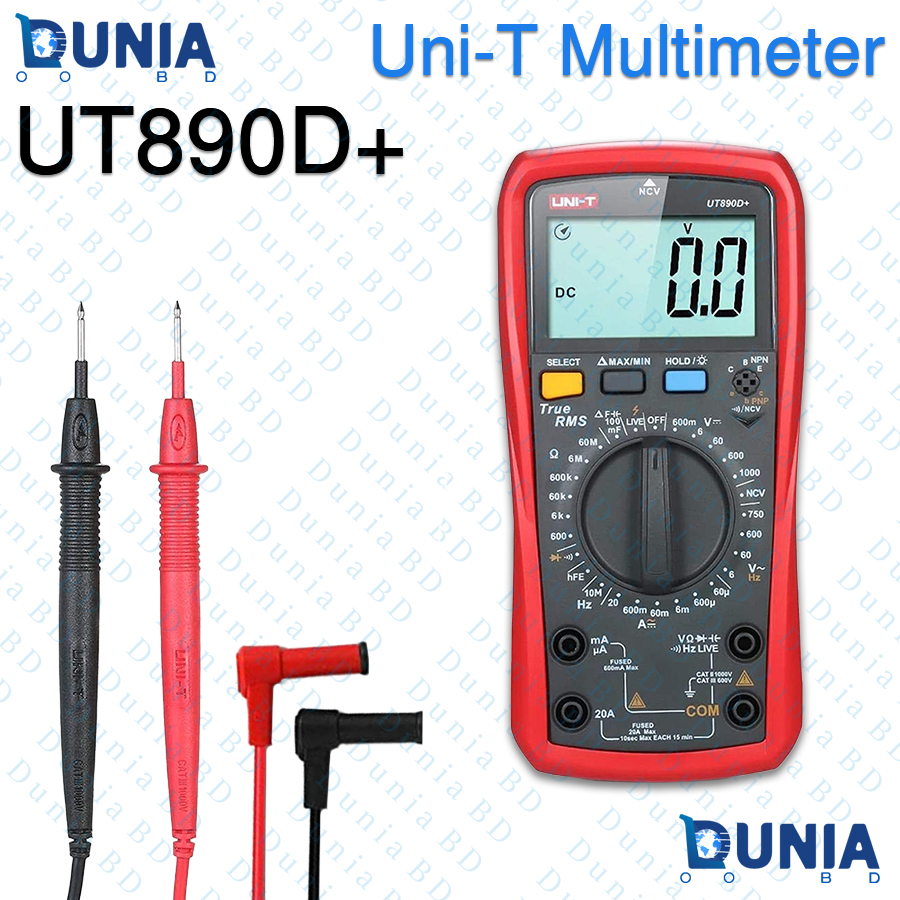

Uni-T UT890D+ True RMS Digital Multimeter LCD Display NCV Live Test

Specifications

• Uni-T UT890D+ True RMS Digital Multimeter LCD Display NCV Live Test specification details:
• Brand: UNI-T
• Model: UT890D+
• Display Count: 6000 Counts
• Measurement Type: True RMS
• DC Voltage Range: 600mV / 6V / 60V / 600V / 1000V
• AC Voltage Range: 6V / 60V / 600V / 750V
• DC Current Range: 60uA / 600uA / 6mA / 60mA / 600mA / 20A
• AC Current Range: 60uA / 600uA / 6mA / 60mA / 600mA / 20A
• Resistance Range: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
• Capacitance Range: 6nF / 60nF / 600nF / 6uF / 60uF / 600uF / 6mF / 60mF / 100mF
• Frequency Range: 10Hz to 10MHz
• Special Features: NCV (Non-Contact Voltage), Live Wire Detection, hFE Transistor Test, Diode & Continuity Test
• Functions: Data Hold, Max/Min Mode, Relative Mode (Δ), LCD Backlight, Auto Power Off
• Safety Rating: CAT II 1000V / CAT III 600V
• Power Supply: 2 x 1.5V AAA Batteries

Features

• Precision True RMS Measurement: Delivers highly accurate AC voltage and current readings even on irregular or non-sinusoidal waveforms.
• 6000-Count Backlit Display: Large clear LCD screen with built-in backlight ensures effortless readability in dimly lit working conditions.
• Non-Contact Voltage & Live Wire Identification: Integrated NCV sensor and Live wire detection allow quick, safe electrical troubleshooting without direct contact.
• Massive 100mF Capacitance Measurement: Exceptional measurement range capable of testing large industrial filter capacitors up to 100,000uF.
• Transistor & Fuse Protection: Built-in hFE socket for NPN/PNP transistor testing along with dual fused input protection up to 20A max current.
• The Uni-T UT890D+ True RMS Digital Multimeter LCD Display NCV Live Test is a professional, high-precision electronic measuring instrument tailored for engineers, electricians, technicians, and hardware hobbyists.
• Engineered with a 6000-count digital display and True RMS measurement capabilities, it delivers accurate readings across complex AC/DC circuits, power supplies, and industrial machinery.
• This versatile device supports comprehensive testing parameters including AC/DC voltage up to 1000V/750V, AC/DC current up to 20A, resistance up to 60MΩ, and high-capacity capacitance up to 100mF.
• Advanced built-in functions such as Non-Contact Voltage (NCV) detection, Live wire distinguishing, hFE transistor testing, Max/Min tracking, and relative mode make diagnostic tasks fast and safe.
• Protected by a rugged, impact-resistant red rubber holster and rated to CAT III 600V safety standards, the UT890D+ is an essential diagnostic tool for every electronics lab, workshop, and field service toolkit.

What is the price of Uni-T UT890D+ True RMS Digital Multimeter LCD Display NCV Live Test in Bangladesh?

The latest price of Uni-T UT890D+ True RMS Digital Multimeter LCD Display NCV Live Test in Bangladesh is Price: ৳2,420.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Uni-T UT890D+ True RMS Digital Multimeter LCD Display NCV Live Test in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original Uni-T UT890D+ True RMS Digital Multimeter LCD Display NCV Live Test From Dunia.com.bd . We have a few collections of latest Multimeter to purchase. Order Meter for Electricity Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. Does the UNI-T UT890D+ multimeter feature True RMS capability?
   Yes, it measures accurate True RMS AC current and voltage.
2. What is the maximum capacitance range supported by UT890D+?
   It accurately measures large capacitors up to 100mF (100,000uF).
3. Can this multimeter detect live AC power wires without touch?
   Yes, it includes both NCV non-contact sensing and Live test modes.
4. What is the maximum current limit for current measurements?
   It measures up to 20A AC and DC current continuous loads.
5. Does this model support transistor hFE testing?
   Yes, it features dedicated socket contacts for NPN and PNP transistors.
6. What battery type powers the UNI-T UT890D+ multimeter?
   It operates on two standard 1.5V AAA replaceable batteries.
7. Does the display screen include a backlight for night use?
   Yes, it has a bright LCD backlight with data hold function.
8. What is the display digit count on the UT890D+ model?
   It features a high resolution 6000-count digital LCD screen.
9. Is this multimeter protected against accidental overload?
   Yes, it incorporates ceramic fuses rated up to CAT III 600V.
10. Does the package include test lead probes in the box?
    Yes, it includes a set of high quality CAT III test probes.
