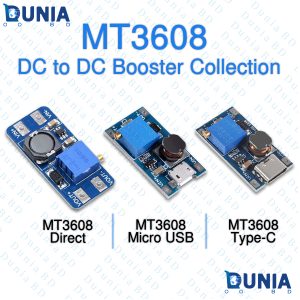

MT3608 DC to DC Step Up Boost Adjustable Voltage Power Supply Converter Module Collection

• Input voltage: 2V-24V DC
• Output voltage: 5V-28V DC
• Output current: 2A (max), 1A (recommended), <100mA (input <4.0V), <50mA (input <3.5V)
• Module type: Non-isolated step-up (boost)
• Rectification: Non-synchronous rectification
• Conversion efficiency: 96% (highest)
• Switching frequency: 1.2MHz
• Maximum output ripple: 100mV (factory specification)
• Load regulation: ±0.5%
• Voltage regulation: ±0.5%
• Short circuit protection: No
• Working temperature: -45°C to +85°C
• Dimensions PCB: 37 x 17mm
• Package contents:  1x Step Up Boost Converter MT3608
• DBDPC: Direct-895321, Micro USB-758118, Type-C-578669

Note:

1. When using an input voltage of 5V DC or higher, first set the output voltage with 5V DC or lower on the input (with a voltage of more than 5V DC and the wrong position of the potentiometer, the chip can burn out).
2. The potentiometer can rotate approximately 25 times (approximately 50 hand turns) from start to finish. So it may take a while before the desired voltage is reache

MT3608 Direct

MT3608 Micro USB

MT3608 Type-C
