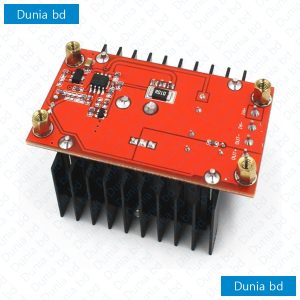

DC-DC150W Boost Converter 10-32V to 12-35V Step Up Module Adjustable Power Voltage
৳ 370.00
- Convenient for DIY — You can use this module to DIY an output-adjustable car power supply
- Input voltage: DC 10V-32V, Output voltage: DC12V-35V(adjustable)
- Input current: 16A (MAX), Output current: 10A (MAX)
- Conversion efficiency: 94% (For reference: when Input 19V 2.5A Output 16V)
- Easily charging for 60W, 90W etc. laptops which is less than 150W, industrial grade ( -40 degree to + 80 degree) work temperature, suitable for AC adapter, power supply and so on
Out of stock
Specifiction:
- Input voltage: DC 10V-32V
- Output voltage: DC12V-35V(adjustable)
- Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
- Output Current: 10A (MAX)
- Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power
- Module Properties: non-isolated step-up module (BOOST)
- Size: 65mm x 35mm x 21mm
Easy to drive 65W 90W dual-core notebook. Use a 12V batterydrive 19V 3.42A notebook, the module temperature about 45℃
Conversion efficiency: 94% (For reference: when Input 19V 2.5AOutput 16V)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40℃ ℃) (ambient temperature exceeds 40°c, lower power use, or toenhance heat dissipation)
Full load temperature rise: 45℃
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses andprotection circuits at Input port.)
Input Reverse Polarity Protection: None (please comply with areverse protection or connect a diode at input parts)
| Weight | 64 g |
|---|---|
| Dimensions | 6.4 × 4.6 × 2.6 cm |
