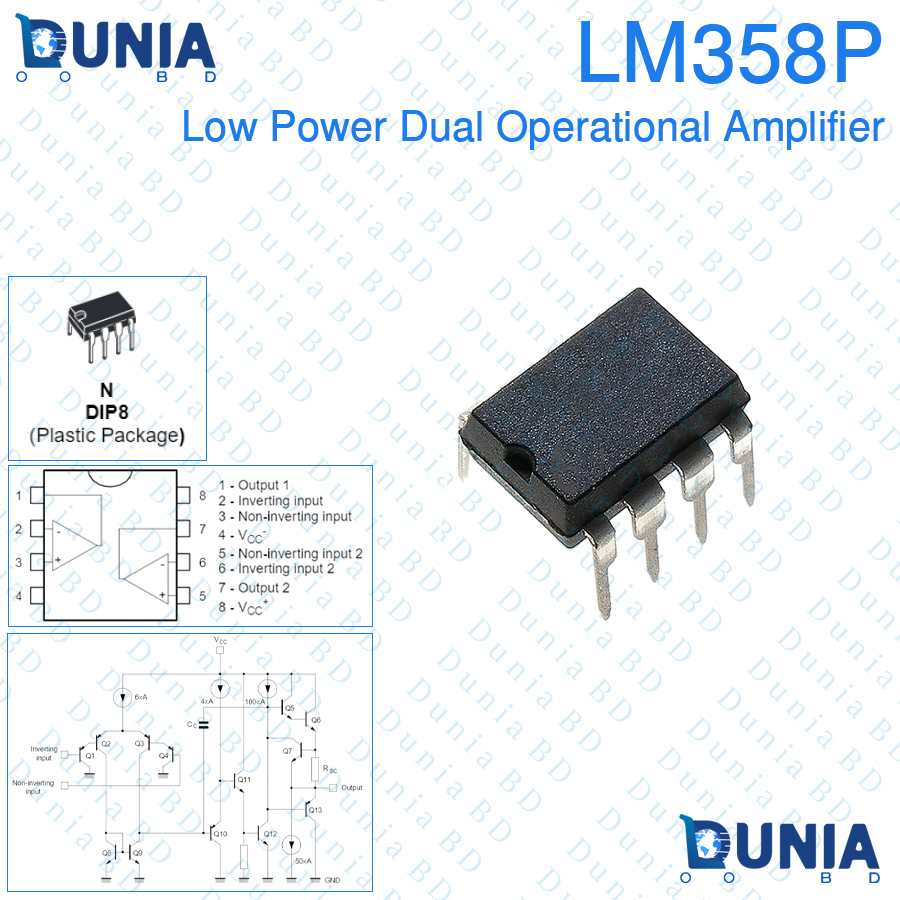

LM358 Low Power Industry-Standard Dual Operational Amplifier IC DIP-8

This item features:

• Wide Supply Ranges
  • Single Supply: 3 V to 32 V
    (26 V for LM2904)
  • Dual Supplies: +-1.5 V to +-16 V
    (+-13 V for LM2904)
• Low Supply-Current Drain, Independent of Supply
  Voltage: 0.7 mA Typical
• Wide Unity Gain Bandwidth: 0.7 MHz
• Common-Mode Input Voltage Range Includes
  Ground, Allowing Direct Sensing Near Ground
• Low Input Bias and Offset Parameters
  • Input Offset Voltage: 3 mV Typical
    A Versions: 2 mV Typical
  • Input Offset Current: 2 nA Typical
  • Input Bias Current: 20 nA Typical
    A Versions: 15 nA Typical
• Differential Input Voltage Range Equal to
  Maximum-Rated Supply Voltage: 32 V
  (26 V for LM2904)
• Open-Loop Differential Voltage Gain:
  100 dB Typical
• Internal Frequency Compensation
• On Products Compliant to MIL-PRF-38535,
  All Parameters are Tested Unless Otherwise
  Noted. On
  All Other Products, Production Processing
  Does Not Necessarily Include Testing
  of All Parameters.

DESCRIPTION:
These circuits consist of two independent, high gain, internally frequency compensated which were designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain is independent of the
magnitude of the power supply voltage. Application areas include transducer amplifiers, de gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard +5V which is used in logic systems and will easily provide the required interface electronics without requiring any additional power supply. ln the linear mode the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.

What is the price of LM358 Low Power Industry-Standard Dual Operational Amplifier IC DIP-8 in Bangladesh?

The latest price of LM358 IC in Bangladesh is Price: ৳67.00 Original price was: ৳67.00.৳65.00Current price is: ৳65.00. taka for 5Pcs and Price: ৳15.00 taka for 1Pcs IC. You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy LM358 Low Power Industry-Standard Dual Operational Amplifier IC DIP-8 in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original LM358 IC From Dunia.com.bd . We have few collection of latest Integrated Circuit to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.
