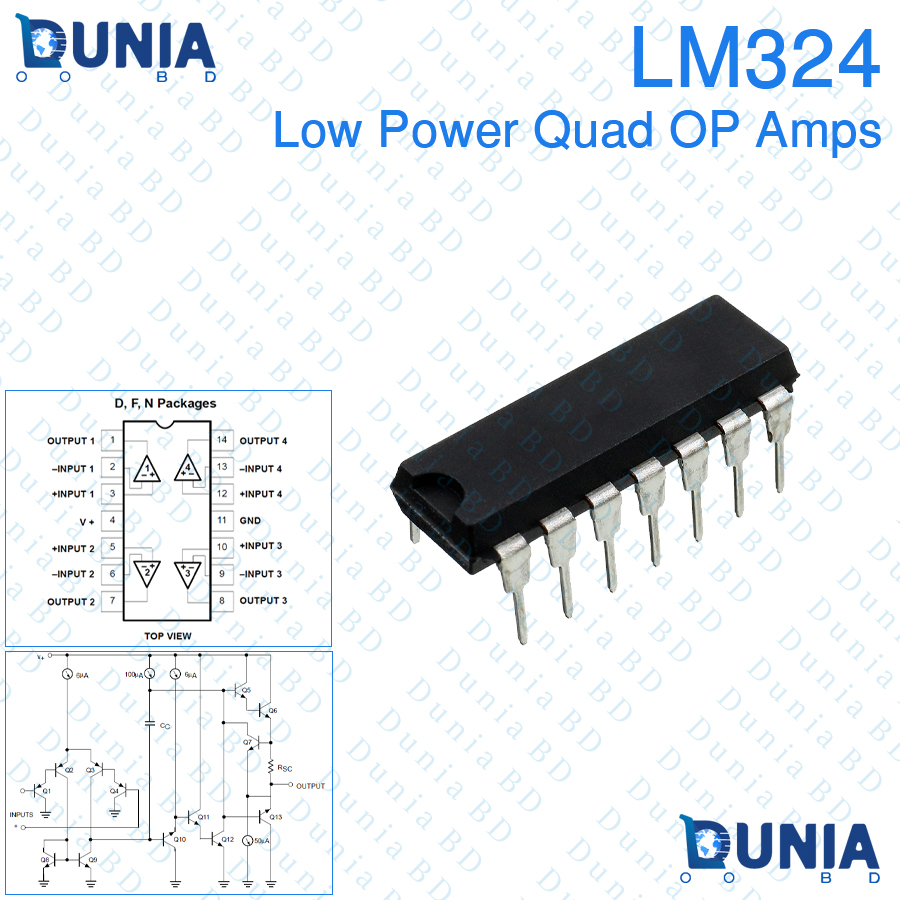

LM324 Low Power Quadruple Operational Amplifier 14 pins Adjustable Voltage Regulator Transistor DIP-14

Specification:

• LM324 is a single-supply Quadruple Operational Amplifier
• Power supply voltage: 3.0 V—32 V
• Op amp type: low power
• Number of amplifiers: Quad
• Application: sensor amplifier
• Number of pins: 14
• Operating temperature range: -40°C to +85°C
• Package type: DIP
• -3dB bandwidth gain product: 1MHz
• Change slope: 0.5V/μs
• Amplifier type: low power consumption
• Power supply voltage max: 32V
• Power supply voltage: 3V
• Surface mount device: through-hole mounting
• Maximum input offset voltage: 7mV
• Rated power supply voltage: +5V

FEATURES

• Internally frequency-compensated for unity gain
• Large DC voltage gain: 100dB
• Wide bandwidth (unity gain): 1MHz (temperature-compensated)
• Wide power supply range Single supply: 3VDC to 30VDC or dual supplies: ±1.5VDC to ±15VDC
• Very low supply current drain: essentially independent of supply voltage (1mW/op amp at +5VDC)
• Low input biasing current: 45nADC (temperature-compensated)
• Low input offset voltage: 2mVDC and offset current: 5nADC
• Differential input voltage range equal to the power supply voltage
• Large output voltage: 0VDC to VCC-1.5VDC swing

DESCRIPTION

The LM124/SA534/LM2902 series consists of four independent, high-gain, internally frequency-compensated operational amplifiers designed specifically to operate from a single power supply over a wide range of voltages.

UNIQUE FEATURES

In the linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage. The unity gain crossover frequency and the input bias current are temperature-compensated.

What is the price of LM324 Low Power Quadruple Operational Amplifier 14 pins Adjustable Voltage Regulator Transistor DIP-14 in Bangladesh?

The latest price of LM324 IC in Bangladesh is 29 taka for 2Pcs and 15 taka for 1Pcs IC. You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.
