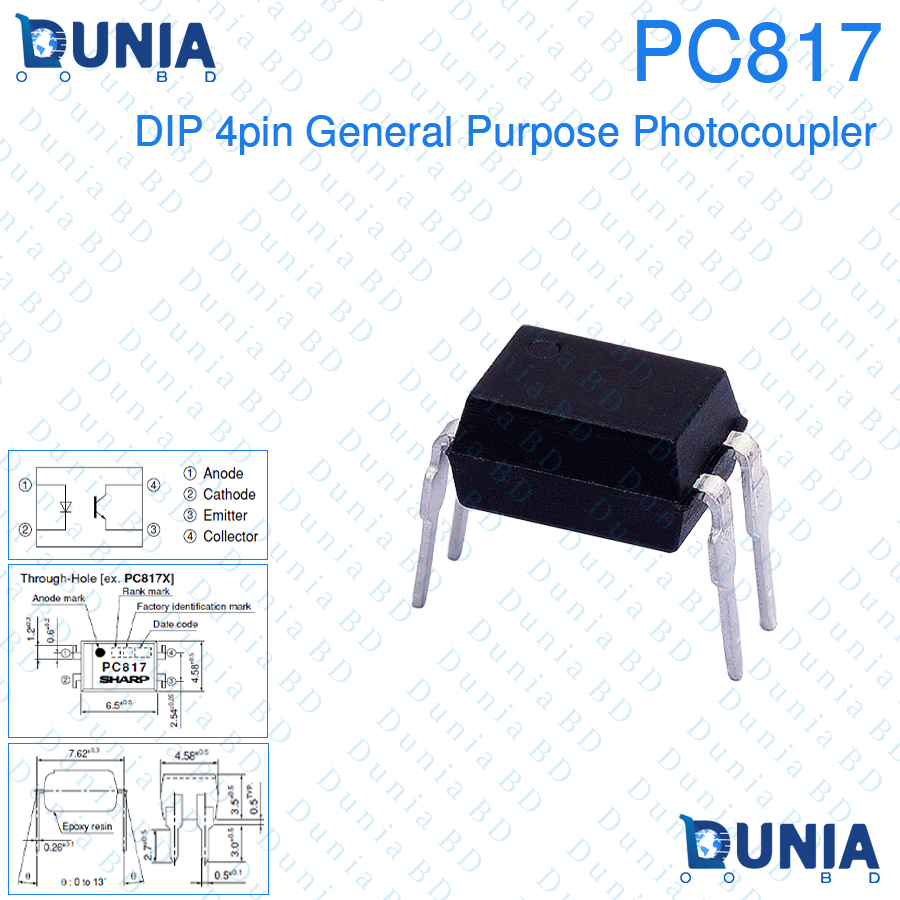

PC817 DIP 4pin General Purpose Photocoupler

Specification:

• Isolation Voltage: 5kV
• Optocoupler Output Type: optical transistor
• Input Current: 20mA
• Output Voltage: 80V
• Number of Pin: 4
• External Width: 6.5mm/ 0.26inch
• External Depth: 4.58mm/ 0.18inch
• External Length: 3.5mm/ 0.14inch
• Operating Temperature Range: -30℃ to + 100 ℃
• Pin Pitch: 2.54mm/ 0.10inch
• Output Type: Phototransistor

Application:

1. I/O isolation for MCUs (Micro Controller Units)
2. Noise suppression in switching circuits
3. Signal transmission between circuits of different potentials and impedances

Features

1. 4pin DIP package
2. Double transfer mold package (Ideal for Flow Soldering)
3. High collector-emitter voltage (VCEO:80V(*)
4. Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V)
5. 5. Several CTR ranks available
6. High isolation voltage between input and output (Viso(rms) : 5.0 kV)
   (*) Up to Date code “P7” (July 2002) VCEO : 35V. From the production Date code “J5” (May 1997) to “P7” (July 2002), however the products were screened by BVCEO≥70V.

What is the price of PC817 DIP 4pin General Purpose Photocoupler in Bangladesh?

The latest price of PC817 4Pin Optocoupler in Bangladesh is Price: ৳26.75 taka for 5Pcs and Price: ৳11.75 taka for 1Pcs Optocoupler. You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy PC817 DIP 4pin General Purpose Photocoupler in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original PC817 4Pin Optocoupler From Dunia.com.bd . We have few collection of latest Integrated Circuit to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price. product at lowest price.
