KCD4 Dual Side Momentary Rocker Switch 6 Pin DPDT Motor Reversing Switch

Specifications

• KCD4 Dual Side Momentary Rocker Switch 6 Pin DPDT Motor Reversing Switch 1pc is a spring-return power control component.
• Model: KCD4.
• Switch Type: Dual Side Momentary Rocker Switch (ON)-OFF-(ON) Self-Resetting.
• Pin Configuration: 6 Pin Double Pole Double Throw (DPDT).
• Rated Current & Voltage: 16A 250V AC / 20A 125V AC.

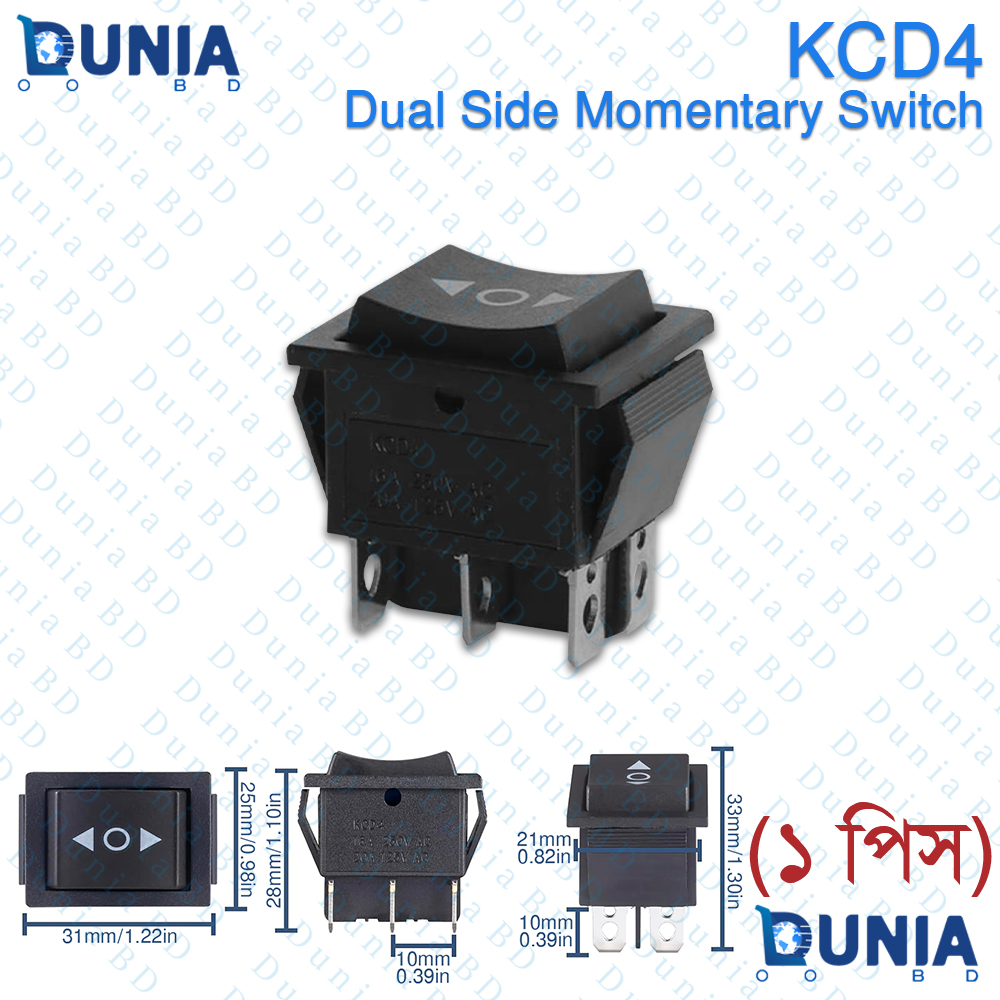

• Overall Dimensions: 31 mm x 25 mm x 33 mm.
• Panel Cutout Size: 28 mm x 21 mm.
• Terminal Width: 10 mm spacing / standard terminal lug connectors.
• Action Type: Momentary (Returns to center OFF position when released).
• Color: Black body with directional arrow markings.
• Quantity: 1 Piece.

Features

• 6-pin DPDT structure ideal for polarity switching and DC motor direction control.
• Spring-return momentary action automatically resets to center OFF position when released.
• High current capacity rating up to 16A at 250V AC for demanding heavy loads.
• Clear laser-printed arrow indicators for easy forward and reverse identification.
• Snap-in panel mounting design ensures quick installation in standard cutouts.
• The KCD4 Dual Side Momentary Rocker Switch 6 Pin DPDT Motor Reversing Switch 1pc is a heavy-duty industrial-grade switch engineered for precision control of electrical circuits and motor direction.
• Designed with a double pole double throw (DPDT) 6-pin layout, this switch allows effortless reversal of DC motor rotation by swapping terminal polarity.
• The auto-reset momentary mechanism ensures the circuit remains active only while pressed, returning safely to the OFF position when released. Built with high-strength thermal plastic housing and silver-alloy contacts, it provides smooth snap action and reliable conductivity for industrial equipment, electric winches, hoists, linear actuators, and DIY power projects.

What is the price of KCD4 Dual Side Momentary Rocker Switch 6 Pin DPDT Motor Reversing Switch 1pc in Bangladesh?

The latest price of KCD4 Dual Side Momentary Rocker Switch 6 Pin DPDT Motor Reversing Switch in Bangladesh is Price: ৳72.50 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy KCD4 Dual Side Momentary Rocker Switch 6 Pin DPDT Motor Reversing Switch 1pc in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original KCD4 Dual Side Momentary Rocker Switch 6 Pin DPDT Motor Reversing Switch From Dunia.com.bd . We have a few collections of latest Rocker Switch to purchase. Order Switch Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the action type of this KCD4 switch?
   It is a dual-side momentary (self-resetting) switch.
2. How many pins does this rocker switch feature?
   It features 6 terminal pins for DPDT wiring.
3. Can this switch reverse DC motor rotation direction?
   Yes, it is ideal for polarity reversal motor control.
4. What is the current rating of this switch?
   It is rated 16A 250VAC and 20A 125VAC.
5. What are the panel cutout dimensions required?
   It fits a standard panel cutout of 28mm x 21mm.
6. Does it stay ON after releasing your finger?
   No, it automatically springs back to center OFF.
7. Are arrow indicators printed on the switch button?
   Yes, top arrow markings indicate directional rocker control.
8. What applications is this momentary switch suitable for?
   Great for electric winches, actuators, hoists, and motors.
9. How many pieces are included per package?
   Each purchase unit contains 1 piece of switch.
10. Is this switch easy to snap-mount in panels?
    Yes, side retention clips ensure tight snap-in installation.
