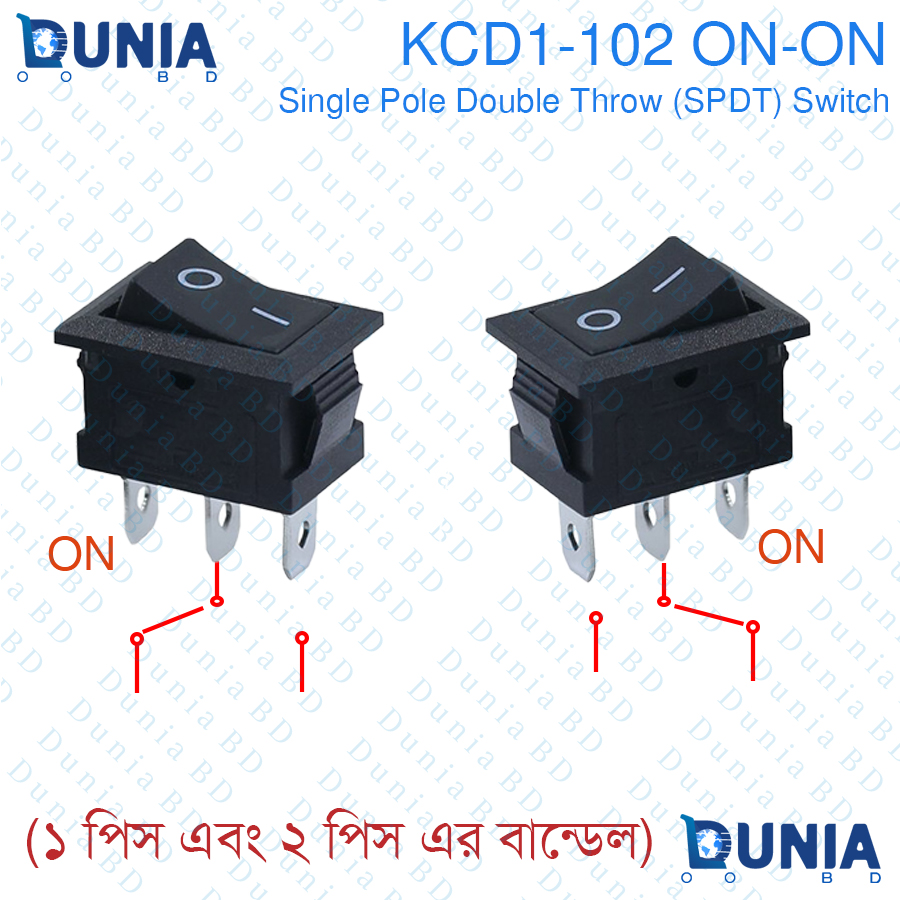

Miniature Single-Pole-Double-Throw SPDT rocker switches for general purpose On/Off/On application. Fitted with 4.8mm blade style terminals. Snap-in mounting, easy to install into panel.
Terminal | Brass with sliver plated | Button color: | Black , |
Rating: | 10A 125VAC or 6A 250VAC | Housing color: | Standard black |
Contact Configuration: | SPDT | Switch Operation: | ON-ON |
Contact Resistance: | <=50mΩ | Operating Temperature: | -25℃~+85℃ |
Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
Dielectric strength: | >=1500VAC/5S/0.5mA | Mechanical Life: | ≥ 100,000 Cycles |
