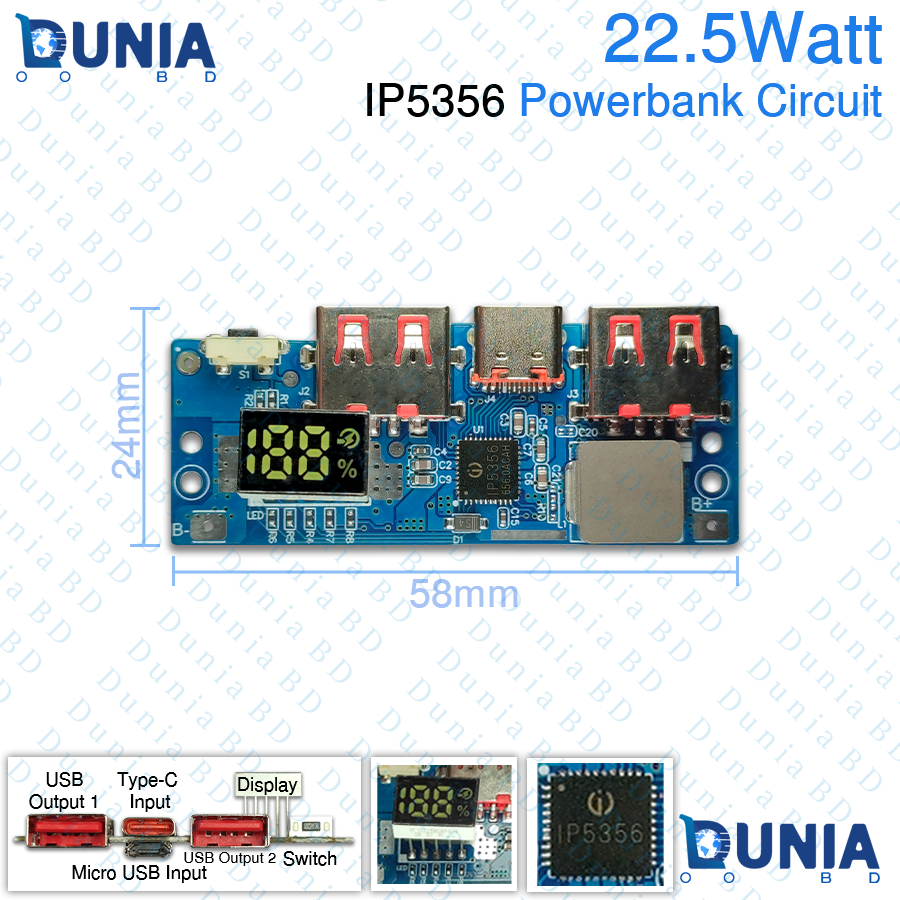

IP5356 Powerbank Circuit 22.5W Board with Digital Display PD QC Fast Charge

Specifications

• Product name: IP5356 Powerbank Circuit
• Chip: IP5356.
• Power Output: 22.5W max (PD/QC supported).
• Input: Type-C 5V/3A, 9V/2A; Micro USB 5V/2A.
• Output: USB-A1/A2: 5V/4.5A, 4.5V/5A, 9V/2A, 12V/1.5A; Type-C: 5V/3A, 9V/2.22A, 12V/1.67A.
• Display: Digital LED percentage indicator.
• Dimensions: 58mm x 24mm.
• Switch: Built-in power on/off switch.
• Battery Compatibility: 3.7V lithium (18650/polymer, not included).
• Protection: Overcharge, over-discharge, overcurrent, short-circuit, temperature.
• Operating Temperature: -10°C to 50°C.

Features

• IP5356 Powerbank Circuit
• Powered by IP5356 chip supporting up to 22.5W PD and QC fast charging.
• Built-in digital LED display shows real-time battery percentage.
• Multiple ports: 2x USB-A output, 1x Type-C input/output, 1x Micro USB input.
• Compact size: 58mm x 24mm, ideal for custom powerbank builds.
• On/off switch for power control.
• Comprehensive protection: overcharge, over-discharge, overcurrent, short-circuit.
• Easy integration with 18650 or polymer lithium batteries.
• The IP5356 22.5W Powerbank Circuit Board from Dunia BD is a high-performance module designed for DIY enthusiasts and electronics builders in Bangladesh. Featuring the advanced IP5356 chip, this compact board supports up to 22.5W fast charging with PD (Power Delivery) and QC (Quick Charge) protocols, making it perfect for modern smartphones, tablets, and other USB-powered devices.
• The built-in digital LED display provides accurate real-time battery percentage, giving you full control over power status. With versatile connectivity—including two USB-A outputs for simultaneous charging, Type-C for bidirectional input/output, and Micro USB input—this circuit offers maximum flexibility. A convenient on/off switch allows easy power management.
• Measuring just 58mm x 24mm, the board is highly compact and fits seamlessly into custom powerbank enclosures. It supports 3.7V lithium batteries (18650 or polymer cells, sold separately) and includes robust safety features like overcharge, over-discharge, overcurrent, short-circuit, and temperature protection. Whether you’re building a high-capacity powerbank or upgrading an existing one, the IP5356 module delivers reliable, professional-grade performance. Available now at Dunia BD—your trusted source for quality electronics components in Bangladesh.

What is the price of IP5356 Powerbank Circuit 22.5W Board with Digital Display PD QC Fast Charge in Bangladesh?

The latest price of Powerbank 22.5watt Circuit in Bangladesh is Price: ৳350.00 taka for 1 Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy IP5356 Powerbank Circuit 22.5W Board with Digital Display PD QC Fast Charge in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original Powerbank 22.5watt Circuit From Dunia.com.bd . We have few collection of latest Charger Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

Q1: What chip powers this circuit? A1: It uses the IP5356 integrated charging management chip.

Q2: Does it support fast charging?

A2: Yes, up to 22.5W with PD and QC protocols.

Q3: What ports are available?

A3: 2x USB-A output, 1x Type-C input/output, 1x Micro USB input.

Q4: Is a digital display included?

A4: Yes, it shows real-time battery percentage on an LED screen.

Q5: What batteries can I use?

A5: Compatible with 3.7V 18650 or lithium polymer batteries (not included).

Q6: Are there safety protections?

A6: Yes—overcharge, over-discharge, overcurrent, short-circuit, and temperature protection.

Q7: Is there a power switch?

A7: Yes, a built-in on/off switch is included.

Q8: What are the dimensions?

A8: 58mm length x 24mm width.

Q9: Can it charge iPhones fast?

A9: Yes, Type-C supports PD fast charging for iPhones.

Q10: Is soldering required?

A10: Yes, basic soldering is needed to connect batteries and case.
