IP2312 3A with USB Type-C Lithium Battery Charger Module
৳80.00
20 in stock
Description
Product description
- Feature: – Master Chip: IP2312
- Input voltage: 4.5 ~ 5.5V
- Charging cut-off voltage: 4.2V/4.35V (the output voltage is available in two versions)
- Charging current: 3A (the current can be changed by adjusting the resistance)
- Indicator light: yes,
- Red: working indicator.
- Blue: full charge indicator.
- Conversion efficiency: 3A 93%, 2A 94%, 1A 95% (data is for reference only)
IP2312 uses full CC/CV charging mode.
- When the battery voltage is less than 3V, it enters the trickle charging mode and charges the battery with a charging current of 100mA.
- When the battery voltage is higher than 3V, enter the DC charging mode to charge the battery with a constant charging current.
- When the battery voltage is close to 4.2V and the charging current is less than 300mA, it enters into constant voltage charging mode.
- After entering the constant voltage mode, the charging is stopped after every 4 minutes, and the battery voltage is detected to be higher than 4.15V.
- If it is higher than 4.15V, the charging is stopped, otherwise, charging continues, then detection is performed after 4 minutes.
- When the battery is fully charged, if it detects that the battery voltage is lower than 4.1V, it will turn on to charge the battery.
- Instructions for adjusting charging current: – 3A default
- Remove 2A resistor, replace with 135k 1A. Resistor
What is the price of IP2312 3A with USB Type-C Lithium Battery Charger Module in Bangladesh?
The latest price of IP2312 3A with USB Type-C Lithium Battery Charger Module in Bangladesh is Price: ৳80.00 taka for 1Pcs Charger Module . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.
Buy IP2312 3A with USB Type-C Lithium Battery Charger Module in Bangladesh from online at Dunia.com.bd.
In Bangladesh, you can get original IP2312 3A with USB Type-C Lithium Battery Charger Module From Dunia.com.bd . We have few collection of latest Charger Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.
Additional information
| Weight | 3 g |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
Reviews (5)
5 reviews for IP2312 3A with USB Type-C Lithium Battery Charger Module
Only logged in customers who have purchased this product may leave a review.
Related products
Charger Module
PD65W Fast Charging Module Type-C Interface PD3.1 PPS Fast Charging QC3.0 SCP CKCS U1E
Charger Module
9V 1A 18650 lithium battery boost up UPS module Type-C simultaneously charge discharge
Charger Module

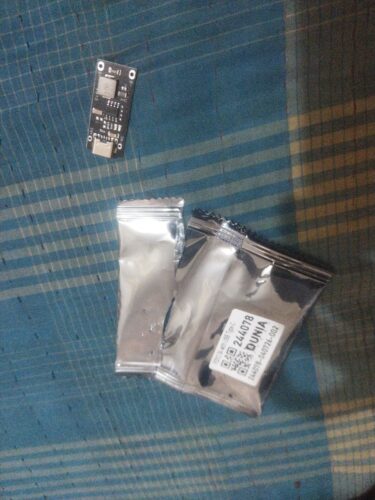

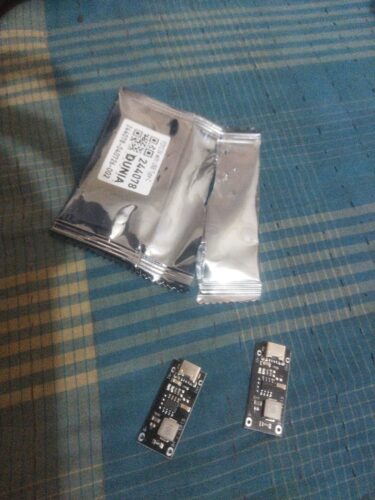

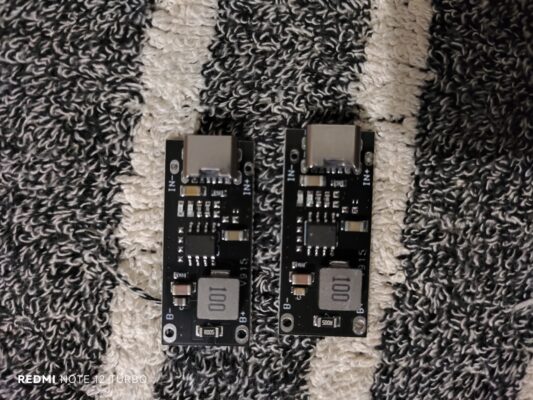

Thanks for sending the original product..
