Specifications

• FF-180 dc motor
• Model: FF-180PH (or equivalent)
• Voltage Range: 3V – 6V DC
• No-Load Speed: 12000 RPM @ 3V, 18000 RPM @ 6V
• No-Load Current: 0.15A @ 3V, 0.25A @ 6V
• Stall Torque: ~15g-cm @ 3V
• Stall Current: ~1.8A @ 3V
• Shaft Type: Brass turner (knurled)
• Shaft Length: 12.5mm (from body)
• Shaft Diameter: 2.5mm (knurled section 4mm)

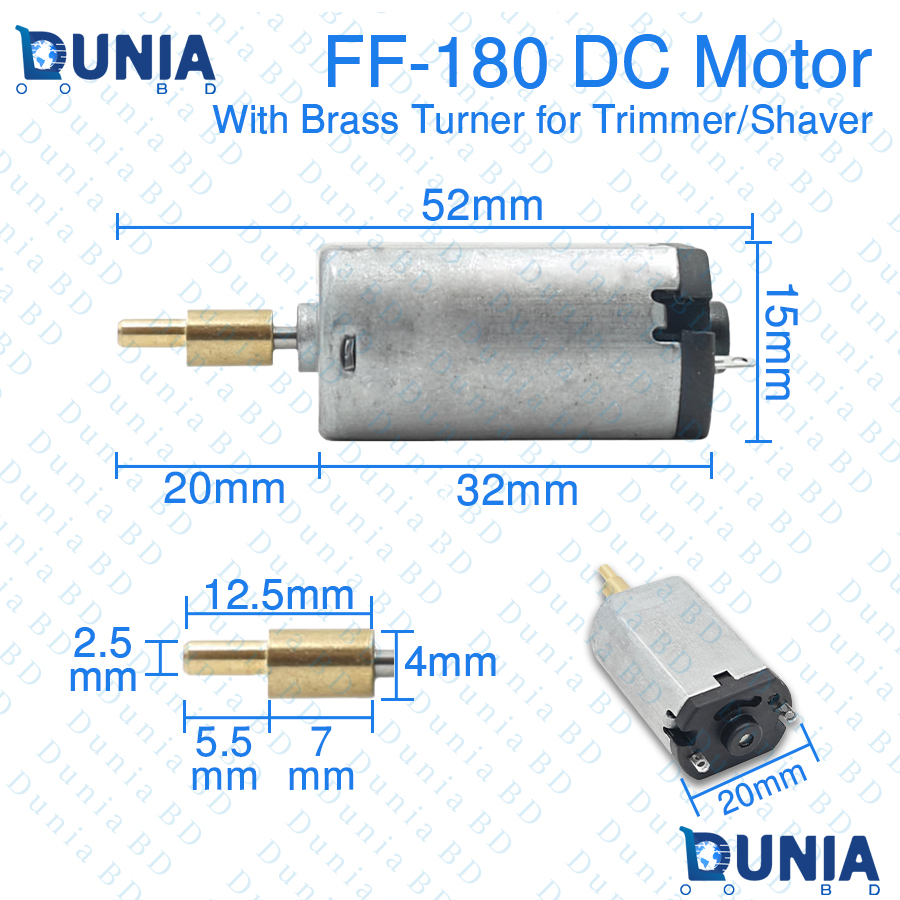

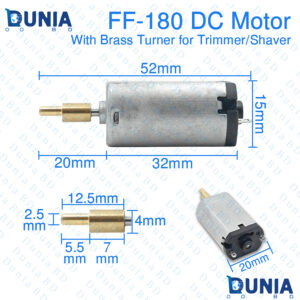

• Body Dimensions: 32mm (L) x 20mm (W) x 15mm (H)
• Weight: 25g
• Terminal: Solder pads
• Rotation: CW/CCW (reversible)

Features

• Pre-installed brass turner shaft for direct blade attachment
• Operating voltage: 3V to 6V DC
• No-load speed: 12000 RPM (3V) to 18000 RPM (6V)
• Compact size: 32mm x 20mm x 15mm
• High torque at low voltage
• Low noise and vibration
• Solderable terminals for easy connection
• Reversible direction (swap polarity)

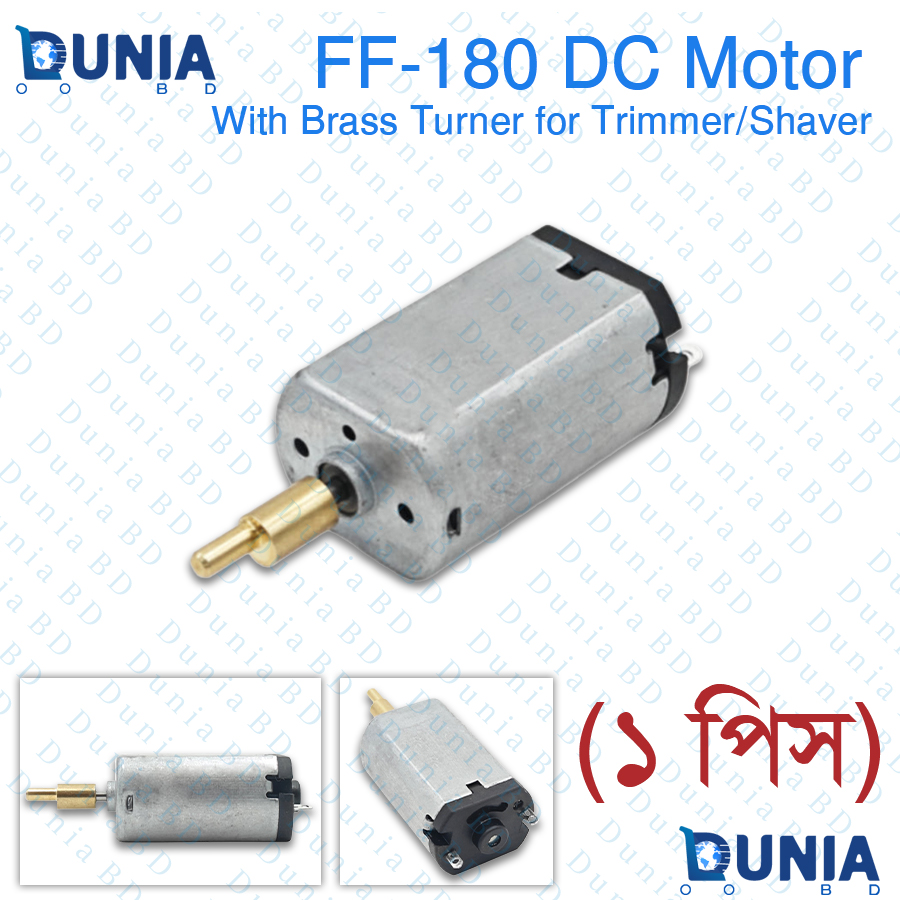

• The FF-180 DC Motor with Brass Turner is a high-performance micro motor designed for precision applications like hair trimmers, electric shavers, and small appliances. The pre-fitted brass turner shaft features a knurled section for secure blade or gear attachment without additional coupling.
• Running on 3-6V, it delivers impressive speeds up to 18000 RPM with minimal noise – perfect for personal care devices and hobby projects. The compact form factor fits easily into tight spaces, while the durable metal casing ensures long life.
• Commonly used in DIY robotics, mini drones, toy cars, and science projects. The motor is reversible by swapping polarity, making it versatile for bidirectional mechanisms.
• Solder directly to the terminals or use connectors. Whether replacing a worn trimmer motor or building a custom gadget, the FF-180 offers reliable power in a tiny package.

What is the price of FF-180 DC Motor with Brass Turner High Speed for Trimmer, Shaver, Toys in Bangladesh?

The latest price of Vibration Sensor Module in Bangladesh is Price: ৳102.50 taka for 1 Pcs . You can buy this product at better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy FF-180 DC Motor with Brass Turner High Speed for Trimmer, Shaver, Toys in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original Vibration Sensor Module From Dunia.com.bd . We have few collection of latest DC Motor to purchase. Order Electric Motor Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What voltage should I use?
   3V to 6V DC. Do not exceed 6V to avoid damage.
2. Does it come with the brass turner?
   Yes, the brass knurled shaft is pre-installed.
3. Can I attach a blade directly?
   Yes, the knurled section grips trimmer/shaver blades securely.
4. What is the RPM at 5V?
   Approximately 15000-16000 RPM (no load).
5. Is it reversible?
   Yes, swap positive and negative wires to change direction.
6. How much current does it draw?
   0.15A-0.25A no load, up to 1.8A when stalled.
7. Can I use it with Arduino?
   Yes, with a motor driver (e.g., L298N) due to current draw.
8. Is it quiet?
   Very low noise compared to larger motors.
9. What is the shaft length?
   12.5mm from motor body to tip.
10. Suitable for continuous use?
    Best for intermittent use (e.g., trimmers). Add heatsink for long run.
