816 Coreless Drone Motor 8x16mm High Speed Micro Brushed Motor for RC Quadcopter Tiny Drone

Specifications

• 816 coreless drone motor
• Model: 816 Coreless Brushed Motor

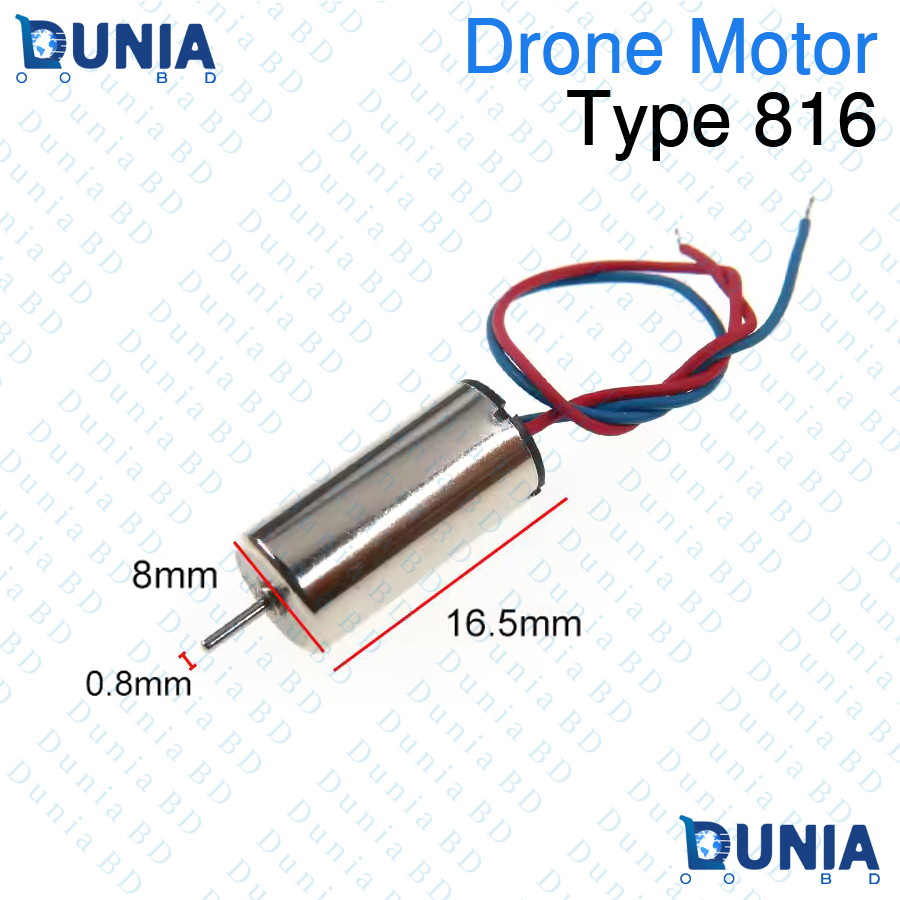

• Motor Dimensions: 8mm diameter x 16mm length (approx. 16.5mm overall)
• Shaft Diameter: 0.8-1mm
• Operating Voltage: 3.0-4.2V DC (rated 3.7V)
• No-Load Speed: 40,000-60,000 RPM (approx.)
• No-Load Current: ~100-200mA
• Weight: Approx. 4-5g
• Rotation: CW or CCW
• Application: Micro quadcopters, RC aircraft, drone models

Features

• Compact high-speed coreless brushed motor for RC drones
• Size: 8mm diameter x 16-16.5mm length
• Lightweight (~4-5g) with strong performance
• No-load speeds up to 40,000-60,000 RPM at 3.7V
• Efficient low-loss design for better battery life
• Reversible CW/CCW rotation
• Powerful NdFeB magnets
• Suited for mini quadcopters, aircraft models, toys
• The 816 Coreless Drone Motor (8x16mm) offers a great balance of size and power for micro quadcopters and RC drones. Slightly larger than 7mm variants, it provides more torque and stability while staying compact for small frames.
• Coreless tech ensures high efficiency, fast response, and low EMI. Running on 3.7V, it spins at 40,000-60,000 RPM no-load for strong lift with appropriate props. Ideal for hobby RC builds, mini drones, or educational projects.
• In Bangladesh, perfect for makers wanting reliable, high-RPM motors with easy integration.

What is the price of 816 Coreless Drone Motor 8x16mm High Speed Micro Brushed Motor for RC Quadcopter Tiny Drone in Bangladesh?

The latest price of 816 Coreless Drone Motor 8x16mm in Bangladesh starts from Price: ৳62.00 taka for 1Pcs Tweezer. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 816 Coreless Drone Motor 8x16mm High Speed Micro Brushed Motor for RC Quadcopter Tiny Drone in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 816 Coreless Drone Motor 8x16mm From Dunia.com.bd. We have few collection of latest DC Motor to purchase. Order Electric Motor Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. Size of 816 coreless motor?
   8mm diameter x 16mm length (approx.).
2. Voltage range?
   3.0-4.2V, optimal at 3.7V.
3. RPM range?
   40,000-60,000 no-load at 3.7V.
4. Shaft diameter?
   Typically 0.8-1mm.
5. Main uses?
   Micro quadcopters, RC models, mini drones.
6. Direction?
   CW/CCW available.
7. Weight approx.?
   4-5 grams.
8. Better than smaller motors?
   More torque in similar compact size.
9. Current draw?
   Moderate no-load ~100-200mA.
