545 Motor 24V DC High Speed Double Ball Bearing Motor for DIY Projects

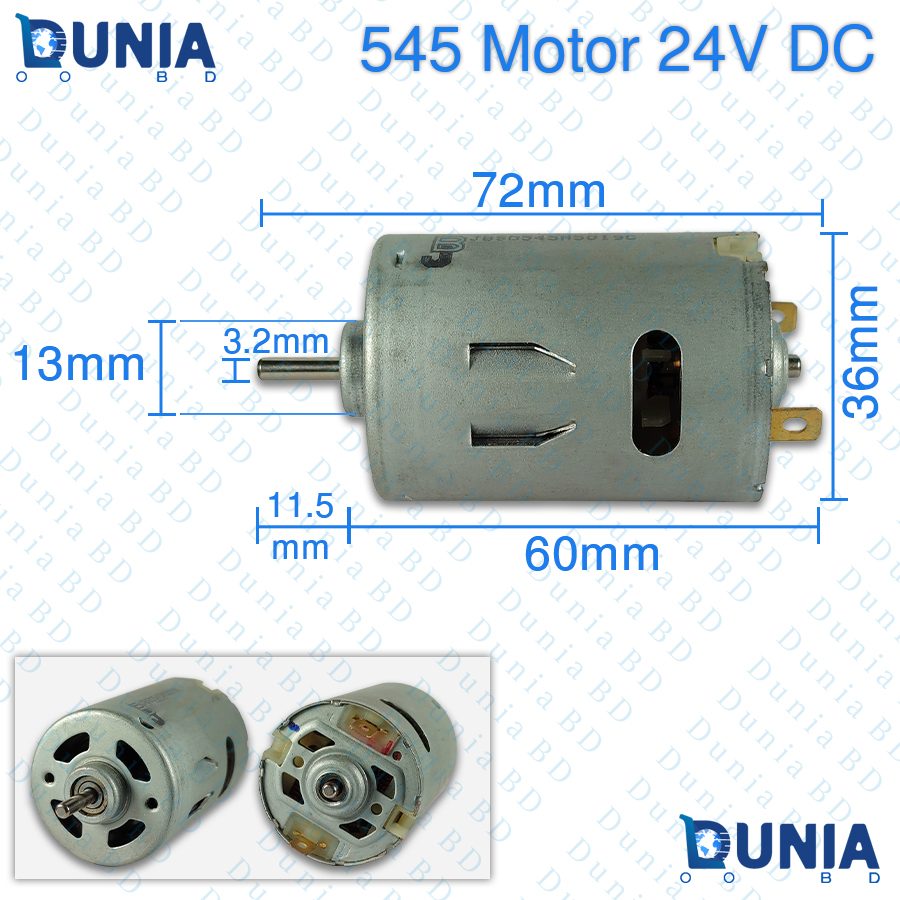

Specifications:

• 545 Motor 24V DC comes with high-quality double ball bearings for smooth and stable rotation.
• Operating Voltage: 12V – 24V DC
• Motor Diameter: 36mm
• Body Length: 60mm
• Total Length: 72mm
• Shaft Diameter: 3.2mm
• Shaft Length: 11.5mm
• Front Step Diameter: 13mm

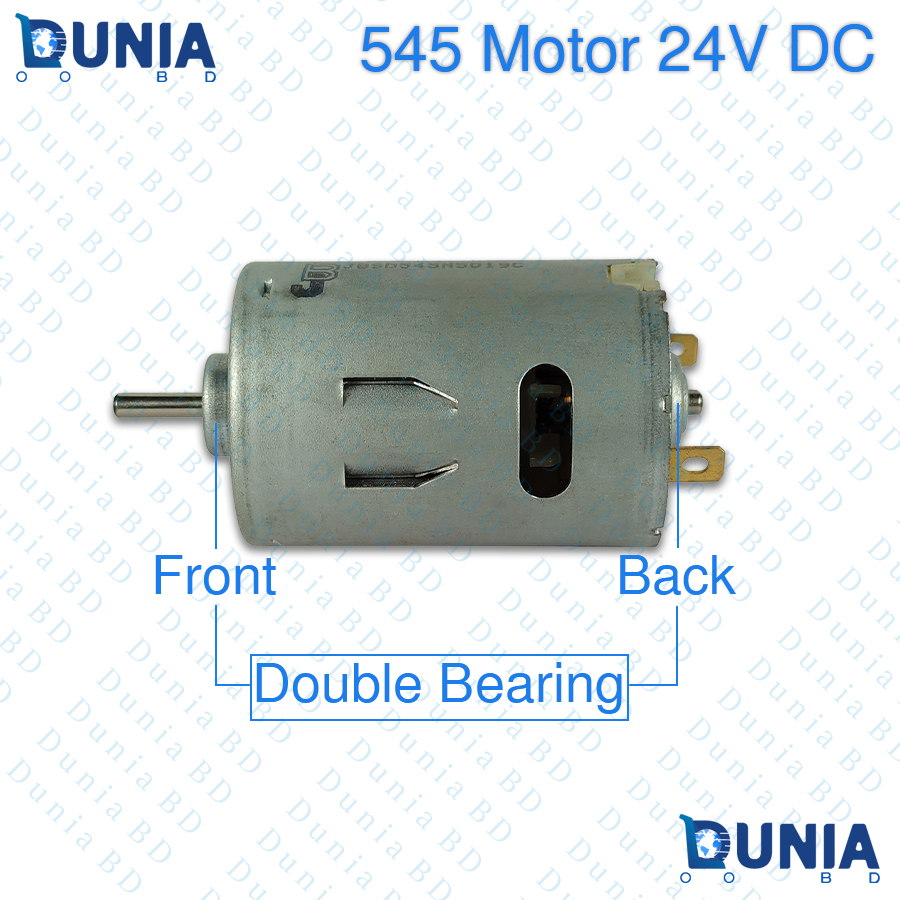

• Bearing Type: Double Ball Bearing (Front & Back)
• Weight: Approx 150-180g

Features

• Double Ball Bearing design ensures long life, low friction, and high stability.
• High Speed and High Torque performance ideal for power tools and robotics.
• Robust Carbon Brush system for reliable electrical contact.
• Compact Size with standardized 3.2mm shaft for easy gear or pulley mounting.
• The 545 Motor 24V DC is a powerful and reliable motion solution designed for high-performance DIY applications.
• Featuring high-grade double ball bearings on both the front and back, this motor minimizes vibration and mechanical wear even at high speeds.
• Its 3.2mm shaft is perfectly suited for common drill chucks, pulleys, and fan blades.
• Whether you are building a custom PCB drill, a powerful mini fan, or a high-torque robotic arm, the 545 motor provides the strength and durability you need.
• Its carbon brush design ensures consistent power delivery across its operating voltage range of 12V to 24V.

What is the price of 545 Motor 24V DC High Speed Double Ball Bearing Motor for DIY Projects in Bangladesh?

The latest price of 545 Motor 24V DC High Speed Double Ball Bearing Motor for DIY Projects in Bangladesh is Price: ৳305.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 545 Motor 24V DC High Speed Double Ball Bearing Motor for DIY Projects in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original 545 Motor 24V DC High Speed Double Ball Bearing Motor for DIY Projects From Dunia.com.bd . We have a few collections of latest DC Motor to purchase. Order Electric Motor Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the rated voltage?
   It is rated for 24V DC, but works from 12V.
2. Does it have ball bearings?
   Yes, it features double ball bearings for smooth rotation.
3. What is the shaft size?
   The shaft diameter is standard 3.2mm.
4. Can I use it as a drill motor?
   Yes, it is very popular for DIY PCB mini drills.
5. Is it a high-speed motor?
   Yes, at 24V it provides high RPM for fans and tools.
6. Can I control the speed?
   Yes, using a DC PWM speed controller.
7. Does it produce much noise?
   No, the double bearings significantly reduce mechanical noise.
8. Is it reversible?
   Yes, just swap the positive and negative terminals.
9. What is the body diameter?
   The outer body diameter is 36mm.
10. Is it suitable for robotics?
    Yes, it is ideal for high-torque robotic wheels and gearboxes.
