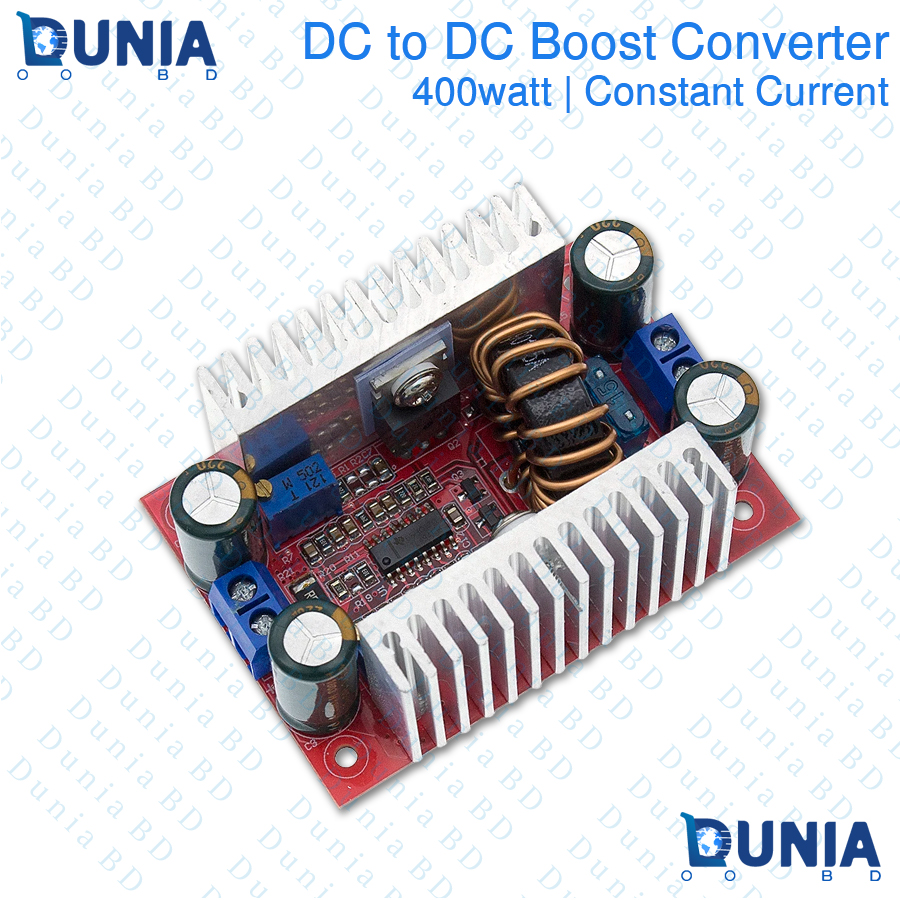

400W DC to DC Boost Converter Constant Current Step Up Power Supply Module

Specification:

• 400W DC to DC Boost Converter Constant Current Step Up Power Supply Module
• Module properties: non-isolated step-up module (BOOST)
• Input voltage: DC8.5V-50V
• Input current: 15A (MAX) exceeds 8A please enhance heat dissipation
• Quiescent current: 10mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
• Output voltage: 10-60V continuously adjustable
• Constant] range: 0.2-12A
• Temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
• Operating frequency: 150KHz
• Conversion efficiency: up to 96%
• Overcurrent protection: yes
• Input reverse polarity protection: no
• Installation: 4 2.55mm screw holes
• Connection method: Connection Output

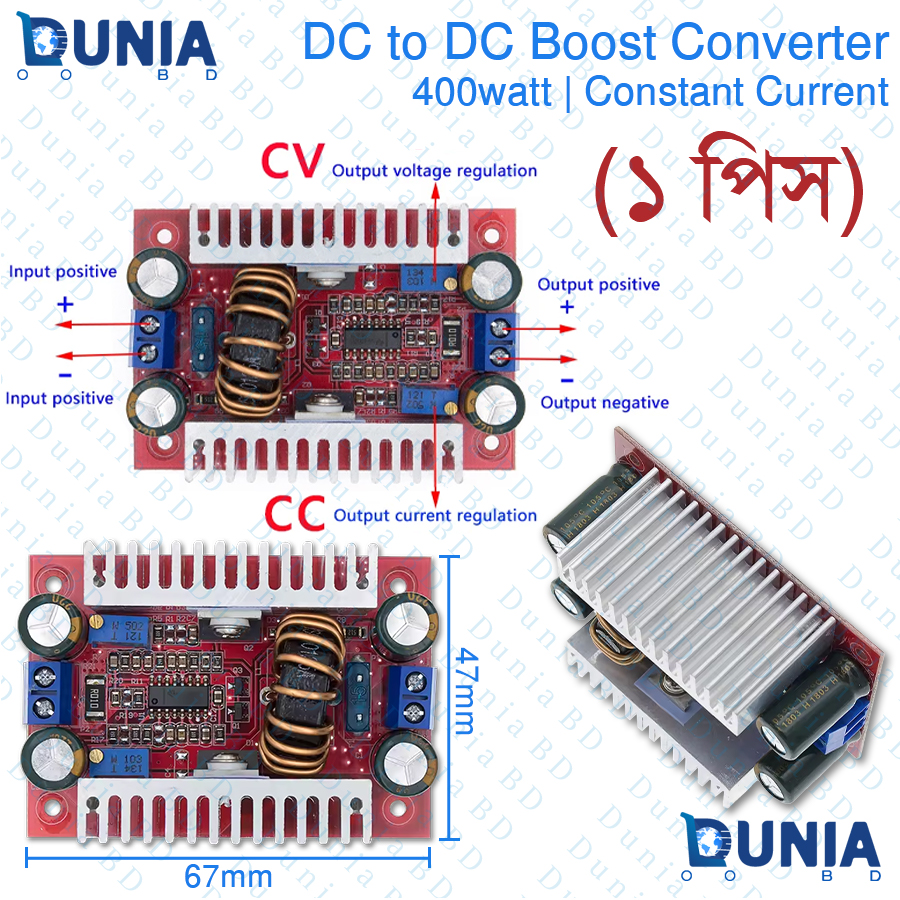

• Module size: 67mm X48mm X 28mm (LxWxH)
• Single module: 60 g

Features:

• 400W DC to DC Boost Converter Constant Current Step Up Power Supply Module 1Pack is the primary system component.
• Product Type: Non-isolated Step-Up Module (BOOST)
• Power Rating: 400 Watt maximum continuous threshold
• Regulation Control: Dual Multi-turn Potentiometers for Constant Voltage (CV) and Constant Current (CC)
• Input Interface: Heavy-duty 2-Pin Screw Terminals (Input Positive + / Input Negative -)
• Output Interface: Heavy-duty 2-Pin Screw Terminals (Output Positive + / Output Negative -)
• Thermal Management: Dual Premium Aluminum Extruded Fin Heatsinks
• Circuit Protection: High-capacity onboard fuse protection and robust filtering capacitors
• Equipped with a dual CV and CC adjustment matrix for precise control over both target voltage and current ceilings.
• Features an oversized dual-sided aluminum heatsink layout to maximize passive heat dissipation during high-wattage steps.
• High-frequency toroid inductor tracking ensures clean power conversion with minimized output ripple noise.
• Industrial-grade onboard screw-clamp blocks deliver a rock-solid connection for heavy-gauge input and output power cables.
• The 400W DC to DC Boost Converter Constant Current Step Up Power Supply Module 1Pack is an industrial-grade, high-efficiency power regulation solution engineered for heavy-duty DC voltage stepping, high-power LED driver arrays, and custom DIY solar battery charging networks.
• Measuring a compact 67mm by 47mm, this robust circuit architecture takes a lower DC input voltage and scales it upward to your precise operating requirement via a dual-potentiometer system that safely isolates constant voltage (CV) benchmarks from constant current (CC) restrictions.
• To ensure absolute operational safety under dense thermal strain, the module is armored on both flanks with expansive aluminum fin heatsinks that pull destructive heat away from the switching transistors.
• Whether you are building an electric vehicle battery charging rig, stabilizing erratic solar panel outputs, or driving high-voltage multi-watt LED floodlight arrays, this 400W boost module delivers rock-solid power output without frequency dropouts or voltage sagging.
• Its clear terminal labeling and onboard multi-turn trimmers make calibration straightforward and reliable for field engineers and DIY hobbyists alike.

What is the price of 400W DC to DC Boost Converter Constant Current Step Up Power Supply Module in Bangladesh?

The latest price of 400W DC to DC Boost Converter Constant Current Module in Bangladesh is Price: ৳455.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 400W DC to DC Boost Converter Constant Current Step Up Power Supply Module in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original 400W DC to DC Boost Converter Constant Current Module From Dunia.com.bd . We have a few collections of latest DC To DC Converter to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the primary function of this electronic circuit module?
   This module steps up a lower DC input voltage to a higher, regulated DC output voltage level.
2. How do you adjust the target voltage level on this boost converter?
   The target voltage level is fine-tuned by rotating the multi-turn CV (Constant Voltage) potentiometer trimmer.
3. Can this 400W step-up module be utilized to charge high-capacity batteries?
   Yes, its integrated CC (Constant Current) control makes it excellent for safe battery charging cycles.
4. What are the exact physical length and width dimensions of the circuit board?
   The printed circuit board measures exactly 67mm in total length and 47mm in total width.
5. Does this module require an active cooling fan for basic low-load operations?
   No, the onboard dual aluminum heatsinks handle moderate heat dissipation passively without a fan.
6. What happens if I misinterpret the terminal markings during custom wiring setup?
   You must strictly match the positive (+) and negative (-) input markings to avoid component failure.
7. Can this boost module step a 24V input down to a lower 12V output level?
   No, this is a strict step-up boost converter; the output voltage must always exceed the input voltage.
8. How are the input and output electrical power cables permanently secured?
   Power wires are securely clamped into place using the built-in heavy-duty blocks with screws.
9. How many boost converter circuit assemblies come included within this single package?
   The standard commercial retail package contains exactly 1 piece of the 400W step-up module.
