Mini 360 Buck Module Step Down Voltage Regulator DC-DC Converter

Specifications

• Mini 360 Buck Module Step Down Voltage Regulator DC-DC Converter
• Module Properties: Non-isolated step-down (BUCK)
• Rectification: Synchronous rectification
• Input Voltage: 4.75V – 23V DC
• Output Voltage: 1.0V – 17V DC (adjustable)
• Output Current: Lowering 3A, continuous 1.8A
• Conversion Efficiency: Up to 96% (highest)
• Switching Frequency: 340 kHz
• Output Ripple: 30mV (no-load)
• Load Regulation: ±0.5%
• Voltage Regulation: ±2.5%
• Operating Temperature: -40°C to +85°C
• Protection Features: 85°C automatic power-off protection, measured 12V3A reverse polarity protection

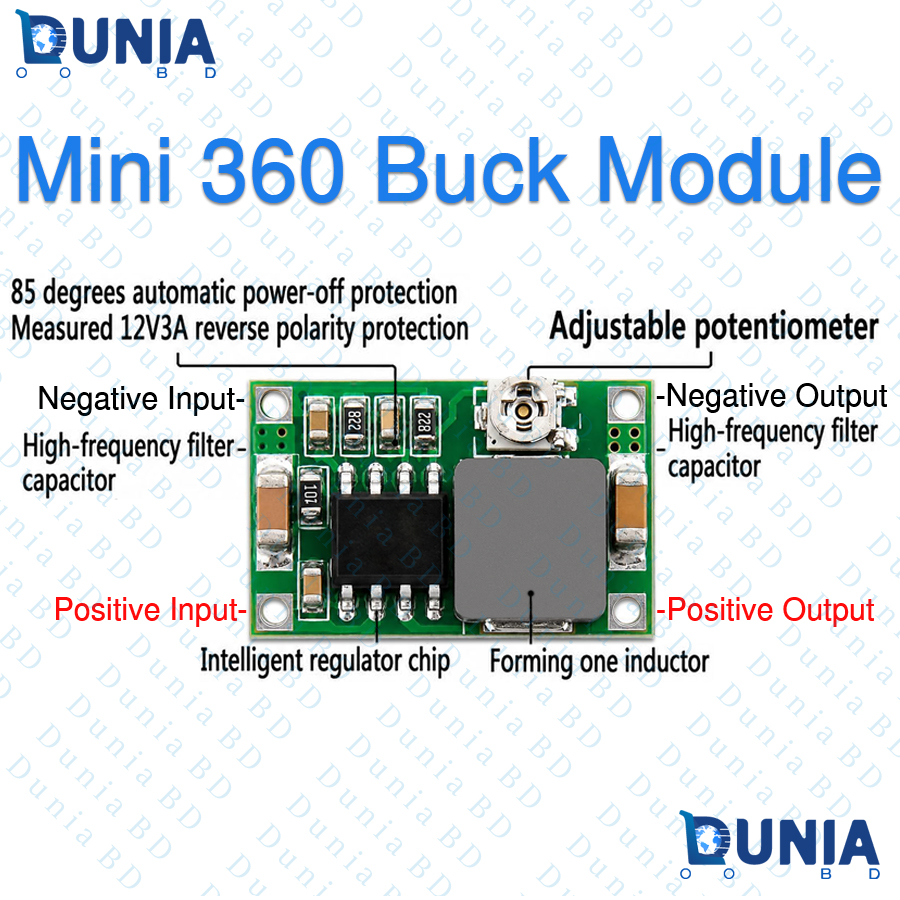

• Components: Intelligent regulator chip, forming one inductor, high-frequency filter capacitors

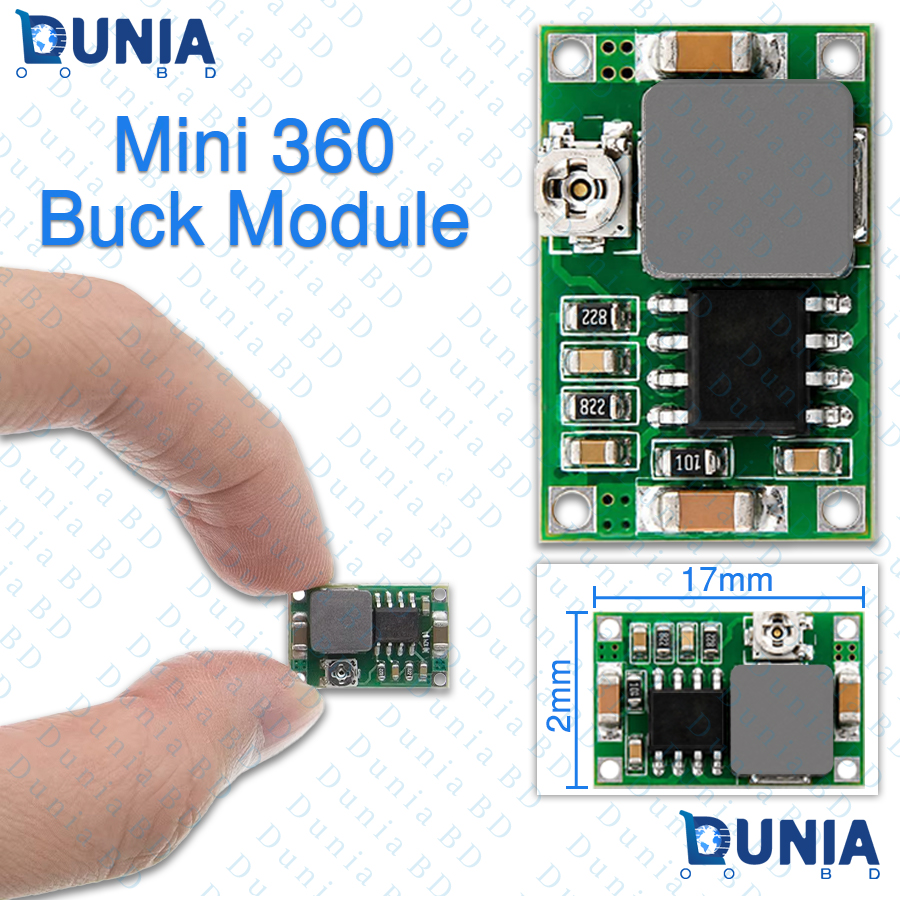

• Dimensions: 17mm x 11mm x 3.8mm (Ultra small size)

Features

• Ultra-small step-down DC-DC buck converter module built with high-efficiency synchronous buck regulator IC.
• Features an adjustable potentiometer for fine-tuning precision output voltage.
• Includes high-frequency filter capacitors at both input and output stages for low voltage ripple.
• Integrated single-piece forming inductor ensures minimal EMI interference and compact layout.
• Enhanced circuit safety with 85°C automatic power-off thermal protection.
• Tested and verified with 12V3A reverse polarity protection mechanism for safe circuit operation.
• The Mini 360 Buck Module Step Down Voltage Regulator is an ultra-compact DC-DC step-down power converter designed for DIY electronics, robotics, and embedded systems where space and weight are critical.
• Built around an intelligent regulator IC with synchronous rectification, this module achieves an impressive power conversion efficiency of up to 96%.
• It accepts a wide input voltage range from 4.75V up to 23V DC and steps it down efficiently to a user-adjustable output voltage between 1.0V and 17V using an onboard multi-turn precision potentiometer.
• Despite its tiny footprint of just 17mm by 11mm, the Mini 360 buck converter supports continuous operating current up to 1.8A and dynamic peak current handling up to 3A.
• The integrated high-frequency input and output filter capacitors effectively minimize voltage ripple down to 30mV under no-load conditions.
• Built-in thermal protection automatically shuts off power if temperatures reach 85°C, while measured 12V3A reverse polarity handling adds extra safety against accidental supply wiring mistakes.
• It is an ideal component for flight controllers, quadcopters, microcontroller power supply modules (Arduino, ESP32, Raspberry Pi), mobile battery-operated projects, and portable electronic gadgets.

What is the price of Mini 360 Buck Module Step Down Voltage Regulator DC-DC Converter in Bangladesh?

The latest price of Mini 360 Buck Module Step Down Voltage Regulator DC-DC Converter in Bangladesh is Price: ৳65.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy Mini 360 Buck Module Step Down Voltage Regulator DC-DC Converter in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original Mini 360 Buck Module Step Down Voltage Regulator DC-DC Converter From Dunia.com.bd . We have a few collections of latest DC To DC Converter to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What is the input voltage range for Mini 360 module?
   The Mini 360 Buck Module operates efficiently from 4.75V to 23V DC input voltage range.
2. What is the maximum output current of Mini 360?
   It provides up to 3A peak output current and 1.8A continuous operation stability.
3. Can output voltage be adjusted on this buck converter?
   Yes, output voltage is easily adjustable from 1.0V to 17V using potentiometer.
4. Does Mini 360 buck converter have thermal shutdown protection?
   Yes, it features automatic power-off protection when thermal level reaches 85 degrees Celsius.
5. Is reverse polarity protection included in Mini 360 converter?
   Yes, the module features measured 12V3A reverse polarity protection mechanism for safety.
6. bThis synchronous step-down module achieves exceptional conversion efficiency reaching up to 96 percent.
7. What are physical dimensions of Mini 360 buck module?
   Ultra-compact size measuring 17mm in length, 11mm in width, and 3.8mm height.
8. Can this module step up voltage from low input?
   No, it is strictly step-down buck module requiring input voltage higher than output.
9. What switching frequency does Mini 360 module run at?
   The buck regulator chip operates at high switching frequency of 340 kHz.
10. Where can Mini 360 Buck Module be used?
    Ideal for robotics, drones, microcontrollers, IoT devices, battery circuits, and custom power supplies.
