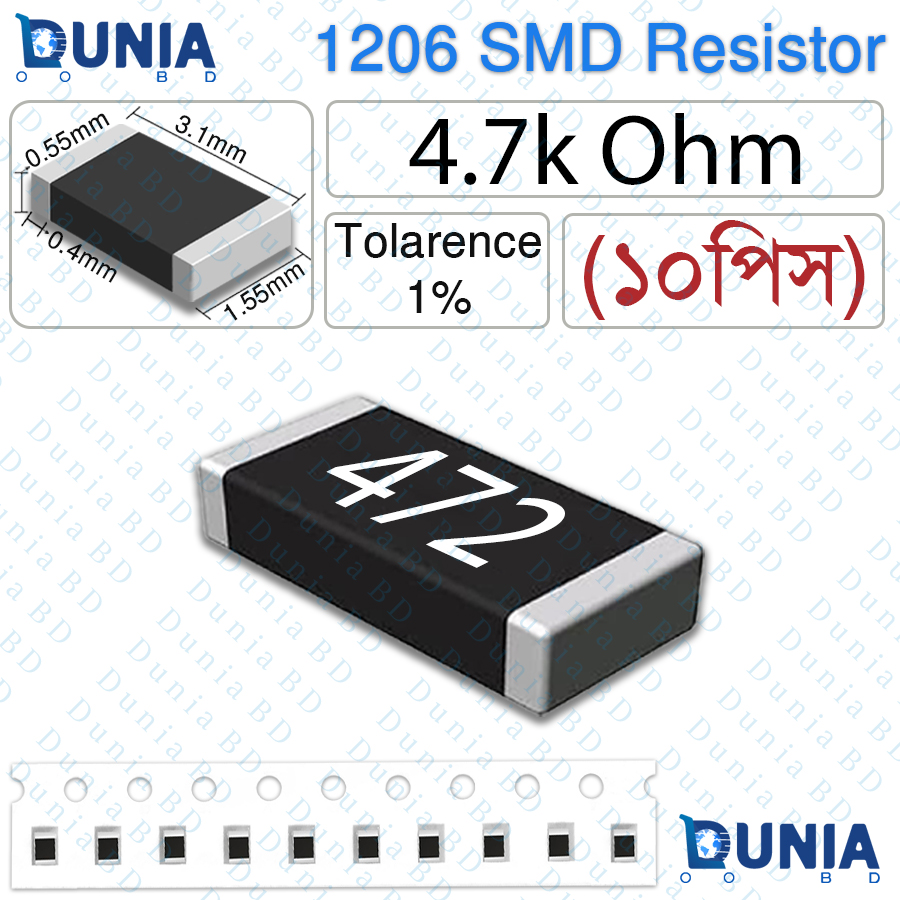

4.7K Ohm 472 1206 SMD Resistor 1/4W 1% Tolerance Precision Chip Resistor

Specifications

• 4.7K Ohm 472 1206 SMD Resistor 1/4W
• Resistance: 4.7K Ohms (4700 Ohms)
• Tolerance: ±1%
• Power Rating: 0.25W (1/4W)
• Package/Case: 1206 (3216 Metric)
• Technology: Thick Film
• Operating Temperature: -55°C ~ +155°C
• Temperature Coefficient: ±100ppm/°C typical
• Dimensions: 3.2mm x 1.6mm x 0.55mm (approx.)
• Mounting Type: Surface Mount
• Packaging: Reel or Cut Tape
• RoHS Status: Compliant

Features

• Resistance Value: 4.7K Ohms (4700 Ohms, 472 marking)
• Case Size: 1206 (3.2mm x 1.6mm)
• Power Rating: 1/4W (0.25W)
• Tolerance: ±1% high precision
• Thick film technology for superior long-term stability and low noise
• Compact SMD design suitable for high-density PCB layouts
• Wide operating temperature range: -55°C to +155°C
• RoHS compliant and lead-free
• Excellent solderability, low TCR, reliable surge handling
• The 4.7K Ohm 472 1206 SMD Resistor is one of the most popular precision values in electronics due to its versatility and widespread use. With 4,700 ohms resistance and tight ±1% tolerance, it excels in voltage divider circuits, pull-up and pull-down networks (especially for buttons, switches, and open-drain/open-collector signals), I2C/SMBus pull-ups, op-amp biasing, current sensing, and many analog/digital interfacing tasks.Rated at 1/4W power, it provides reliable performance without excessive heat in typical applications. The standard 1206 footprint is easy to place with pick-and-place machines and is also forgiving for hand soldering – making it a staple in consumer electronics, IoT modules, industrial automation, automotive controls, battery management systems, Arduino, ESP32, Raspberry Pi projects, and professional PCB designs.
• Constructed with high-quality thick film technology, it offers minimal temperature coefficient drift, very low excess noise, and exceptional long-term reliability. The “472” marking follows the standard 3-digit SMD code: 47 × 10² = 4,700 Ohms. Fully RoHS compliant and designed for modern lead-free reflow soldering processes.
• Perfect for production, prototyping, repair, or stocking your parts kit—this 4.7KΩ 1% 1206 SMD resistor combines high accuracy, affordability, and universal compatibility. Available in bulk reels or small quantities.

What is the price of 4.7K Ohm 472 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 4.7K Ohm 472 1206 SMD Resistor 1/4W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 4.7K Ohm 472 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 4.7K Ohm 472 1206 SMD Resistor 1/4W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What does 472 mean on this 1206 SMD resistor?
   472 = 47 × 10² = 4,700 Ohms = 4.7KΩ
2. What is the power rating?
   1/4W (0.25 watts)
3. Is the tolerance ±1% or ±5%?
   This is the precision ±1% version – much more accurate than 5%
4. What are the dimensions of the 1206 package?
   Approx. 3.2 mm × 1.6 mm × 0.55 mm
5. Suitable for high-temperature operation?
   Yes, operating range typically -55°C to +155°C
6. Is 4.7K a common pull-up value?
   Yes – one of the most frequently used pull-up/pull-down values for microcontrollers, buttons, and I2C (especially at 3.3V–5V)
7. What technology is used?
   Thick film – great balance of precision, cost, and durability
8. How to solder 1206 resistors?
   Reflow oven or hot-air station preferred; fine-tip soldering iron works well manually
9. Why 1206 over smaller sizes like 0805?
   Higher power capability (0.25W) and easier hand soldering/inspection
10. Where to buy bulk 4.7K 1206 1% resistors?
    DigiKey, Mouser, LCSC, Element14, Tayda, or local electronics distributors
