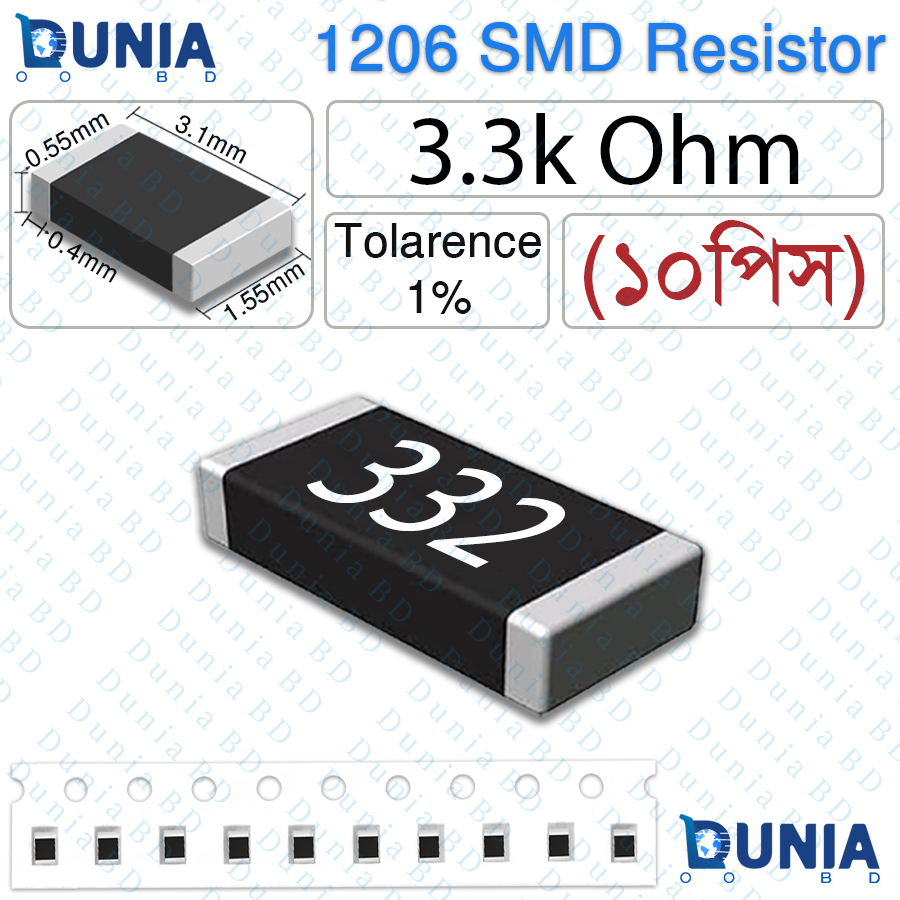

3.3K Ohm 332 1206 SMD Resistor 1/4W 1% Tolerance Precision Chip Resistor

Specifications

• 3.3K Ohm 332 1206 SMD Resistor 1/4W
• Resistance: 3.3K Ohms (3300 Ohms)
• Tolerance: ±1%
• Power Rating: 0.25W (1/4W)
• Package/Case: 1206 (3216 Metric)
• Technology: Thick Film
• Operating Temperature: -55°C ~ +155°C
• Temperature Coefficient: ±100ppm/°C typical
• Dimensions: 3.2mm x 1.6mm x 0.55mm (approx.)
• Mounting Type: Surface Mount
• Packaging: Reel or Cut Tape
• RoHS Status: Compliant

Features

• Resistance Value: 3.3K Ohms (3300 Ohms, 332 marking)
• Case Size: 1206 (3.2mm x 1.6mm)
• Power Rating: 1/4W (0.25W)
• Tolerance: ±1% high precision
• Thick film technology – excellent long-term stability & low noise
• Compact SMD design perfect for high-density boards
• Wide operating temperature range: -55°C to +155°C
• RoHS compliant and fully lead-free
• Great solderability, low TCR, reliable in demanding applications
• The 3.3K Ohm 332 1206 SMD Resistor is a go-to precision component for serious electronics builders and professionals alike. With exactly 3,300 ohms resistance and tight ±1% tolerance, it delivers outstanding performance in voltage divider networks, pull-up and pull-down configurations, I2C and SPI bus termination, op-amp feedback circuits, sensor interfacing, and many other analog & digital applications.Rated at 1/4W (0.25W), it handles typical circuit loads with ease while staying cool and stable. The widely used 1206 package size offers excellent compatibility with both automated SMT assembly and hand soldering – making it a favorite in consumer electronics, IoT devices, industrial controllers, battery-powered designs, Arduino, Raspberry Pi, ESP32 projects, and prototyping work.
• Manufactured with high-quality thick film technology, this resistor provides minimal temperature drift, very low excess noise, and strong long-term reliability. The clear “332” marking follows the industry-standard 3-digit code: 33 × 10² = 3,300 Ohms. RoHS compliant and optimized for modern lead-free reflow processes.
• Whether you’re mass-producing, prototyping the next big thing, or restocking your workbench, this 3.3KΩ 1% 1206 SMD resistor gives you professional-grade accuracy and unbeatable dependability. Available in bulk reels or convenient small packs.

What is the price of 3.3K Ohm 332 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 3.3K Ohm 332 1206 SMD Resistor 1/4W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 3.3K Ohm 332 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 3.3K Ohm 332 1206 SMD Resistor 1/4W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What does 332 mean on a 1206 SMD resistor?
   332 = 33 × 10² = 3,300 Ohms = 3.3KΩ
2. What is the power rating of this resistor?
   1/4W (0.25 watts)
3. Is it really ±1% tolerance or just 5%?
   This is the high-precision ±1% version – much tighter accuracy
4. What are the actual dimensions of 1206 size?
   Approximately 3.2 mm long × 1.6 mm wide × 0.55 mm thick
5. Can I use it in high-temperature environments?
   Yes – rated from -55°C to +155°C
6. Is 3.3K a good value for I2C pull-up resistors?
   Yes – 3.3kΩ is one of the most commonly recommended values for I2C pull-ups (especially with 3.3V logic)
7. What technology is this resistor made with?
   Thick film – excellent combination of precision, cost and reliability
8. How do you solder 1206 SMD resistors?
   Best with reflow oven or hot-air station; fine-tip iron works well for hand soldering
9. Why is 1206 size popular compared to smaller packages?
   Higher power rating (0.25W) and much easier to manually solder than 0805 or 0603
10. Where can I buy large quantities of these resistors?
    Major distributors like DigiKey, Mouser, LCSC, Element14, or local electronics suppliers
