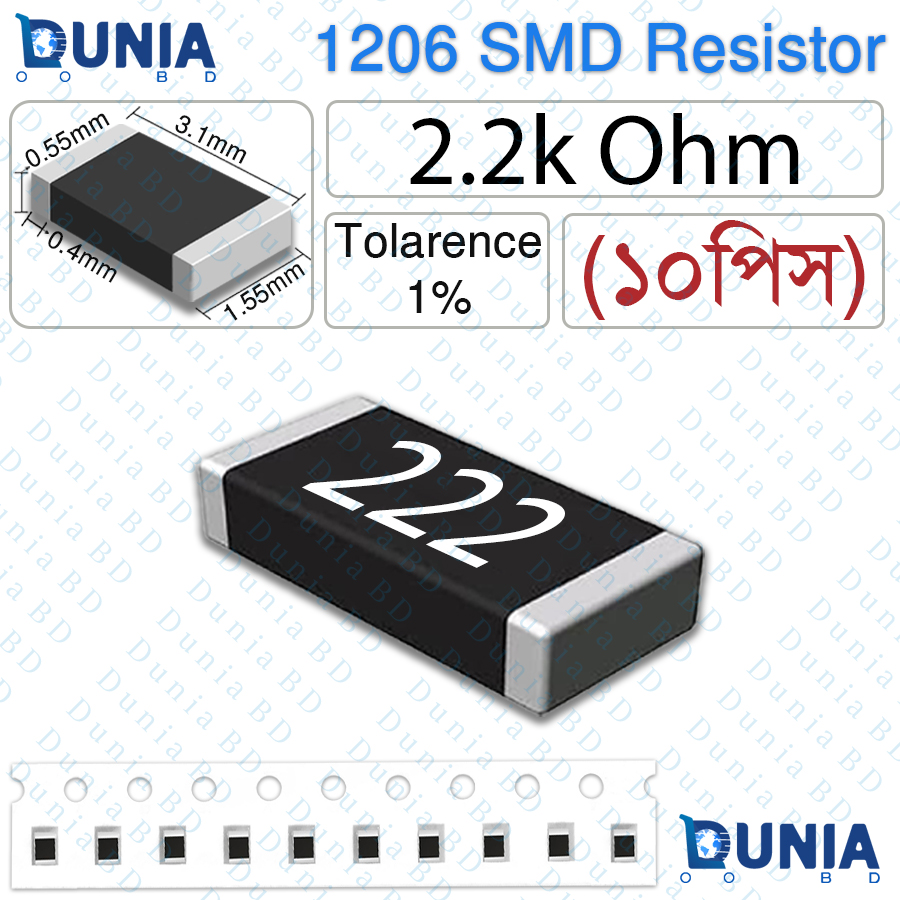

2.2K Ohm 222 1206 SMD Resistor 1/4W 1% Tolerance Precision Chip Resistor

Specifications

• 2.2K Ohm 222 1206 SMD Resistor 1/4W
• Resistance: 2.2K Ohms (2200 Ohms)
• Tolerance: ±1%
• Power Rating: 0.25W (1/4W)
• Package/Case: 1206 (3216 Metric)
• Technology: Thick Film
• Operating Temperature: -55°C ~ +155°C
• Temperature Coefficient: ±100ppm/°C typical
• Dimensions: 3.2mm x 1.6mm x 0.55mm (approx.)
• Mounting Type: Surface Mount
• Packaging: Reel or Cut Tape
• RoHS Status: Compliant

Features

• Resistance Value: 2.2K Ohms (2200 Ohms, 222 marking)
• Case Size: 1206 (3.2mm x 1.6mm)
• Power Rating: 1/4W (0.25W)
• Tolerance: ±1% high precision
• Thick film technology for excellent long-term stability
• Compact SMD footprint ideal for dense PCB layouts
• Wide operating temperature range: -55°C to +155°C
• RoHS compliant and lead-free
• Low noise, good surge capability, superior solderability
• The 2.2K Ohm 222 1206 SMD Resistor is a reliable, high-accuracy surface-mount component widely used in modern electronic designs. With 2,200 Ohms resistance and tight ±1% tolerance, it performs exceptionally well in voltage divider networks, pull-up and pull-down resistors for digital logic, I2C/SPI bus termination, sensor signal conditioning, op-amp feedback loops, and countless general-purpose applications.Rated for 1/4W power dissipation, it maintains stable operation even under moderate current conditions while keeping a low thermal footprint. The popular 1206 case size ensures compatibility with automated assembly lines and is a go-to choice in consumer electronics, IoT devices, industrial controls, battery management systems, Arduino/Raspberry Pi projects, and prototyping boards.
• Built with thick film technology, this resistor provides minimal drift over temperature and time, low excess noise, and robust performance in reflow soldering environments. The “222” marking is the standard 3-digit SMD code: 22 × 10² = 2,200 Ohms. Fully RoHS compliant and lead-free for environmentally friendly manufacturing.
• Whether you’re designing new circuits, repairing equipment, or stocking up for hobby projects, this 2.2KΩ 1% 1206 SMD resistor offers outstanding value, precision, and availability in bulk reels or small packs.

What is the price of 2.2K Ohm 222 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh?

The latest price of 2.2K Ohm 222 1206 SMD Resistor 1/4W in Bangladesh starts from Price: ৳21.00 taka for 10 Pcs Resistor. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 2.2K Ohm 222 1206 SMD Resistor 1/4W ±1% Tolerance in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get original 2.2K Ohm 222 1206 SMD Resistor 1/4W From Dunia.com.bd. We have few collection of latest Resistor to purchase. Order Electronics Component Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What does the 222 code mean on this SMD resistor?
   222 = 22 × 10² = 2,200 Ohms (2.2KΩ).
2. What is the power rating of this resistor?
   1/4W (0.25 watts).
3. Is the tolerance really ±1%?
   Yes, precision ±1% tolerance (much tighter than standard 5%).
4. What are the dimensions of the 1206 package?
   Approximately 3.2 mm × 1.6 mm × 0.55 mm.
5. Can it handle higher temperatures?
   Yes, standard operating range is -55°C to +155°C.
6. Is 2.2K a common value for pull-up resistors?
   Yes, very popular for I2C, buttons, and many microcontroller pull-ups.
7. What kind of technology is used?
   Thick film – balances cost, accuracy, and reliability very well.
8. How should I solder these 1206 resistors?
   Reflow oven, hot-air station, or fine-tip soldering iron for hand work.
9. Why pick 1206 instead of 0603 or 0805?
   Higher power handling (0.25W) and easier to hand-solder than smaller sizes.
10. Where can I source bulk quantities?
    DigiKey, Mouser, LCSC, Arrow, Element14, or local electronics distributors.
