1S 12-15A BMS Protection Board for Lifepo4 Battery

Specifications

• 1S 12-15A BMS Protection Board for Lifepo4 Battery is engineered exclusively for single-cell lithium iron phosphate setups.
• Overcharge voltage protection range: 3.6V to 3.75V ± 0.05V
• Over-discharge voltage protection range: 2.0V to 2.5V ± 0.05V
• Maximum continuous operating current: 12A to 15A
• Maximum peak instantaneous current: 20A to 25A
• Quiescent idle current: Less than 30uA
• Internal loop resistance: Less than 100mΩ
• Expected product lifetime: More than 30,000 hours Short circuit protection:
• High precision external short circuit detection with automatic delay recovery.
• Board physical dimensions: 35mm x 7.5mm
• Solder point designations: B+ (Battery positive), B- (Battery negative), P+ (Pack positive/charge/discharge), P- (Pack negative/charge/discharge)

Features

• Optimized high-accuracy voltage detection specifically tuned for Lifepo4 safety thresholds.
• Advanced multi-MOSFET layout provides stable and cool high-current continuous management.
• Slim, space-saving layout integrates easily into tight cylindrical 32140 custom packs.
• Complete hardware protection against overcharging, deep discharge, and immediate over-current spikes.
• Negligible idle power drainage preserves stored battery pack charge for extended periods.
• This industrial-grade 1S 12-15A BMS Protection Board is tailored precisely to secure high-capacity Lifepo4 32140 battery cells.
• Measuring a mere 35mm by 7.5mm, it delivers superior multi-MOS thermal dissipation and stable 15A continuous current throughput.
• The robust chip architecture ensures critical defense lines against cell overcharging, voltage over-discharge, and high-load short circuits.
• It is the definitive companion for upgrading DIY solar battery storage, clean energy backup power banks, and portable high-drain apparatuses.

What is the price of 1S 12-15A BMS Protection Board for Lifepo4 Battery in Bangladesh?

The latest price of 1S 12-15A BMS for Lifepo4 Battery in Bangladesh is Price: ৳110.00 taka for 1Pack of this product. You can buy this product at a better and cheaper price from our website and also you can visit our warehouse between work hours 10am to 8pm.

Buy 1S 12-15A BMS Protection Board for Lifepo4 Battery in Bangladesh from online at Dunia.com.bd.

In Bangladesh, you can get the original 1S 12-15A BMS Protection Board for Lifepo4 Battery From Dunia.com.bd . We have a few collections of latest Controller Module to purchase. Order Electronic Modules Online at our website Or Visit our warehouse to get your product at lowest price.

FAQ

1. What battery chemistry is this specific 1S BMS module intended for?
   This board is calibrated exclusively for 3.2V Lifepo4 cells, specifically the 32140 form factor cylindrical batteries.
2. What is the continuous current handling capacity of this hardware board?
   It manages a stable continuous current delivery ranging safely from 12A up to 15A max.
3. Does the circuit include automated safety recovery for short-circuit faults?
   Yes, it features automatic delay recovery short circuit protection when the external load fault is removed.
4. What are the exact structural physical dimensions of the board?
   The protection board measures a highly compact length of 35mm and a thin width of 7.5mm.
5. Can I safely connect this module to standard 18650 Li-ion batteries?
   No, Li-ion has different voltage thresholds; this is meant only for Lifepo4 lithium iron chemistry.
6. Where do I connect the positive lead of my Lifepo4 cell?
   The positive battery lead must be firmly soldered onto the dedicated circular B+ terminal pad.
7. What purpose does the P- solder terminal serve on the circuit?
   The P- pad acts as the common negative connection for your external charger and electrical load.

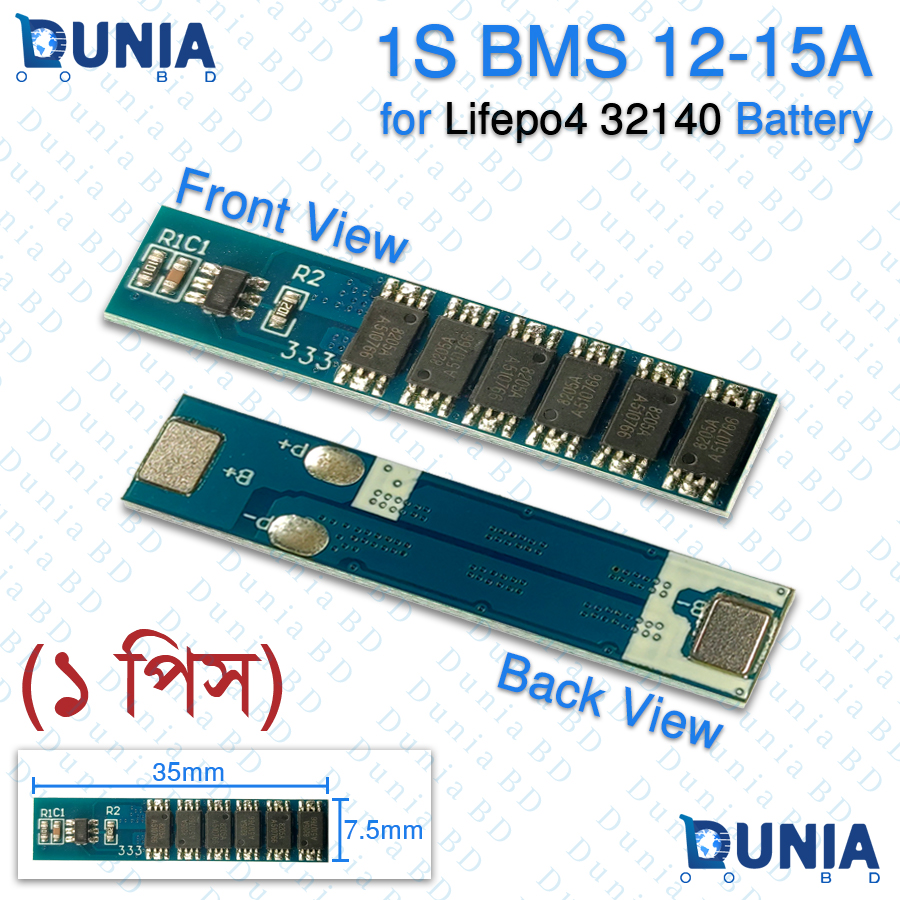

8. How many MOS switches are embedded on the top layout?
   The top view showcases six high-efficiency A510766 MOS transistors for optimized thermal current performance.
9. Is the installation process user-friendly for electronics hobbyists?
   Yes, it requires standard soldering tools to connect the battery cell directly to clearly labeled pads.
10. What is the standby current draw during inactive periods?
    The board consumes an extremely efficient quiescent current of under 30 microamperes while sitting idle.
